Gold's Gym GR 7000 GGBE6974.1 - Manual (Page 20)

20

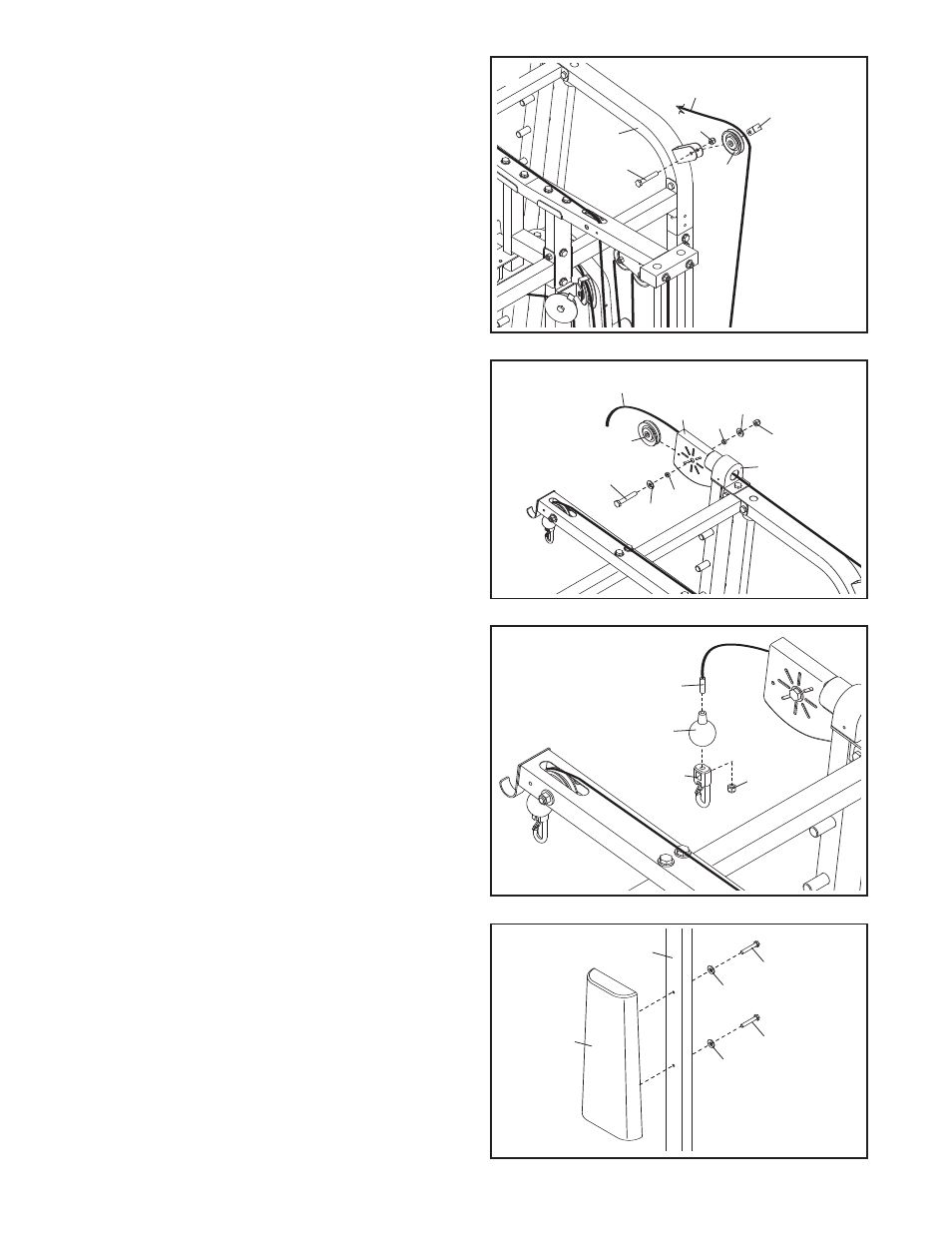

44. Route the Long Cable (54) through the Right
Upright (4) and a Swivel Arm (32). Then, route
the Cable over a 90mm Pulley (58). Attach the
Pulley inside the Swivel Arm with an M10 x 53mm
Button Bolt (147), two M10 Washers (84), two
6mm Spacers (75), and an M10 Nylon Locknut
(79).
45. Slide a Clip Cover (52) onto the Long Cable (54).
Hold an M6 Nylon Locknut (80) inside of a Clip
(53), and insert the Long Cable (54) into the Clip
and the Nylon Locknut. Hold the crimp on the
Cable with a pair of pliers. Insert a screwdriver
between the Nylon Locknut and the Clip. Rotate
the screwdriver, the Clip, and the Nylon Locknut
together until two threads of the Cable show past
the Nylon Locknut.
Slide the Clip Cover (52) over the Clip (53).
45
54
52
80 53
147
84
75
75
44
84
79
58
54
32
4
43
54
58
13
104
63
79
43. Route the Long Cable (54) over a 90mm Pulley
(58). Attach the Pulley and a Small Cable Trap
(63) to the right Side Top Frame (13) with an M10
x 49mm Button Bolt (104) and an M10 Nylon
Locknut (79).
Make sure that the Small Cable
Trap is oriented to hold the Cable in the
groove of the Pulley.
29
86
89
46
8
86
89
46. Attach the Butterfly Backrest (29) to the Backrest
Upright (8) with two M6 x 64mm Screws (89) and
two M6 Washers (86).
