17

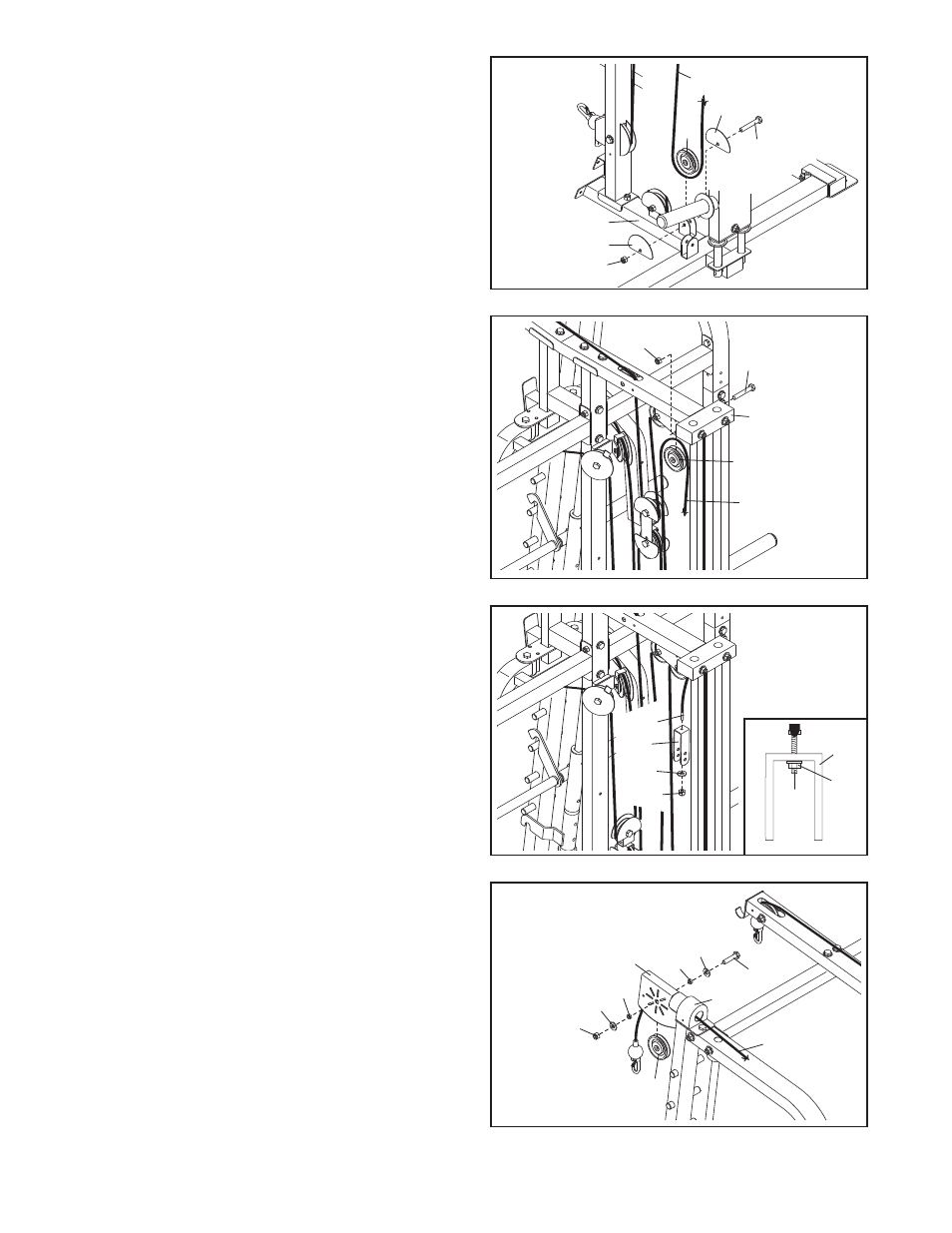

31. Route the Low Cable (72) under a 90mm Pulley
(58). Attach the Pulley and two Half Finger
Guards (40) to the Center Base (2) with an M10 x
46mm Button Bolt (100) and an M10 Nylon
Locknut (79).
32. Wrap the Low Cable (72) over a 90mm Pulley
(58). Attach the Pulley to the Top Frame (16) with
an M10 x 42mm Button Bolt (96) and an M10
Nylon Locknut (79).
31
72
40
40
58
2
79
100
79
96
16
72
32
58
34. Locate the Long Cable (54). Route the Cable
over a 90mm Pulley (58), and up through a
Swivel Arm (32) and the Left Upright (3). Attach
the Pulley inside the Swivel Arm with an M10 x
53mm Button Bolt (147), two M10 Washers (84),
two 6mm Spacers (75), and an M10 Nylon
Locknut (79).
79
34
84
75
84
32
3
58
54
147
75
33. Attach the Low Cable (72) to the “U”-bracket (47)
with an M6 Washer (86) and an M6 Nylon
Locknut (80).
See the inset drawing. Do not
overtighten the Nylon Locknut; it should be
threaded onto the end of the Cable so that
only two threads are showing below the Nylon
Locknut.
33
72
47
86
80 72
45
47
