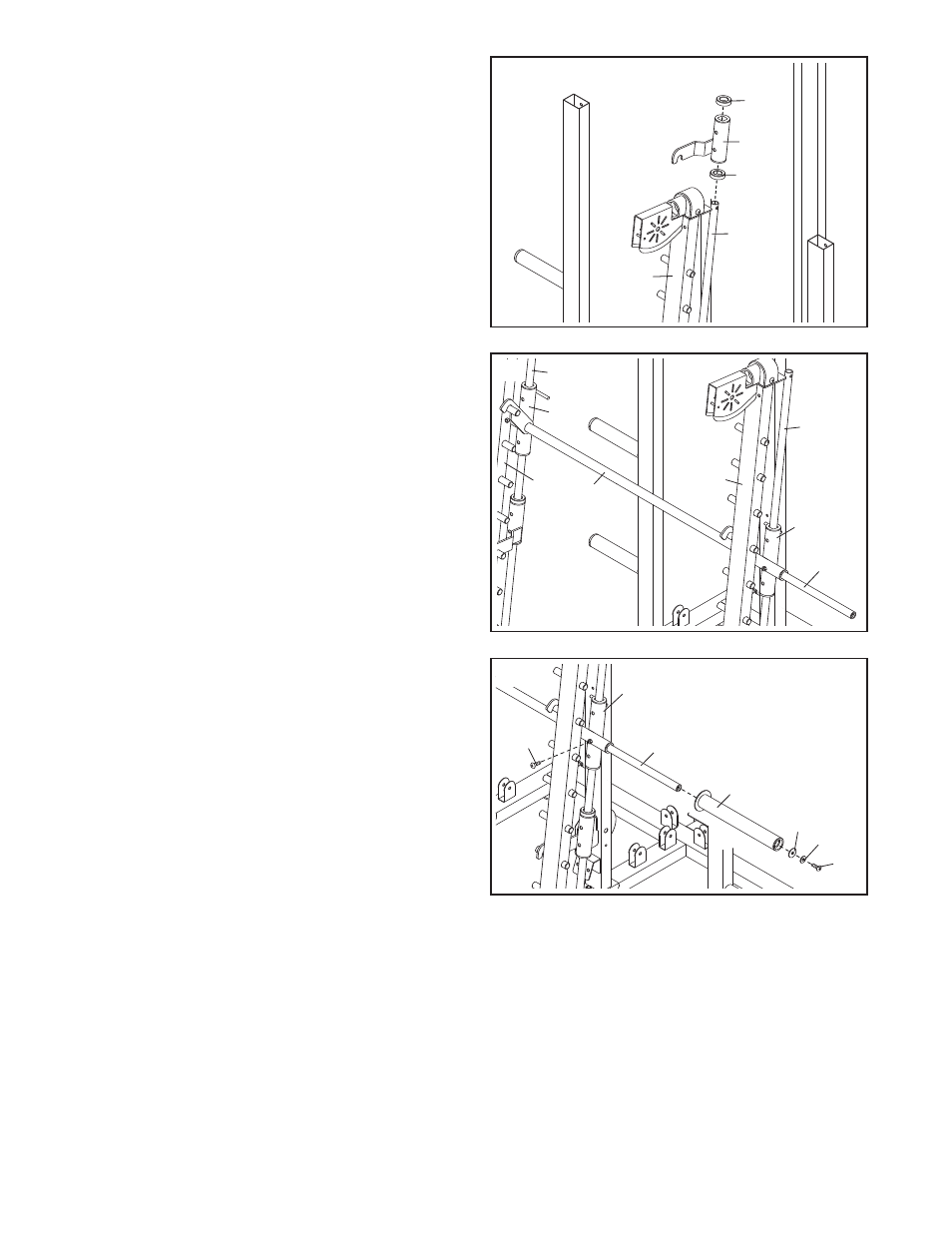

6. Orient the Left Spotter (24) as shown. Slide the
Left Spotter and two Guide Bumpers (27) onto
the left Guide Rod (5). Then, engage the Left
Spotter onto the Left Upright (3).
Repeat this step with the Right Spotter (not
shown) and the right Guide Rod (not shown).
8. Attach a Barbell Adapter (22) to one end of the
Weight Bar (17) with an M10 x 25mm Button
Screw (98), an M10 Split Washer (93), and an
M10 Large Washer (76).
Repeat this step on the
other end of the Weight Bar.
Tighten an M8 x 20mm Hex Screw (21) into the
Left Guide (20).
Repeat this step with the Right
Guide (not shown).
7. Slide the Right Guide (19) and the Left Guide
(20) onto the Guide Rods (5).
Slide the Weight Bar (17) through the Left Guide
(20), the Locking Bar (18), and the Right Guide
(19). Engage the Locking Bar onto the Uprights
(3, 4).
27
6
24
5
3
27
21
20
17
8
22
76
93
98
7
19
18
20
17
5
3
4
5
