Page 5
Crathco
®
Post Mix Beverage Dispensers
Page 5
Installation (cont.)
Specifications:
PM45-B
PM4-B
OPERATING AND ADJUSTMENTS
Explanation of terms
All descriptions related to dispensing heads, dispensing buttons,
pump motors such as: push button #1, dispensing head #2, pump
motor #3 etc. are used in relation to the front of the machine. This
relates also to all components inside of the machine that are
symmetrically positioned. (See Figure C)
For example:
Push button #1 - Far left positioned dispensing push button.
Push button #4 - Far right positioned dispensing push button.
Dispensing head #3 - All components involved when dispensing
caused by depressed push button #3.
Pump motor #4 - Pump motor that works when push button #4 was depressed and is positioned inside the
machine in line with push
button.
Brix Setup
If initial concentrate brix is 60 and required mixing ratio is 6+1/6:1 (6 ounces water to one part concentrate),
then brix of ready to drink mixture of a concentrate and water should be 10.
To measure brix level, a refractometer is used to show sucrose content in a drink by measuring change of the light
diffraction in the water caused by change of viscosity due to sucrose content.
The correct ratio is achieved by controlling water and a concentrate flow to the mixing device, in this case mixing
chamber. Brix on each dispensing head is preset in the factory. In the field, the brix needs to be fine-tuned to the
POWER SUPPLY:
220 VAC 50 Hz
115/60Hz
COMPRESSOR:
HP: 1/4, (630 Kcal, 2500 BTUH)
REFRIGERANT:
R134a 260 grams/9.1 oz.
DESIGN LOW PRESSURE:
Max. 9.5 BAR; 140 PSIG
DESIGN HIGH PRESSURE:
Max. 16.3 BAR; 240 PSIG
SYSTEM TYPE:
CAPILLARY TUBE, HERMETIC
IDLE POWER CONSUMPTION
.5A
.8A
RUN POWER CONSUMPTION
4A, 5A (MAX)
7A, 8A (MAX)
FUSE SIZE
6 A Slow Blow Controller
DISPENSING RATIO
50 ML/SEC
SUPPLY WATER PRESSURE
2 - 2.7 BAR; 29-40 PSIG
WORKING AMBIENT TEMPERATURE
15.5
°
C - 32.2
°
C 60-90ÞF(guaranteed performance)
PRODUCT STORAGE CAPACITY
NOM. 4 LITERS (FOUR 1L TETRAPACK)

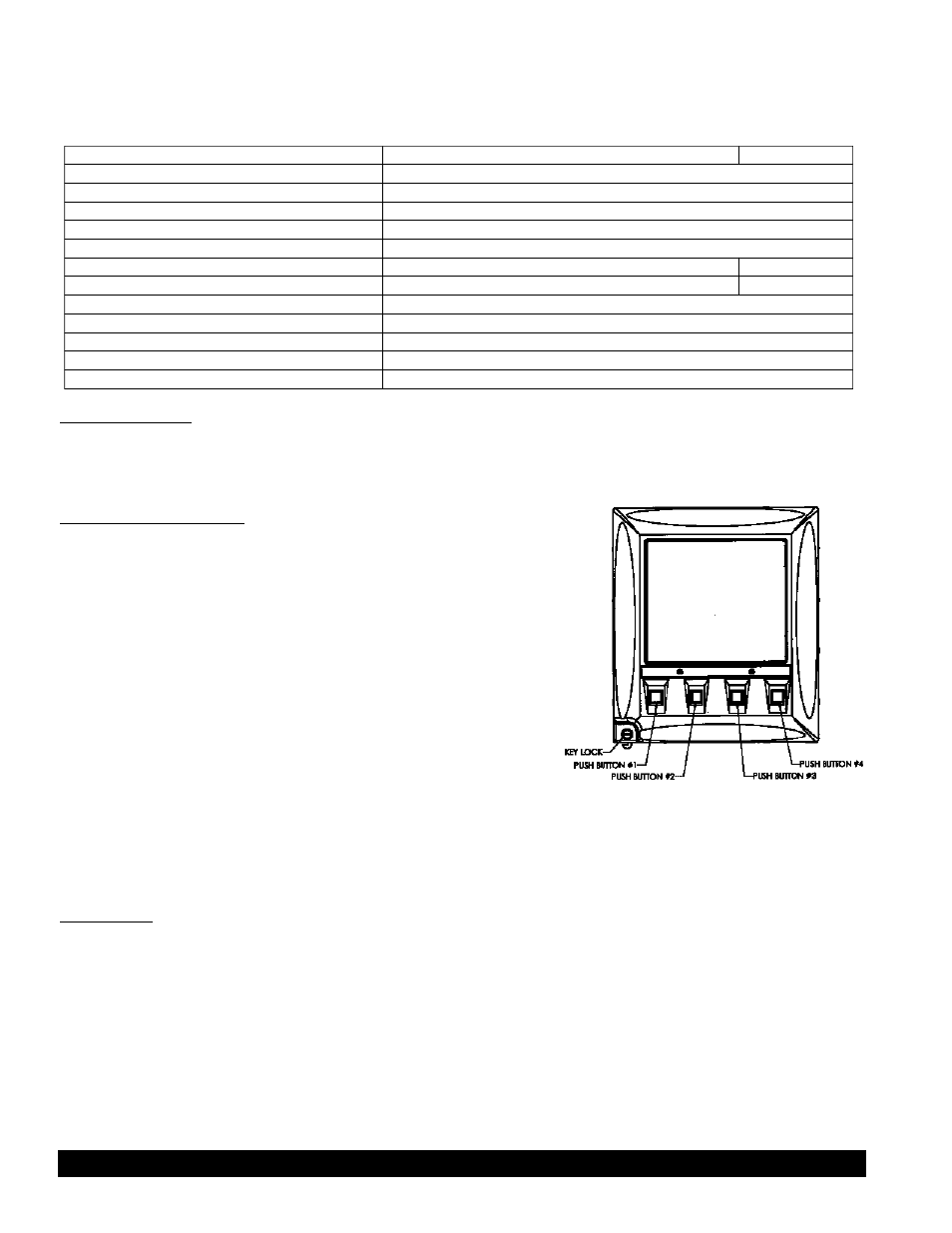

(Figure C)
