Grindmaster PM45-B - Manual (Page 23)

Crathco
®
Post Mix Beverage Page 23
ITEM P/N DESCRIPTION ITEM P/N DESCRIPTION
1 9128 BEARING, HINGE 9 9528 STARTER
2 9167 KEYED DOOR LOCK 10 9529 HARNESS, LIGHT KIT (NOT SHOWN)
3 9173 FEATHER FASTNER-FASTEX, TRUSSHEAD 11 9800 GASKET DOOR, PVC
4 9323 PANEL, GASKET RETAINING 12 9807 MERCHANDISER, DOOR
5 9511 HARNESS, DAISY JUMPER (NOT SHOWN) 13 9809 COVER PLEXI, GRAPHIC
6 9524 LAMP, F8T5 FLUORESCENT 14 9821 GRAPHIC
7 9525 HOLDER, MINI-BI PIN 15 9411 SCREW, #8 X 1/2 HEX HD SELF DRILL ZINC
8 9527 SWITCH, DISPENSING

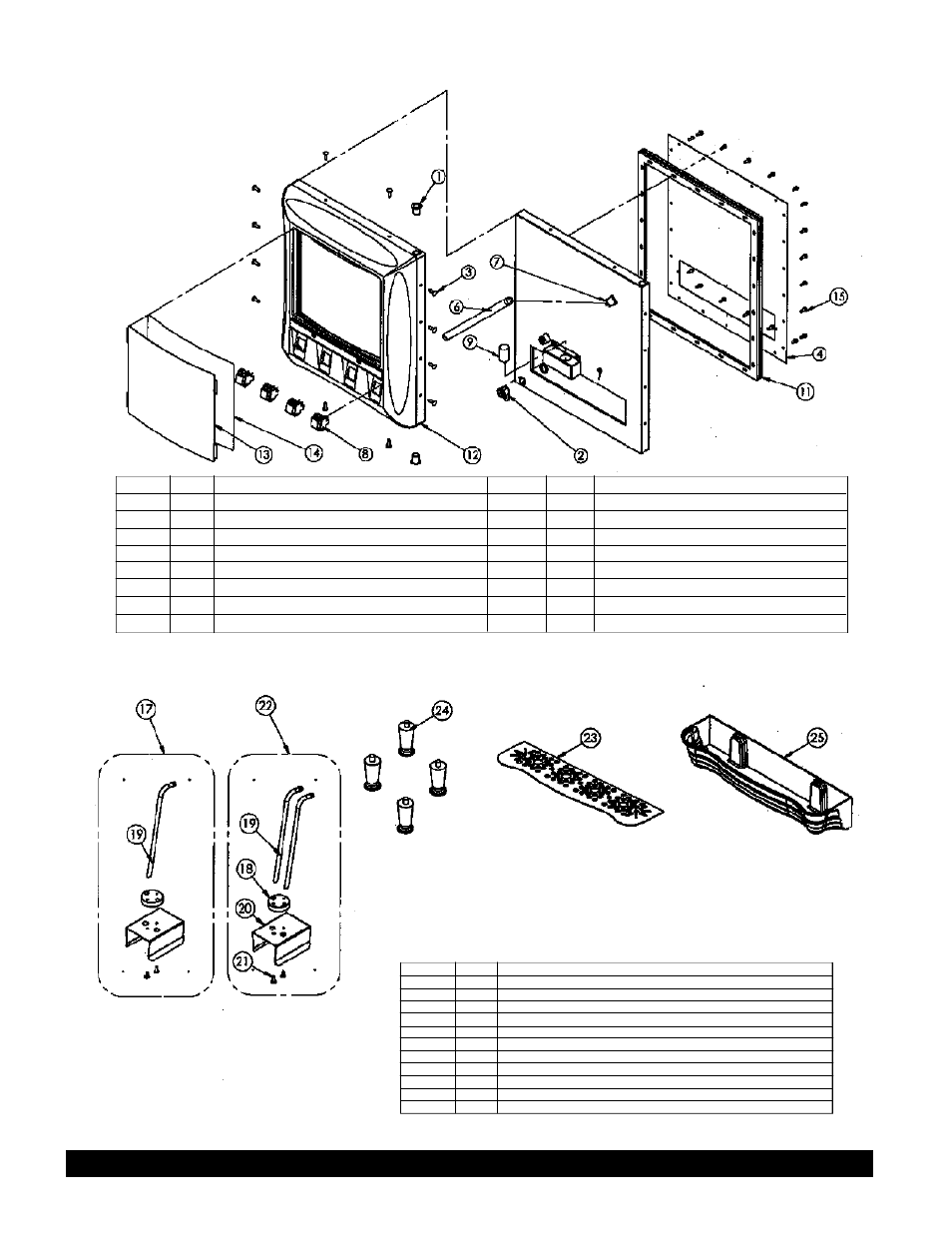

MERCHANDISER EXPLODED VIEW
ACCESSORY KIT EXPLODED VIEW
ITEM P/N DESCRIPTION
16 9170 MANUAL (NOT SHOWN) FRENCH
9408 MANUAL (NOT SHOWN) ENGLISH
17 9211 PICK UP TUBE ASSEMBLY, SYRUP
18 9812 HOLDER, DUAL PICK UP TUBE
19 9106 PICK UP TUBE CONCENTRATE
20 9326 BRACKET, PICK-UP TUBE
21 0069 SCREW, 8-32 X 1/2 PH TR HD TYPE F 410 SS
22 9216 PICK UP TUBE ASSEMBLY, JUICE
23 9325 GRILL, DRIP PAN
24 9192 LEG, 2 1/2" CHROME
