Page 18 Crathco
®
Post Mix Beverage Dispensers
ITEM P/N DESCRIPTION
1 1828 GROMET, COMPRESSOR 3250
2 1830 WASHER, COMPRESSOR
3 1831 CLIP, COMPRESSOR
4 9506 VALVE, INLET 2.2 GPM 24VDC
5 9517 TRANSFORMER 220VAC TO 28VAC, 150VA
9532 TRANSFORMER 115VAC TO 28VAC
6 3250 COMPRESSOR 240/220V 50 Hz
3247 COMPRESSOR 115V/60Hz
7 3371 CONDENSER
8 9521 BALLAST, LAMP F8T5 P/N 61118
8218 BALLAST, 120V
9 9522 RELAY, 12VDC COIL
10 9205 CONTROLLER ASSEMBLY
11 1000 SILENCER, FAN BLADE
12 1459 CONDENSER FAN BLADE
13 1584 FAN MOTOR 220V
1336 FAN MOTOR 115V
14 0055 NUT, FAN MOUNTING
15 9702 DRIER, SPORLAN C-03S
16 0057 NUT KEPS, 8-32
17 3370 BRACKET, CONDENSER FAN
NOTES:
1) ALL HARNESS HOOK UP LOCATIONS
ARE DETAILED IN WIRING DIAGRAM P/N 9165
ITEM P/N DESCRIPTION
18 9411 SCREW, #8 X 1/2 HEX HD SELF DRILL ZINC
19 9137 SCREW, 8-32 X 3/8 TAPTITE II SS BLACK
20 1783 POWER CORD, 1.5 M (NOT SHOWN) 220V
1072 POWER CORD 18-3 115V
21 9503 HARNESS, TRANSFORMER TO CONTROLLER 28 VAC (NOT SHOWN; SEE NOTE 1)
22 9507 HARNESS, COMPRESSOR RELAY COIL (NOT SHOWN; SEE NOTE 1)
23 9508 HARNESS, COOLING FAN (NOT SHOWN; SEE NOTE 1)
24 9509 HARNESS, FILL VALVE (NOT SHOWN; SEE NOTE 1)
25 9510 HARNESS, DISPENSE SWITCH (NOT SHOWN; SEE NOTE 1)
26 9512 HARNESS, DISPENSING CABINET (NOT SHOWN; SEE NOTE 1)
27 9514 HARNESS, TRANSFORMER TO TERMINAL BLOCK (NOT SHOWN; SEE NOTE 1)
28 9504 HARNESS, FLUSH SWITCH (NOT SHOWN; SEE NOTE 1)
29 9516 LEADS, LIGHT ASSEMBLY (NOT SHOWN; SEE NOTE 1)
30 9515 HARNESS, TERM BLOCK TO COMP. AND RELAY (NOT SHOWN; SEE NOTE 1)
31 8213 SWITCH, DOUBLE POLE ON/OFF
32 9166 GROMMET, SNAP IN HEYCO
33 9530 HARNESS, PWR SWITCH TO PWR CORD(NOT SHOWN; SEE NOTE1)

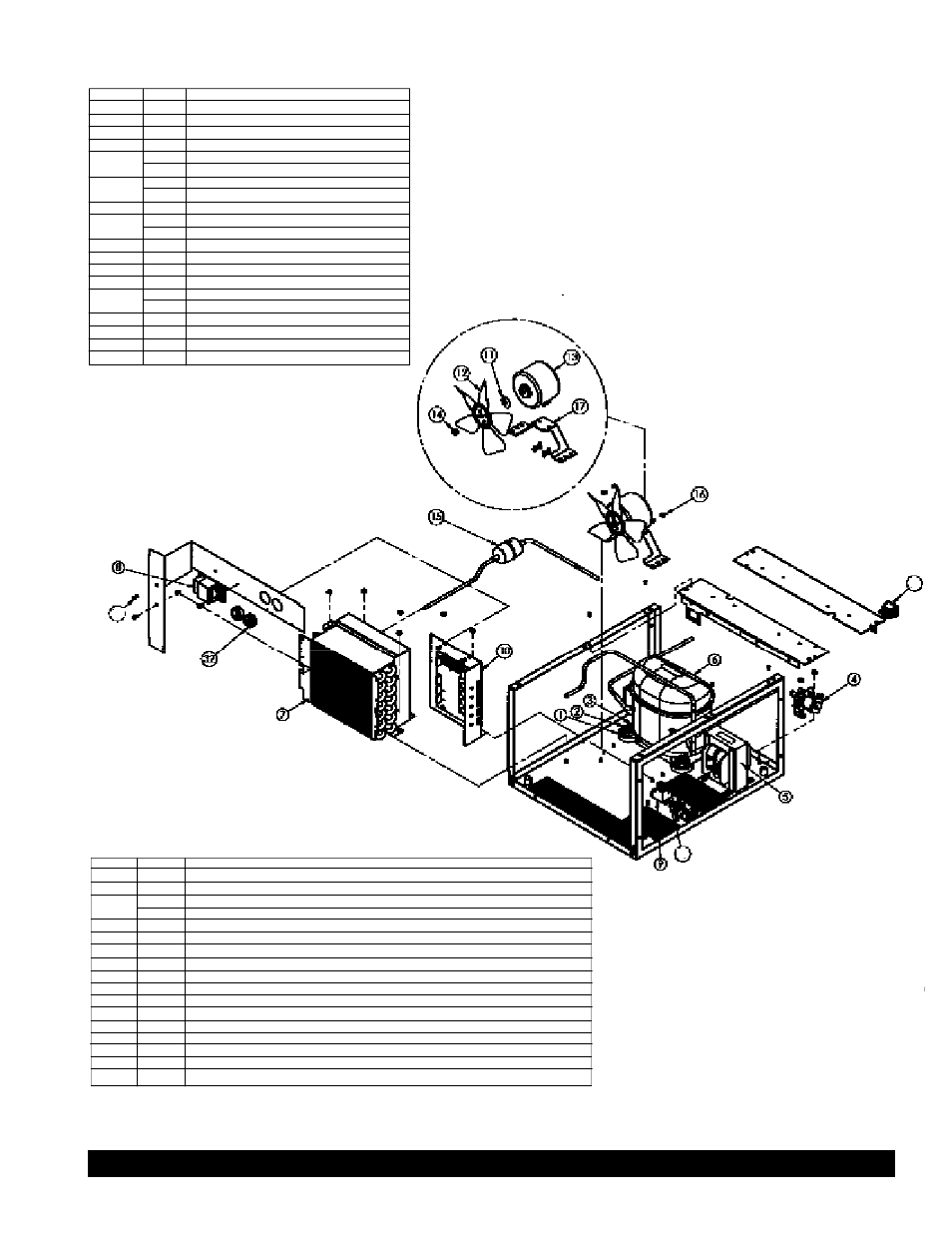

CONDENSING UNIT EXPLODED VIEW
19
18
31
