Grindmaster PM45-B - Manual (Page 21)

Crathco
®
Post Mix Beverage Page 21

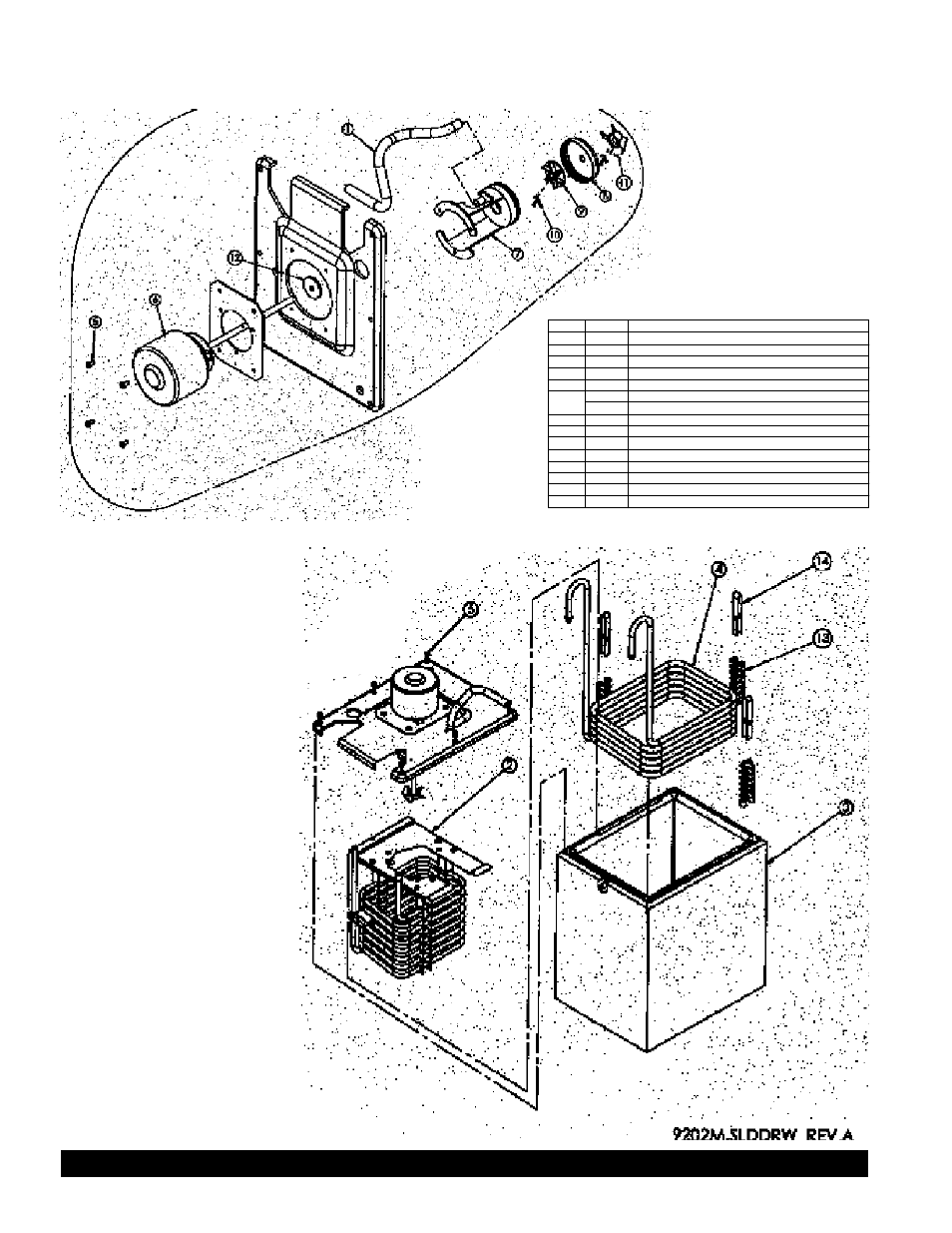

EVAPORATOR ASSEMBLY/CABINET COOLING PUMP EXPLODED VIEW
ITEM P/N DESCRIPTION
1 9413 TUBING, 3/8 D X 1/16 WALL TYGON
2 9203 EVAPORATOR ASSEMBLY, ICE-BANK
3 9225 TANK FOAMED, ICE-BANK
4 9701 COIL, WATER COOLING HEAT EXCHANGER
5 9411 SCREW, 8-32 X 3/8 TAPTITE II SS BLACK
6 9500 MOTOR AGITATOR 220V 50Hz
9531 MOTOR AGITATOR 115V/60Hz
7 9818 HOUSING, WATER PUMP
8 9819 CLOSURE, WATER PUMP
9 9817 IMPELLER
10 9127 P/N COTTER, .062 DA X 1"
11 9131 PROPELLOR
12 9404 WASHER, 1.25 OD X .310 ID X .120 THK NYLON
13 9318 BRKT, SPACER WATER LINE
14 9327 STRIP, COIL RETAINING
