Grindmaster PM45-B - Manual (Page 22)

Page 22 Crathco
®
Post Mix Beverage Dispensers
ITEM P/N DESCRIPTION
1 9505 FAN, COOLING 20-27 VDC
2 9718 COIL, CABINET COOLING
3 9813 SHROUD, CABINET COOLING
4 9137 SCREW, 8-32 X 3/8 TAPTITE II SS BLACK
5 9519 HARNESS, COOLING FAN EXTENSION
6 9138 SCREW, #8 X 1 1/2 PH PN HD ZINC PL
7 9109 TUBING, 3/8 ID X 1/16 WALL TYGON
8 9140 SCREW, 8-32 X 1/2 PH TR HD TY PE F 410 SS
9 9217 CABINET COOLING SYSTEM
10 9313 BRACKET, RETAINER
11 9815 BUSHING
12 9411 SCREW, #8 X 1/2 HEX HD SELF DRILL

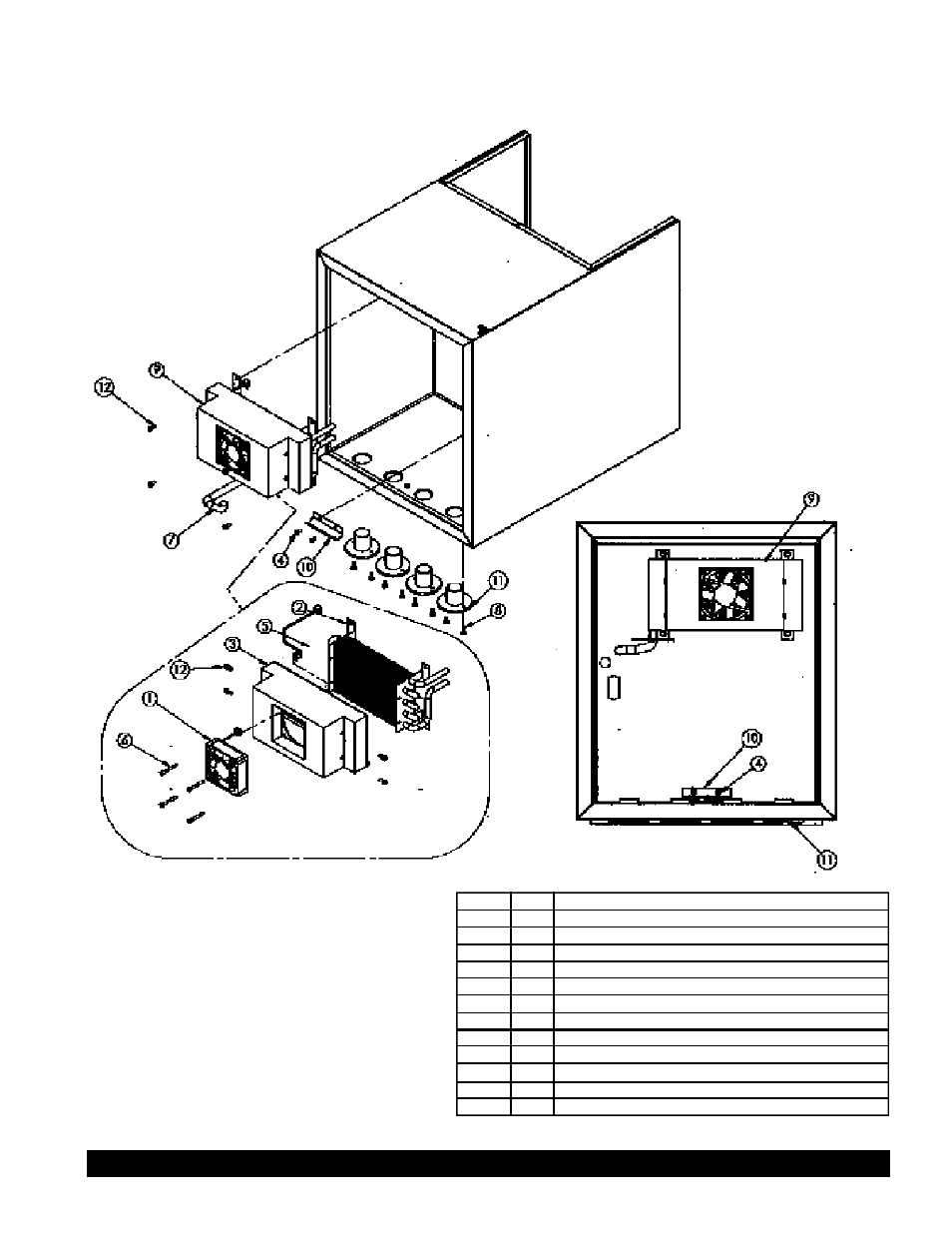

UPPER CABINET EXPLODED VIEW
