Grindmaster PM45-B - Manual (Page 20)

Page 20 Crathco
®
Post Mix Beverage Dispensers
ITEM P/N DESCRIPTION
1 9137 SCREW, 8-32 X 3/8 TAPTITE II SS BLACK
2 9109 TUBING, 3/8 D X 1/16 WALL TY GON B-44-4X
3 9153 TUBING, 3/8 D INNERBRAIDED PVC
4 9201 CONDENSING UNIT ASSEMBLY 220V
9227 CONDENSING UNIT ASSEMBLY 115V
5 9202 ICE-BANK ASSEMBLY 220V
9228 ICE-BANK ASSEMBLY 115V
6 9703 ACCUMULATOR, 1 3/16 OD X 8"

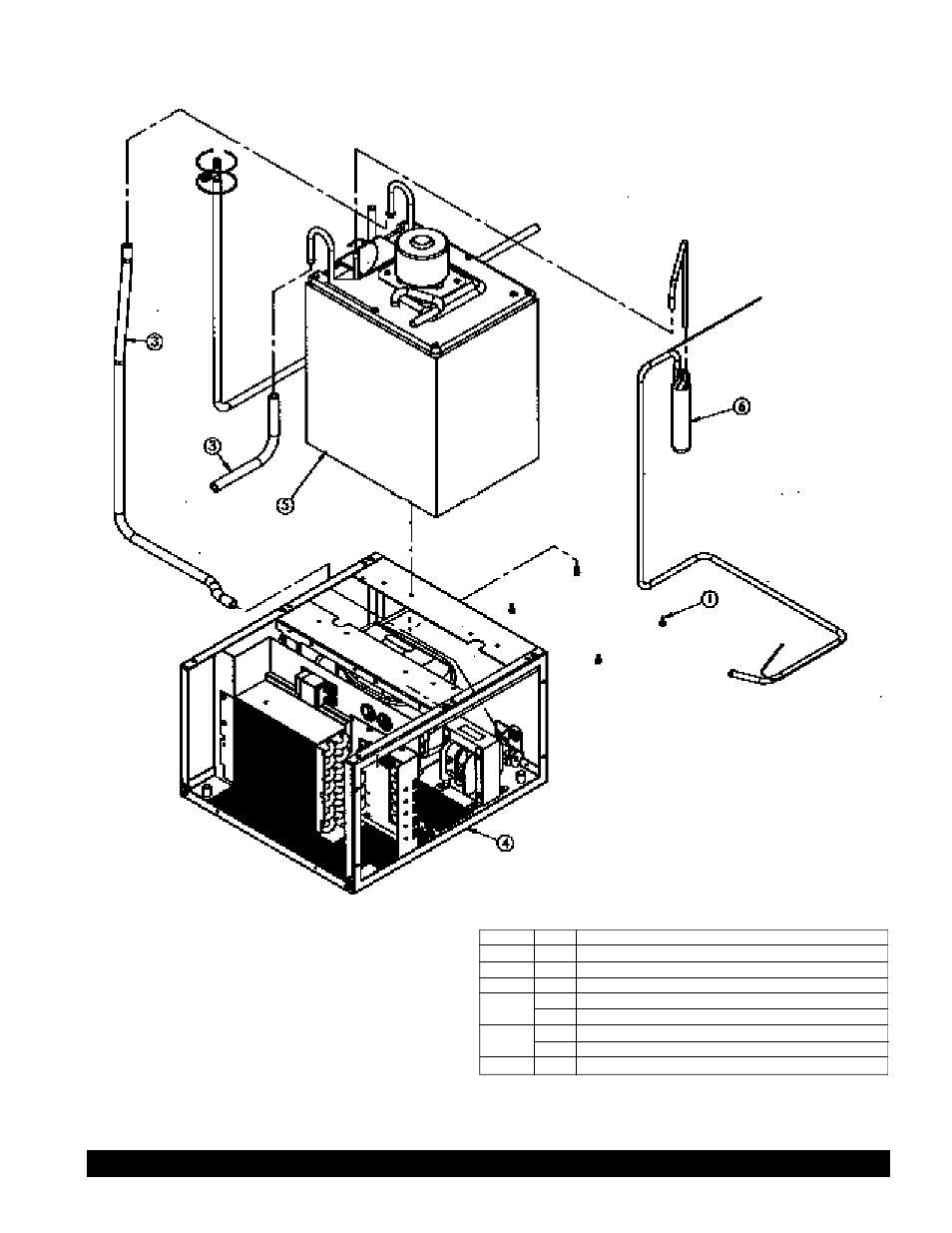

REFRIGERATION SYSTEM EXPLODED VIEW
