Displacement Pump
311046J
17
5.
F
IG

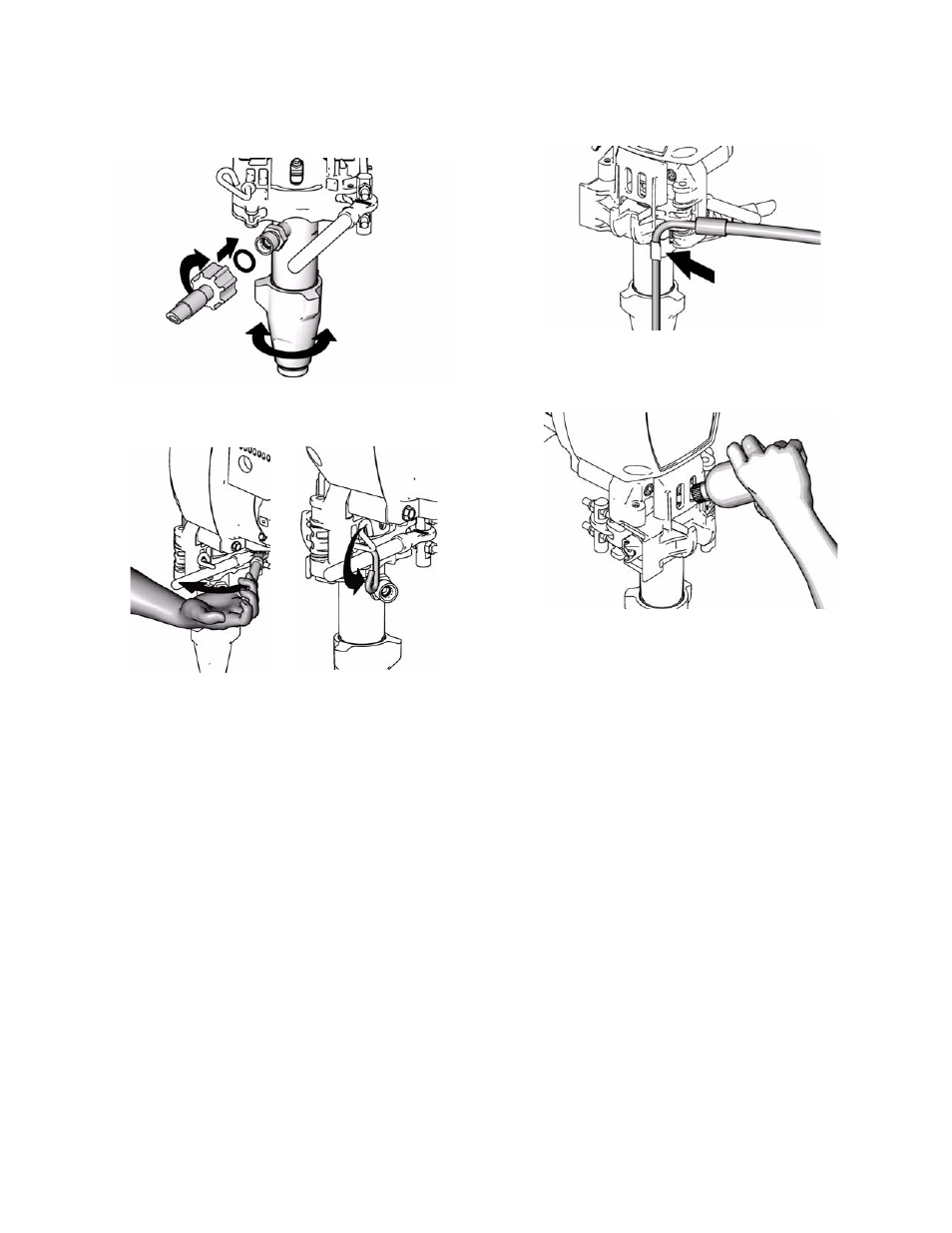

. 22. Rotate pump to align with material hose. Connect
material hose and hand tighten to 70 in-lb
F
IG
. 22
6.
F
IG
. 23. Tighten latch and rotate latch lock into locked position.
F
IG
. 23
7.
F
IG
. 24. Attach drain hose to sprayer.
F
IG
. 24
8.
F
IG
. 25. Fill pump with Graco TSL until fluid flows onto top
of seal.
F
IG
. 25
