Pressure Control
12 311046J
Pressure Control
On/Off Switch
Removal

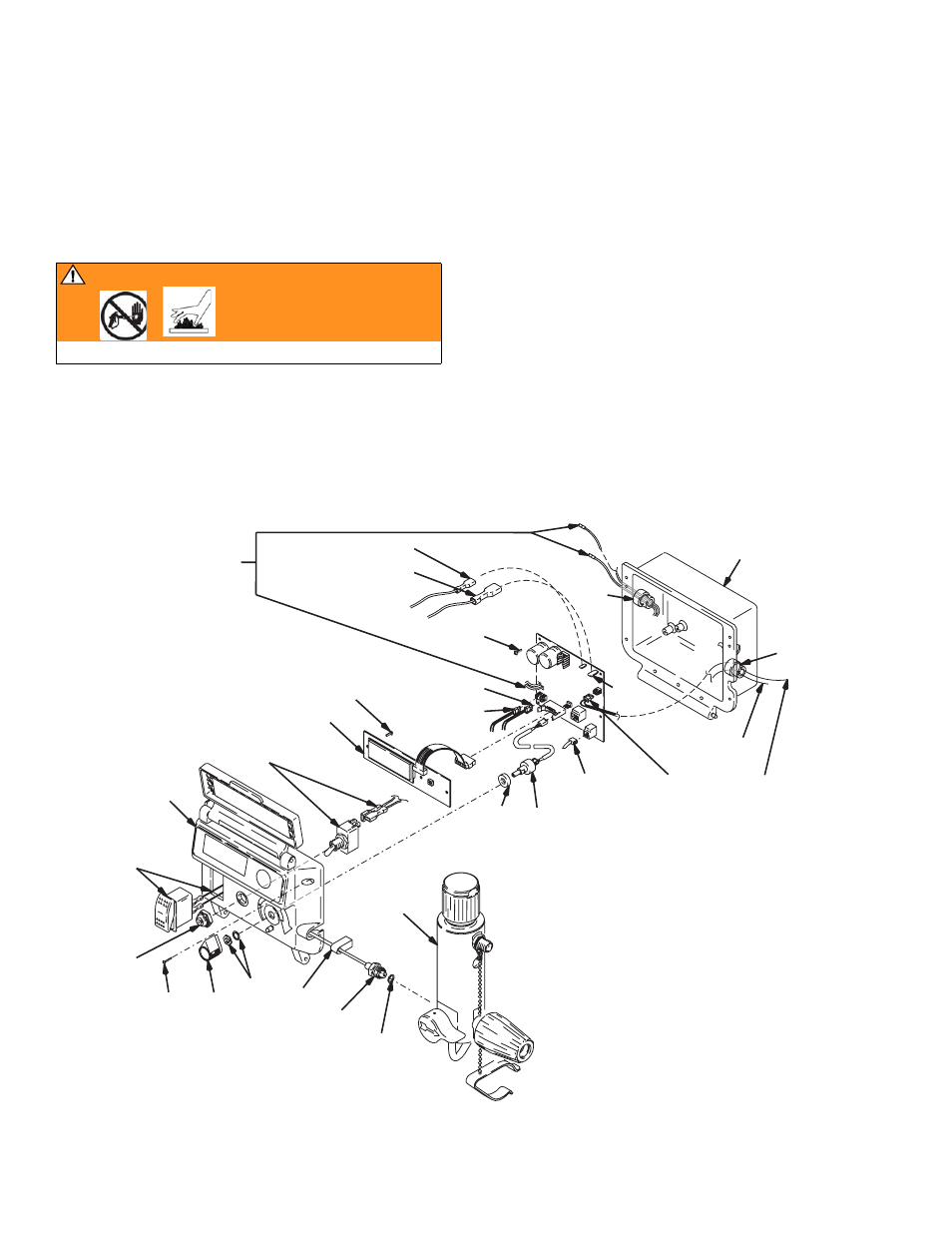

1. F IG . 10. Remove two screws (71) and swing down
cover (169a).
2. Disconnect ON/OFF switch (169f) connector from control
board.
3. Press in on two retaining tabs on each side of ON/OFF
switch (169f) and remove switch from cover.
Installation
1. Install new ON/OFF switch (169f) so tabs of switch snap
into place on inside of cover.
2. Connect ON/OFF switch connector to control board.
3. Swing up cover (169a) and secure with two screws (71).
F IG . 10
WARNING
Read Skin Injection Hazard, page 3; Burn Hazard, page 4
#,54#(
#,54#(
F
A
B
J
TIA
R
4/
#,54#(
'!,,/.
C
D
M
E
G
H
D
C
A
F
G
