Gateway GT704 User Manual
Page 42
38
Actiontec USB/Ethernet DSL Gateway User Manual
39
Chapter 4 Using Advanced Setup
☞
Note: Contact the
ISP
if unsure of the proper configuration.
Specify a Static IP Address
Select this option if the
ISP
service is configured to use
RFC
1483 Bridged or
Routed using a Static
IP
Address. Enter the
IP
Address, Subnet Mask, and Default
Gateway Address provided by the
ISP

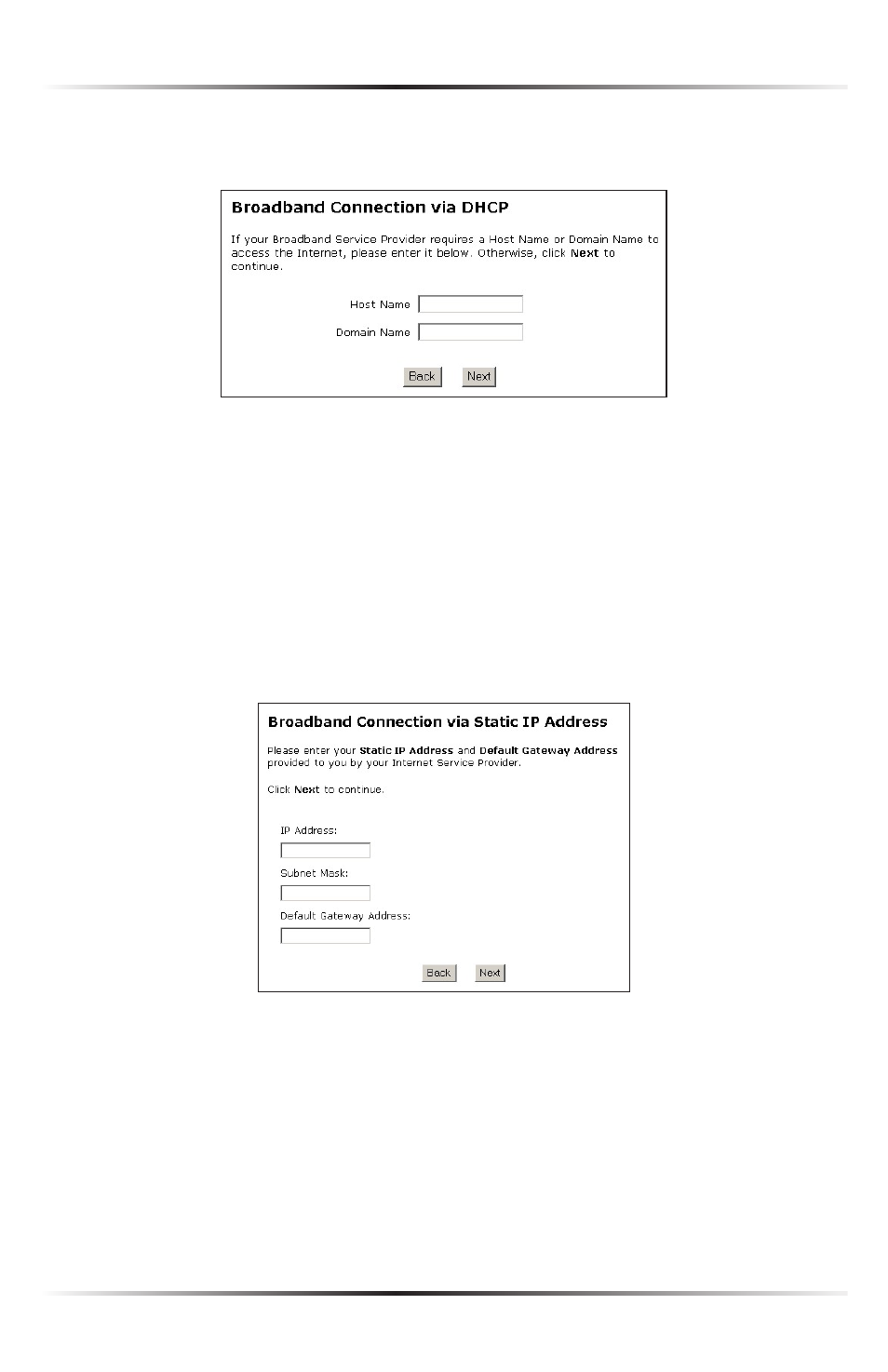

in the “Broadband Connection via Static
IP
Address” screen, which causes the
IP
address and routing information to termi-
nate at the Gateway, as opposed to the
IP
address and routing information being
bridged to terminate at the computer. This allows the use of the router capabilities
for the Local Area Network (
LAN
).
☞
Note: Contact the
ISP
if unsure of the proper configuration.
