Accessories
Fiber Optic Cables
Fiber Optic Cable Assembly
For connection between the controller and flow meter.
PART NO. LENGTH
224–690 6 ft (1.8 m)
224–691 15 ft (5 m)
224–692 25 ft (8 m)
224–693 36 ft (11 m)
224–694 50 ft (15 m)
224–695 75 ft (23 m)
224–696 100 ft (30.5 m)
Fiber Optic Cable Extender
For connection between the flow meter and bulkhead
connector or between two bulkhead connectors.
PART NO. LENGTH
224–670 6 ft (1.8 m)
224–671 15 ft (5 m)
224–672 25 ft (8 m)
224–673 36 ft (11 m)
224–674 50 ft (15 m)
224–675 75 ft (23 m)
224–676 100 ft (30.5 m)
Bulkhead Connector 224–261
For connection between two fiber optic cables.
Grounding Clamp and Wire 222–011
12 ga, 25 ft (7.6 m) wire
Fluid Manifold
Contact your local Graco representative to order
proper manifold.

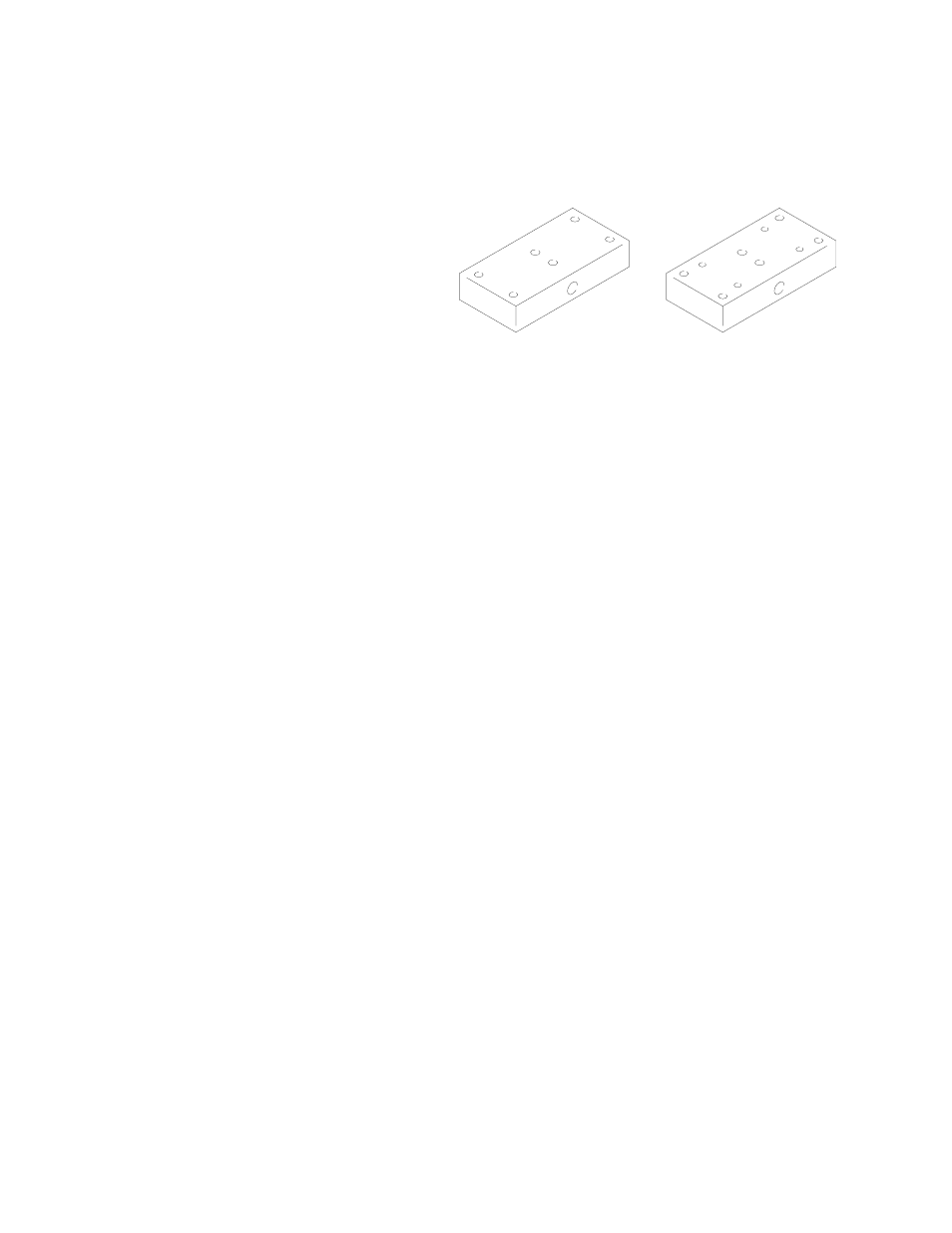

Part No. 223–869 Part No. 624–708
0186 0187
Fluid Filter 223–160
5000 psi (35.0 MPa, 350 bar) Maximum Working Pressure
Stainless steel bowl and polyethylene support.
NOTE: This filter has a 60 mesh screen. To prevent
premature flow meter wear, use a 100 mesh screen.
Order Part No. 167–026 when you order the filter.
100 Mesh Filter Screen 167–026
For use with Fluid Filter 223–160.
Bleed-type Master Air Valve 107–142
300 psi (2.1 MPa, 21 bar) Maximum Working Pressure
Relieves air trapped in the air line between the pump
air inlet and this valve when closed. 1/2” npt
