Service
Fig. 6 Fig. 7
Removing Bearings Installing Bearings
ЙЙ
ЙЙ
ЙЙ
ЙЙ
ЙЙ
ЙЙ
0968
ЙЙЙ
ЙЙЙ
ЙЙЙ
ЙЙЙ
ЙЙЙ
ЙЙЙ
0969

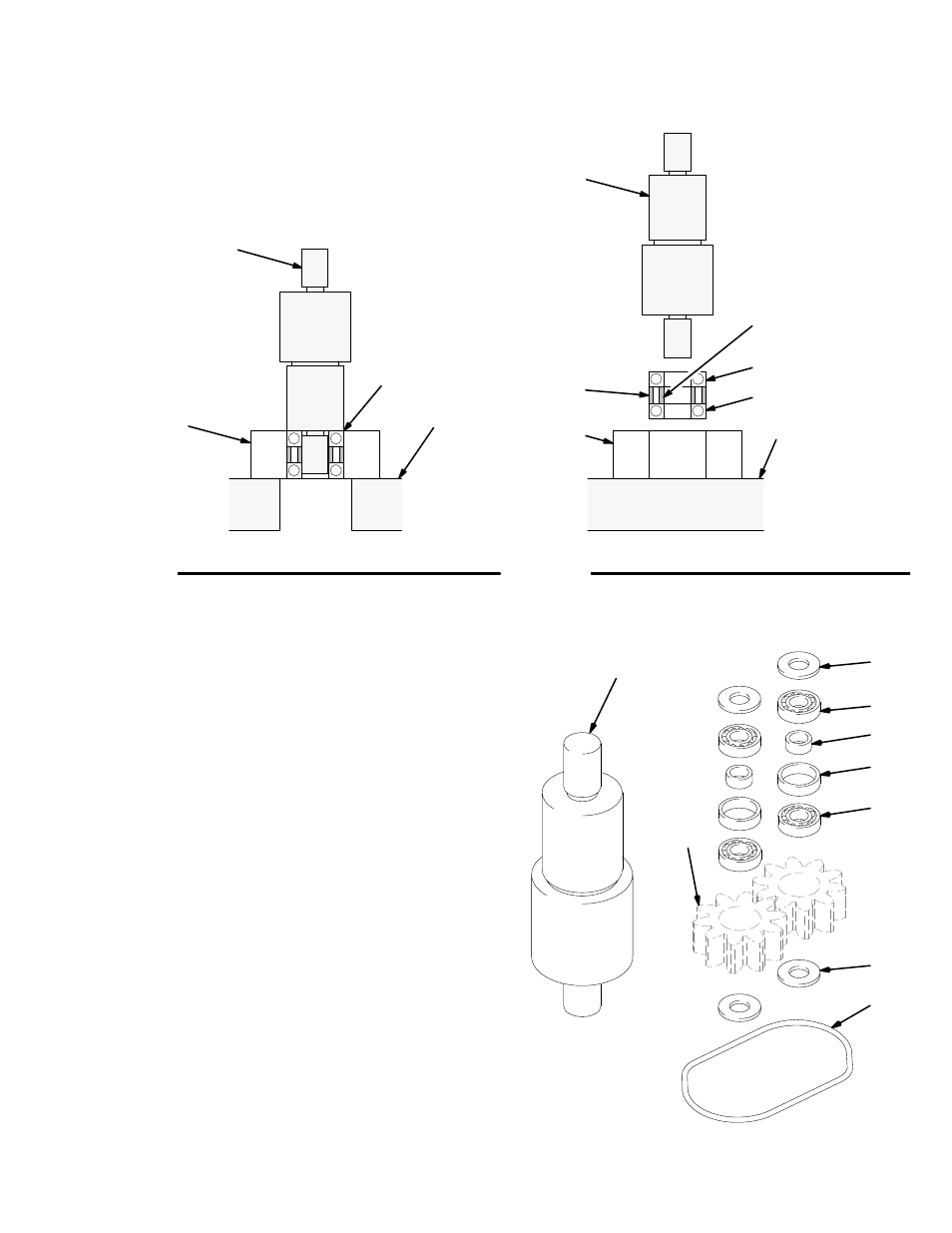

KEY
L Gear Assembly
T* Bearing Tool
V* Bearings and Spacers
W Support
*T
V
W L
KEY
L Gear
P* Bearing
R* Inner Spacer
S* Outer Spacer
T* Bearing Tool
U
Flat Surface
*T
*S
L
R*
P*
P*
U
Parts
Bearing Repair Kit 223–276
For Meter Model 235–402,
with 0.1 cc per tooth fluid volume flow
Bearing Repair Kit 223–277
For Meter Model 235–403,
with 0.4 cc per tooth fluid volume flow
Bearing Repair Kits include the following parts:
Ref.
Letter Description
Qty.
C O-RINGS, (not shown, See Fig. 3) 2 or 4
K WASHER 4
M O-RING 1
P BEARINGS 4
R INNER SPACER 2
S OUTER SPACER 2
T BEARING TOOL 1 0967
Gears not
included
with Kit
T
S
R
P
P
K
K
M
