Model g8688 (Mfg. 3/09+)

-15-

Installing Handwheel

Handles

components and Hardware Needed:

Qty

handwheel handles .......................................... 2

To install the handwheel handles:

1. using a screwdriver and 14mm open end

wrench, thread the handwheel handles into
the longitudinal and cross feed handwheels
(see

figure 9).

2. tighten the nut securely against the

handwheel while ensuring the handle can
spin freely around the bolt with minimal end
play.

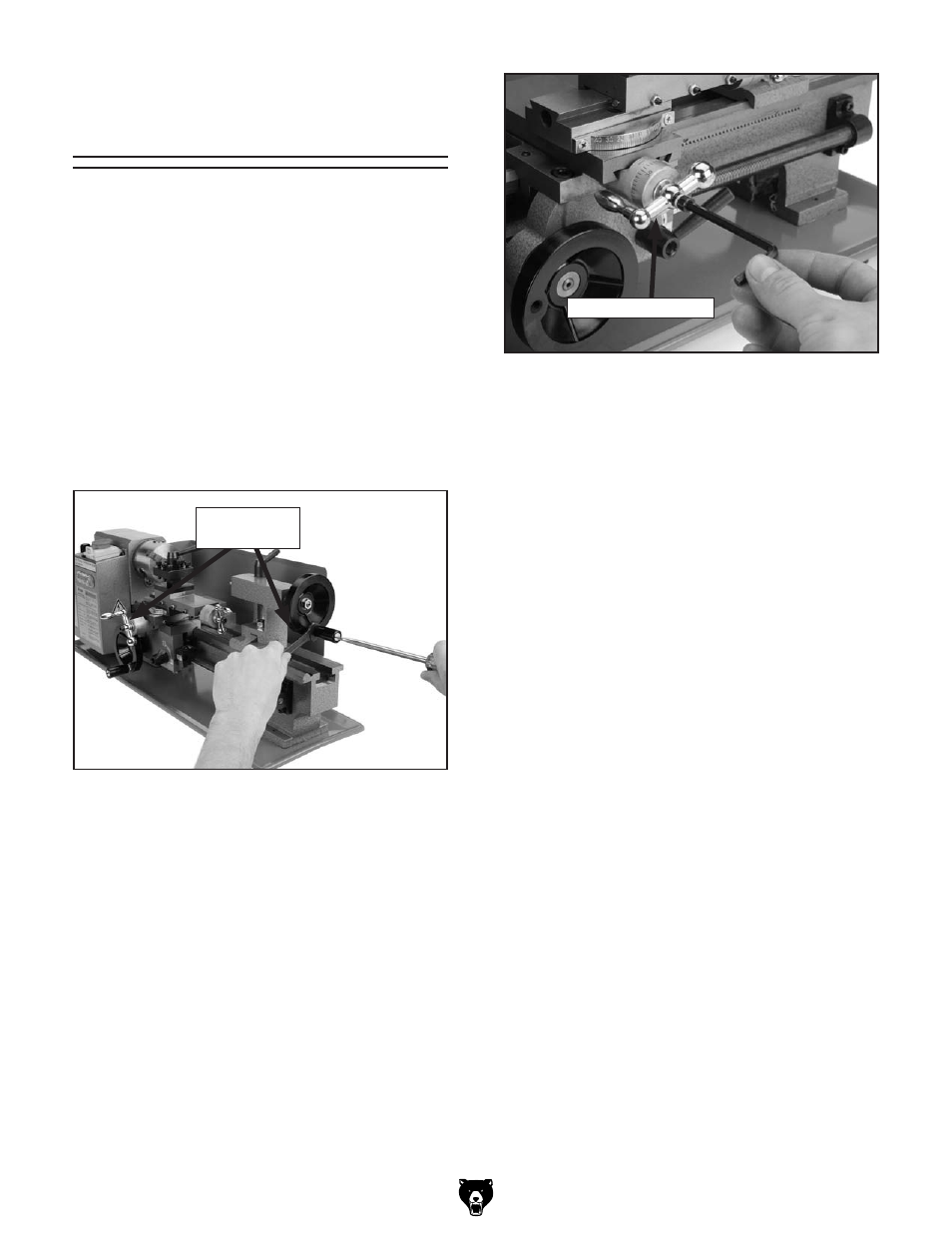

figure 10. Flipping the handle.

Cross Slide Feed

3. the cross slide feed has been turned around

for shipment. With a 5mm hex wrench, remove
the cap screw, turn the handle around, and
retighten the cap screw (see

figure 10).

figure 9. installing the handwheel handles.

handwheel

handles
