Connecting your VCR or video camera
Using S-Video

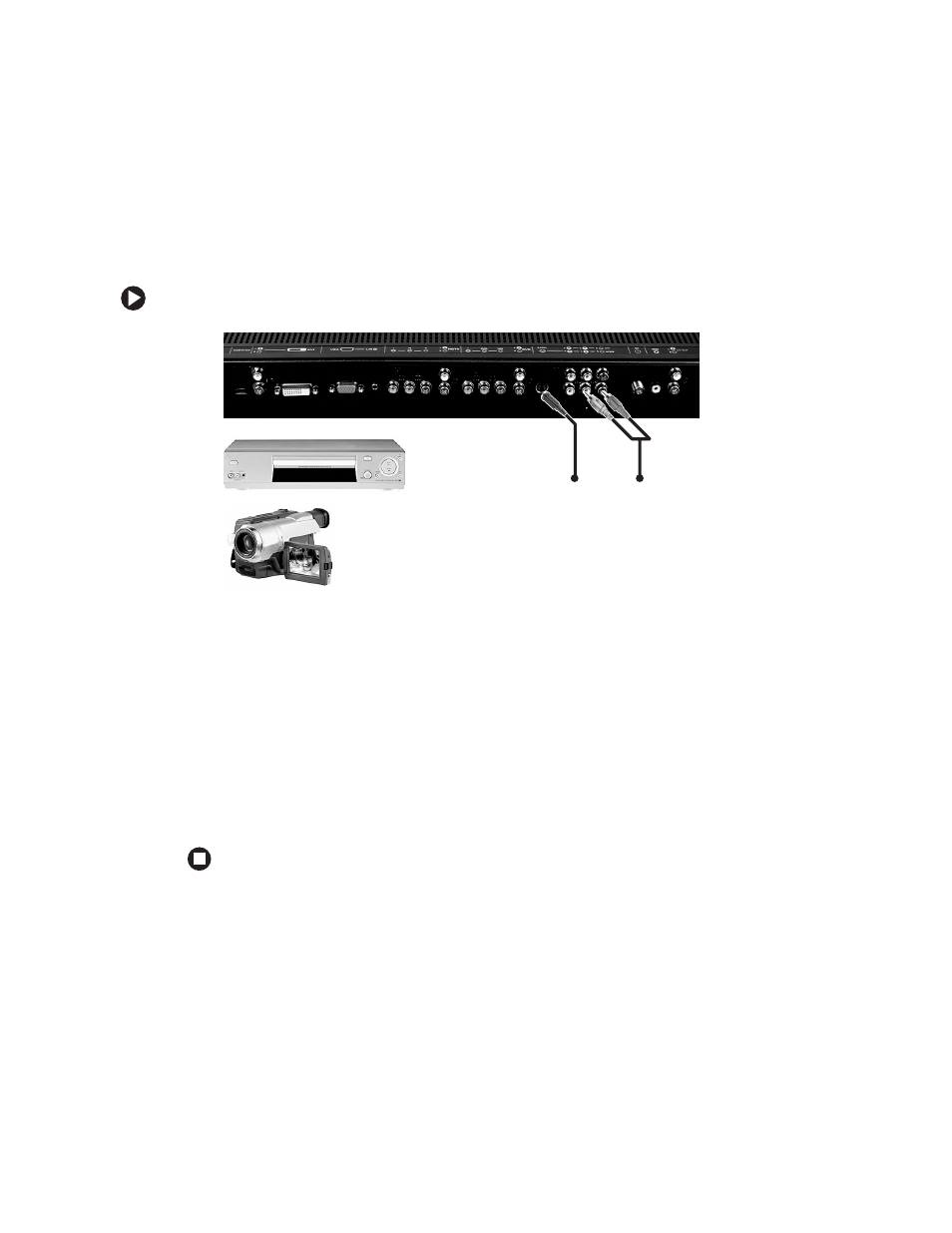

To connect your VCR or video camera using S-Video:
1
Make sure that the power button on your LCD TV is turned off.
2
Connect the S-Video jack on the back of your VCR or video camera to the
AV2/S IN S-VIDEO jack on the back of your LCD TV.
3
Connect the red (R) and white (L) audio jacks on the back of your VCR or video camera
to the AV2/S IN R and L audio-in jacks on the back of your LCD TV.
4
Restart your LCD TV. See
“Turning on the power” on page 10
.
5
Select
AV2/S
using the
INPUT
button on the front of your LCD TV.
You should be able to see a picture. If you do not, make sure that all connections are
secure and you have selected the correct video input source.
- OR -
