Connecting your satellite set-top box
Using component video

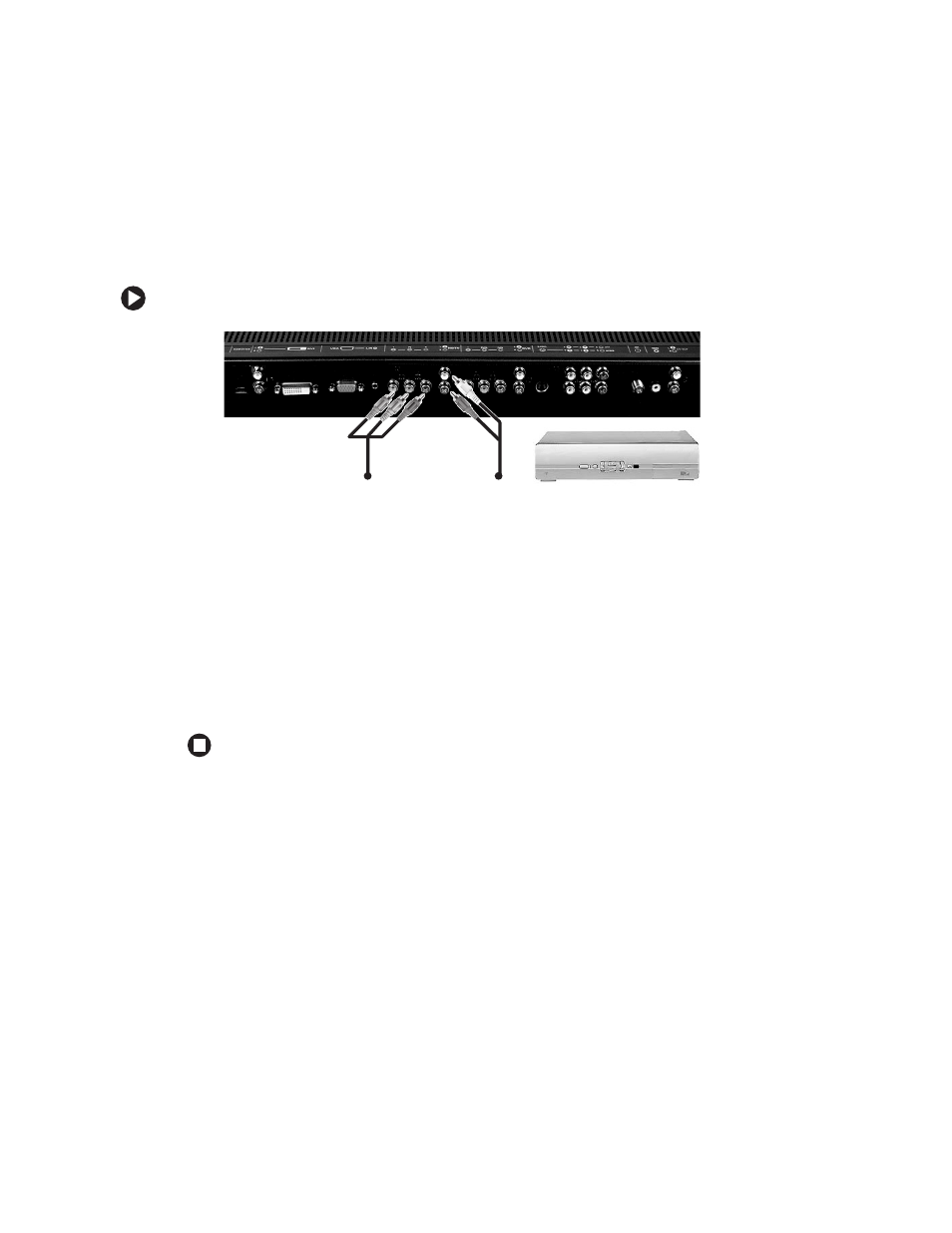

To connect your satellite set-top box using component video:
1
Make sure that the power button on your LCD TV is turned off.
2
Connect the green Y jack on the back of your satellite set-top box to the
COMPONENT HDTV green Y jack on the back of your LCD TV.
3
Connect the red P
R
or C
R
jack on the back of your satellite set-top box to the
COMPONENT HDTV red P
R
/C
R
jack on the back of your LCD TV.
4
Connect the blue P
B
or C
B
jack on the back of your satellite set-top box to the
COMPONENT HDTV blue P
B
/C
B
jack on the back of your LCD TV.
5
Connect the red (R) and white (L) audio jacks on the back of your satellite set-top
box to the COMPONENT HDTV R and L audio-in jacks on the back of your LCD TV.
