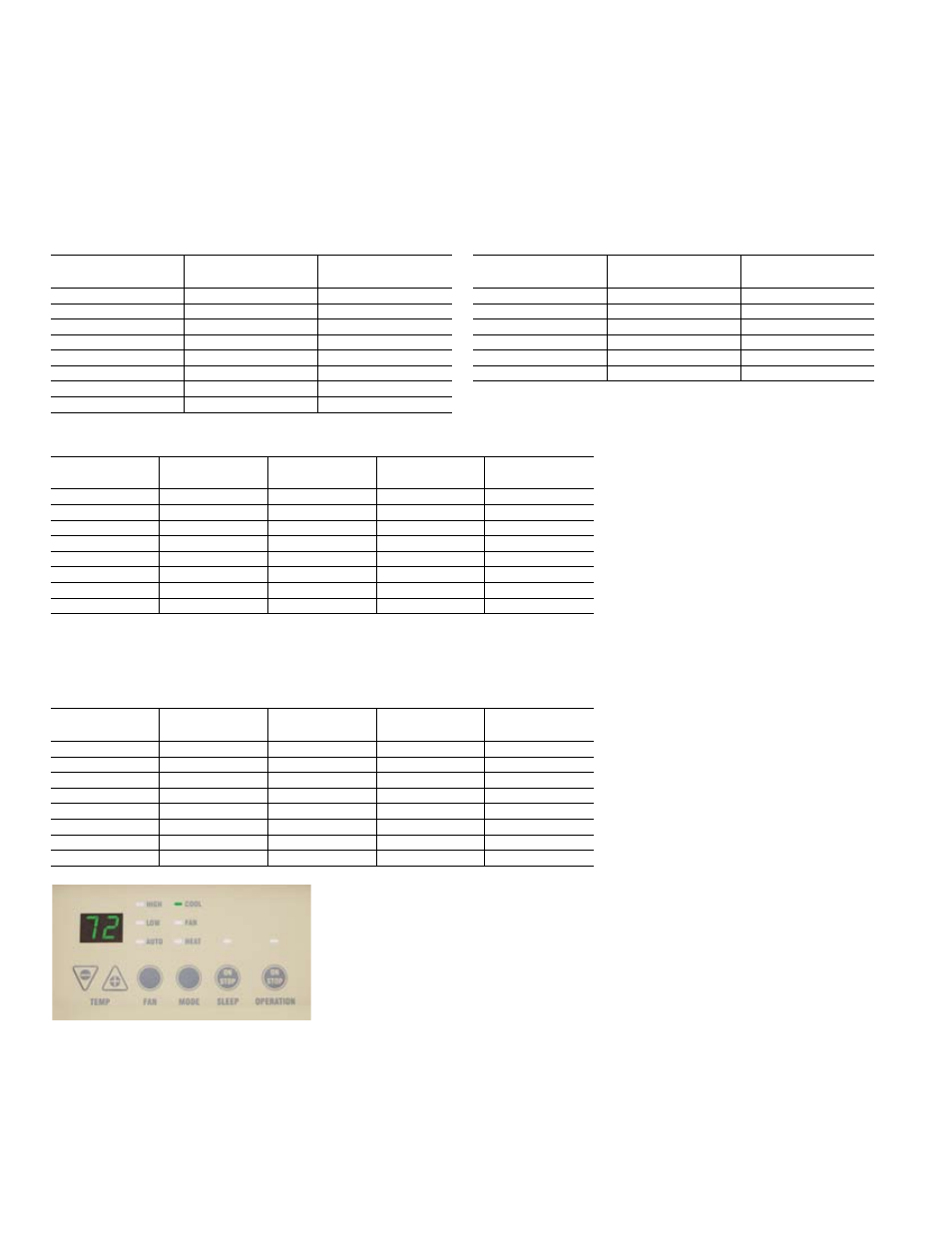

Quick Reference
2900 Series Cooling with Electric Heat
2900, 3900 and 5800 Series
Control Panel
Full Specs on pages 54 and 55
ALL UNITS REQUIRE POWER CONNECTION KIT
Power Connection Kit determines resistance heat output
7000 Btuh units do not activate 5 KW resistance heater
MODEL
NUMBER
COOLING
(Btuh)
EER
AZ29E07DA* 7100/6900 12.7/12.7
AZ29E09DA* 9300/8900 12.0/12.0
AZ29E12DA* 11700/11500 11.5/11.5
AZ29E15DA* 14600/14300 10.2/10.2
AZ29E07EA* 7100 12.7
AZ29E09EA* 9000 12.0
AZ29E12EA* 11700 11.5
AZ29E15EA* 14600 10.2
Dry Air 25
2900 Series Cooling with Electric Heat
MODEL
NUMBER
COOLING
(Btuh)
EER
AZ29E07DAP 6800/6600 12.1/12.1
AZ29E09DAP 8800/8500 11.5/11.5
AZ29E12DAP 11200/11000 11.0/11.0
AZ29E07EAP 6800 12.1
AZ29E09EAP 8900 11.5
AZ29E12EAP 11200 11.0
3900 Series Heat Pump with Backup Electric Heat
MODEL
NUMBER
COOLING
(Btuh)
EER
REvERSE CyCLE
BTUH
COP
AZ39H07DA* 7100/6900 12.7/12.7 6400/6200 3.6/3.6
AZ39H09DA* 9400/9150 12.0/12.0 8550/8300 3.6/3.6
AZ39H12DA* 11850/11500 11.5/11.5 11000/10700 3.4/3.4
AZ39H15DA* 14800/14400 10.0/10.0 13900/13600 3.2/3.2
AZ39H07EA* 7100 12.7 6400 3.6
AZ39H09EA* 9000 12.0 8550 3.6
AZ39H12EA* 11700 11.5 10900 3.4
AZ39H15EA* 14750 10.0 13900 3.2
5800 Series Heat Pump with Backup Electric Heat
MODEL
NUMBER
COOLING
(Btuh)
EER
REvERSE CyCLE
BTUH
COP
AZ58H07DA* 7300/7000 13.0/13.0 6400/6200 3.7/3.7
AZ58H09DA* 9300/9050 12.0/12.0 8400/8200 3.6/3.6
AZ58H12DA* 11800/11600 11.7/11.7 10900/10700 3.4/3.4
AZ58H15DA* 14700/14400 10.3/10.3 13800/13800 3.2/3.2
AZ58H07EA* 7300 13.0 6400 3.7
AZ58H09EA* 9300 12.0 8400 3.6
AZ58H12EA* 11800 11.7 10900 3.4
AZ58H15EA* 14700 10.3 13800 3.2
*Dual rated 230/208-volt units are shown with ratings separated by “/”.
Units with single rating are 265-volt units.
