17
ge.com

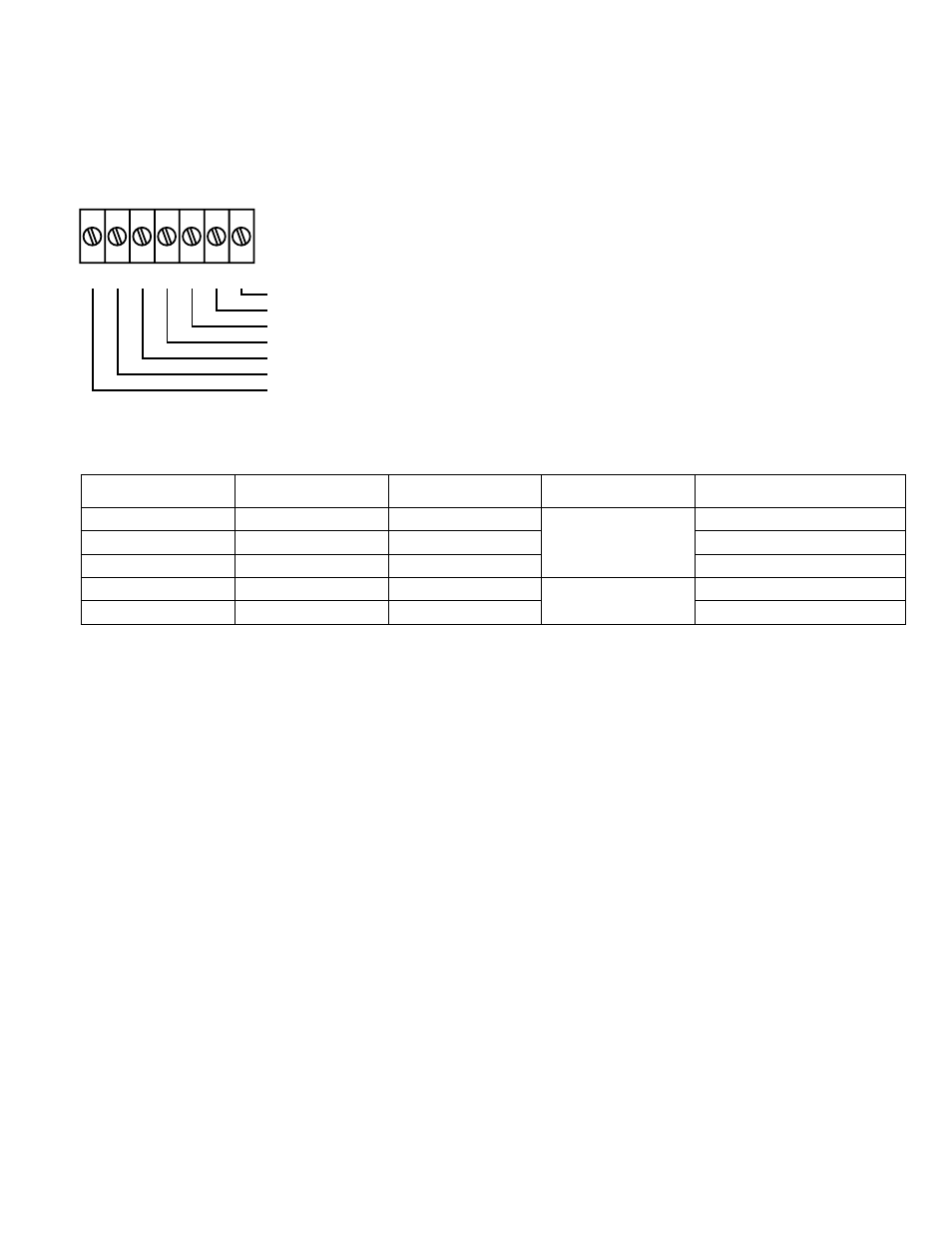

Field Wiring Terminal
R — 24V AC GL — Low-Speed Fan
GH — High-Speed Fan B — Reversing Valve
Y — Compressor W — Heater
C — Common - Ground
Zoneline Series Thermostat Model Type Function Low-Voltage Conductors
2900 RAK16A1 Mechanical
Cooling and Heating
4
RAK164D1 Digital 5
RAK164P1 Digital Programmable 5
900 and 5800 RAK148D1 Digital Single Stage Cooling –
2 Stage Heating
6
RAK148P1 Digital Programmable 6
Thermostat wire size – up to 60 feet AWG20 – up to 66 feet AWG18
Remote Thermostat Control Selection Chart For Zoneline Packaged Terminal Units
R
GL GH
B Y
W C
Common — Ground
White — Heater
Yellow — Compressor
Black — Not Used On 2800
Green — High-Speed Fan
Green — Low-Speed Fan
Red — 24V AC
CDC Terminal
R
GL GH
B Y W C
Common — Ground
White — Heater
Yellow — Compressor
Black — Reversing Valve
Green — High-Speed Fan
Green — Low-Speed Fan
Red — 24V AC
Resistance Heat Models
Heat Pump Models
CDC
