F IVE EASY STEPS TO INSTALL THE HT496
1. Connect a standard touch-tone analog telephone (or fax machine) to first FXS port.
2. Connect another standard touch-tone analog telephone (or fax machine) to second FXS port.
3. Insert the Ethernet cable into the WAN port of HT496 and connect the other end of the Ethernet cable
to an uplink port (a router or a modem, etc.)
4. Connect a PC to the LAN port of HT496.
5. Insert the power adapter into the HT496 and connect it to a wall outlet.

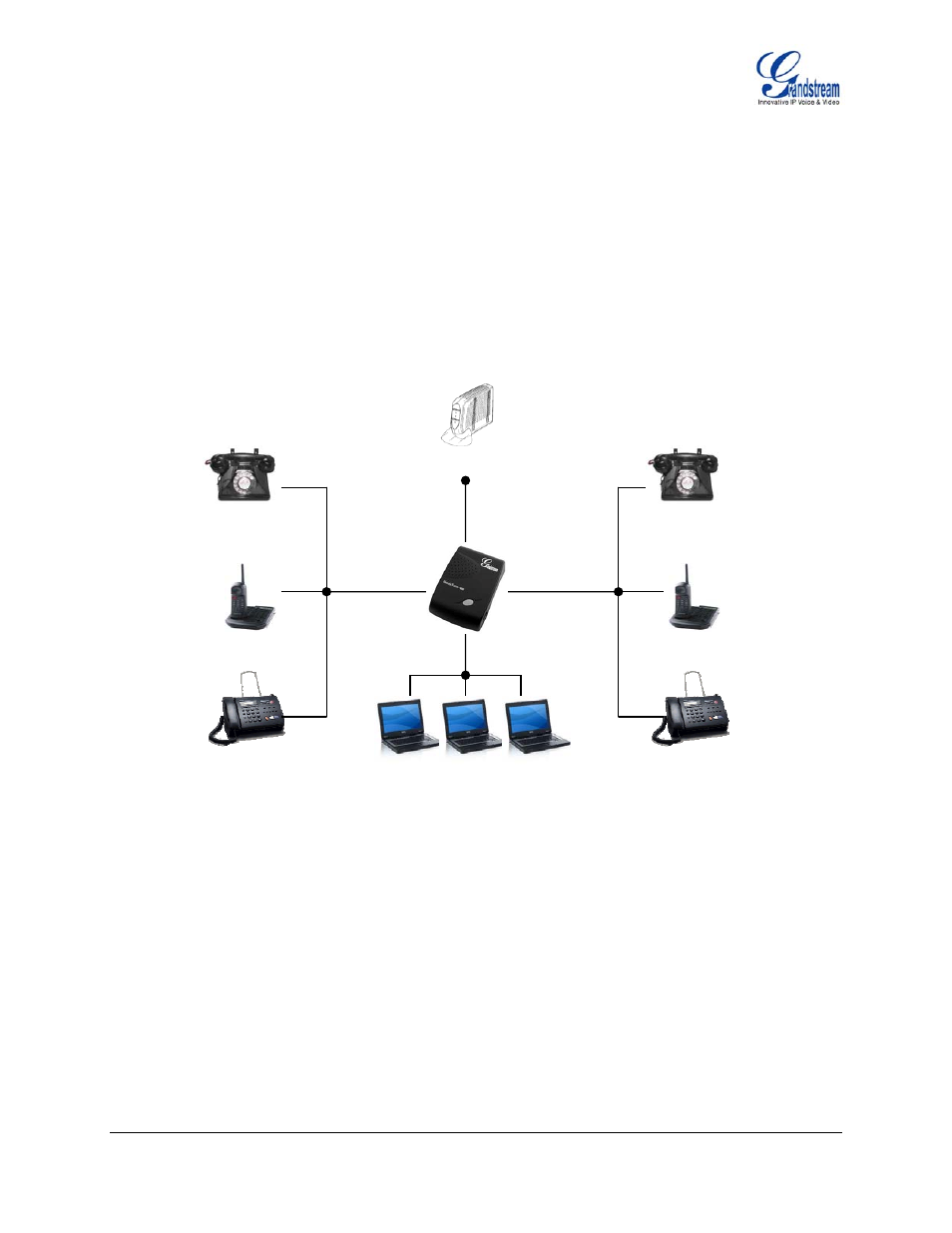

F IGURE 2: C ONFIGURING THE HT496
Internet ADSL / Cable
Modem Ethernet
WAN
LAN
FXS
Fax
Cordless Phone
Analog Phone
FXS
Fax
Cordless Phone
Analog Phone
