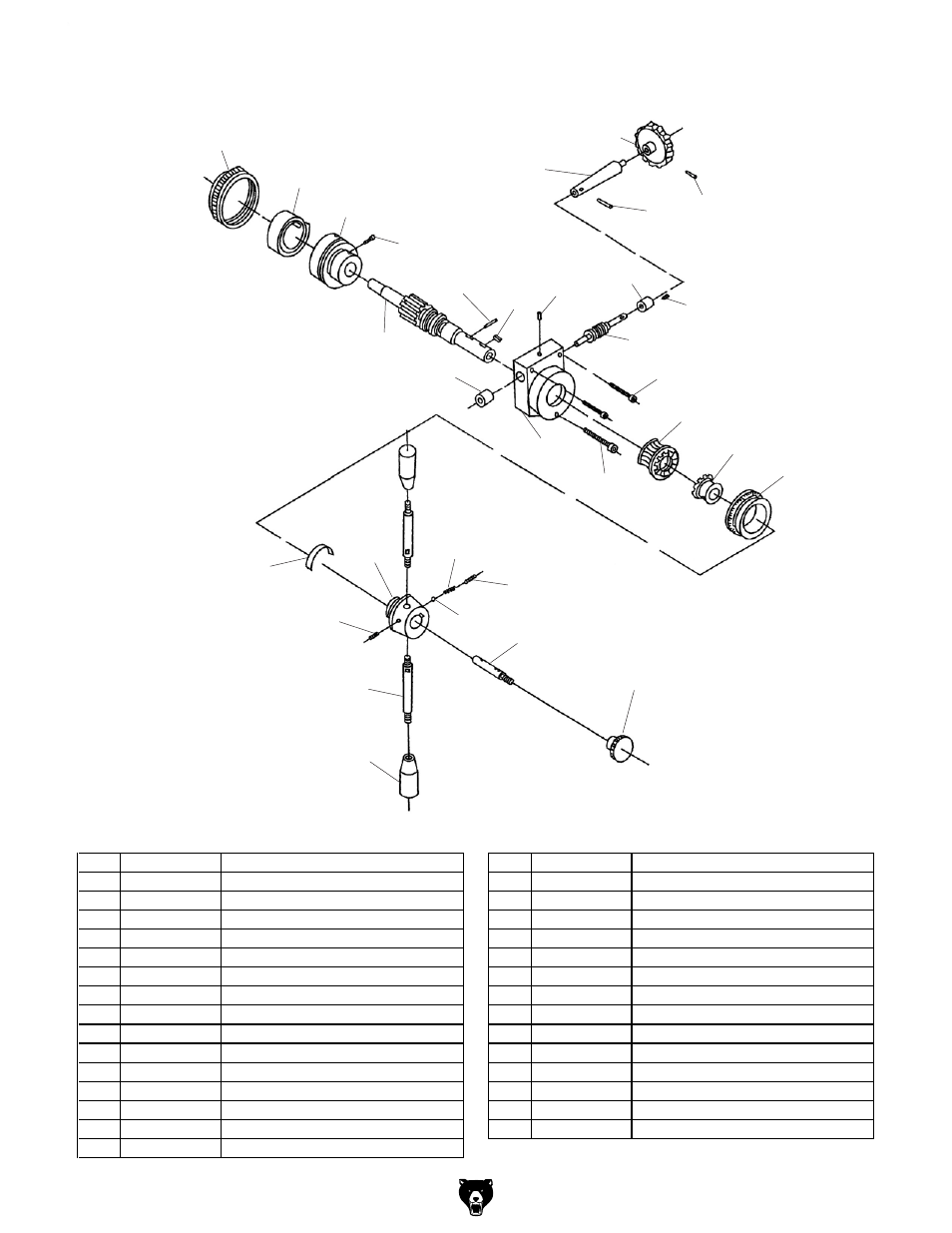

Downfeed Breakdown
&%&
&%'
&%(
&%)
&%*
&%+
&%,
&%-
&%.
&&%
&&&
&&'
&&(
&&)
&&*
&&+
&&,
&&-
&&.
&'%
&'&
&''
&'(
&')
&'*
&'+
&',
&'-
&'.
&(%
&(&
&&*
REF PART # DESCRIPTION REF PART # DESCRIPTION
101 P4791101 SPRING COVER 117 PSB07M CAP SCREW M6-1 X 30
102 P4791102 COILED SPRING 0.8 X 20 X 1000 118 P4791118 GRADUATED DIAL
103 P4791103 SPRING SEAT 119 P4791119 CLUTCH SLEEVE
104 PS17M PHLP HD SCR M4-.7 x 6 120 P4791120 WORM
105 P4791105 GEAR SHAFT 18T 121 P4791121 KNOB
106 PK99M KEY 6 X 6 X 15 122 PSB109M CAP SCREW M5-.8 X 50
107 P4791107 PIN 5 X 28 123 P4791123 SHAFT
108 P4791108 WORM SEAT 124 PSS04M SET SCREW M6-1 X 12
109 P4791109 BALL OILER 8MM 125 P4791125 COMPRESSION SPRING 0.6 X 5 X 15
110 P4791110 STAR KNOB 126 P4791126 STEEL BALL 5MM
111 P4791111 TAPER PIN 3 x 18 127 P4791127 SPRING PLATE
112 P4791112 SHAFT 128 P4791128 HANDLE SEAT
113 PRP02M ROLL PIN 3 X 16 129 PSS04M SET SCREW M6-1 X 12
114 PSS31M SET SCREW M5-.8 X 8 130 P4791130 HANDLE LEVER M10-1.5 X 100
115 P4791115 WORM SLEEVE 131 P4791131 HANDLE KNOB M10-1.5 X 50
116 P4791116 WORM
