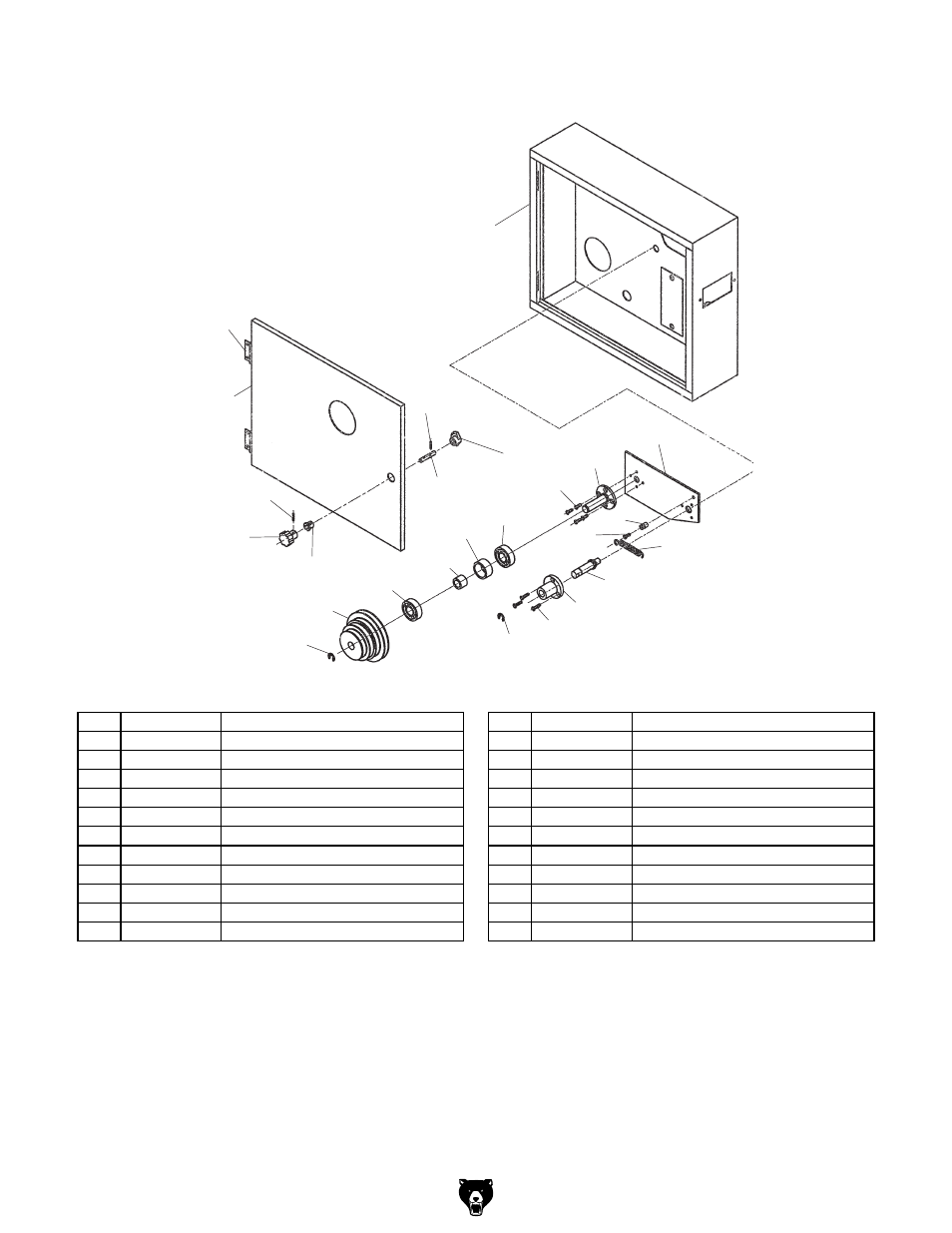

Change Gear Box Breakdown
,%&
,%'
,%(
,%)
,%*
,%+
,%,
,%-
,%.
,&%
,&&
,&'
,&(
,&)
,&*
,&+
,&,
,&-
,&.
,'%
,'&
,''
,'(
,')
,%(
REF PART # DESCRIPTION REF PART # DESCRIPTION
701 P4791701 DOOR LATCH 713 P4791713 AXIS SHAFT
702 P4791702 SHAFT 714 P4791714 AXIS SHAFT BRACKET
703 P4791703 TAPER PIN 3 x 18 715 PS05M PHLP HD SCR M5-.8 x 8
704 P4791704 STAR GRIP KNOB 8 X 32 716 PEC12M E-CLIP 12MM
705 P4791705 BUSHING 717 P4791717 IDLER PULLEY BRACKET
706 P4791706 DOOR 718 PS05M PHLP HD SCR M5-.8 x 8
707 P4791707 BUTT HINGE 719 P4791719 DEEP GROOVE BALL BEARING 203
708 P4791708 LATHE DRIVE SYSTEM CABINET 720 P4791720 OUTER SPRING SLEEVE
709 P4791709 PIVOT PLATE 721 P4791721 INNER SPRING SLEEVE
710 P4791710 BUSHING 722 P4791722 DEEP GROOVE BALL BEARING 203
711 PFH05M FLAT HD SCR M5-.8 X 12 723 P4791723 IDLER PULLEY
712 P4791712 TENSION SPRING 2 X 12 X 61.5 724 PEC05M E-CLIP 15MM
