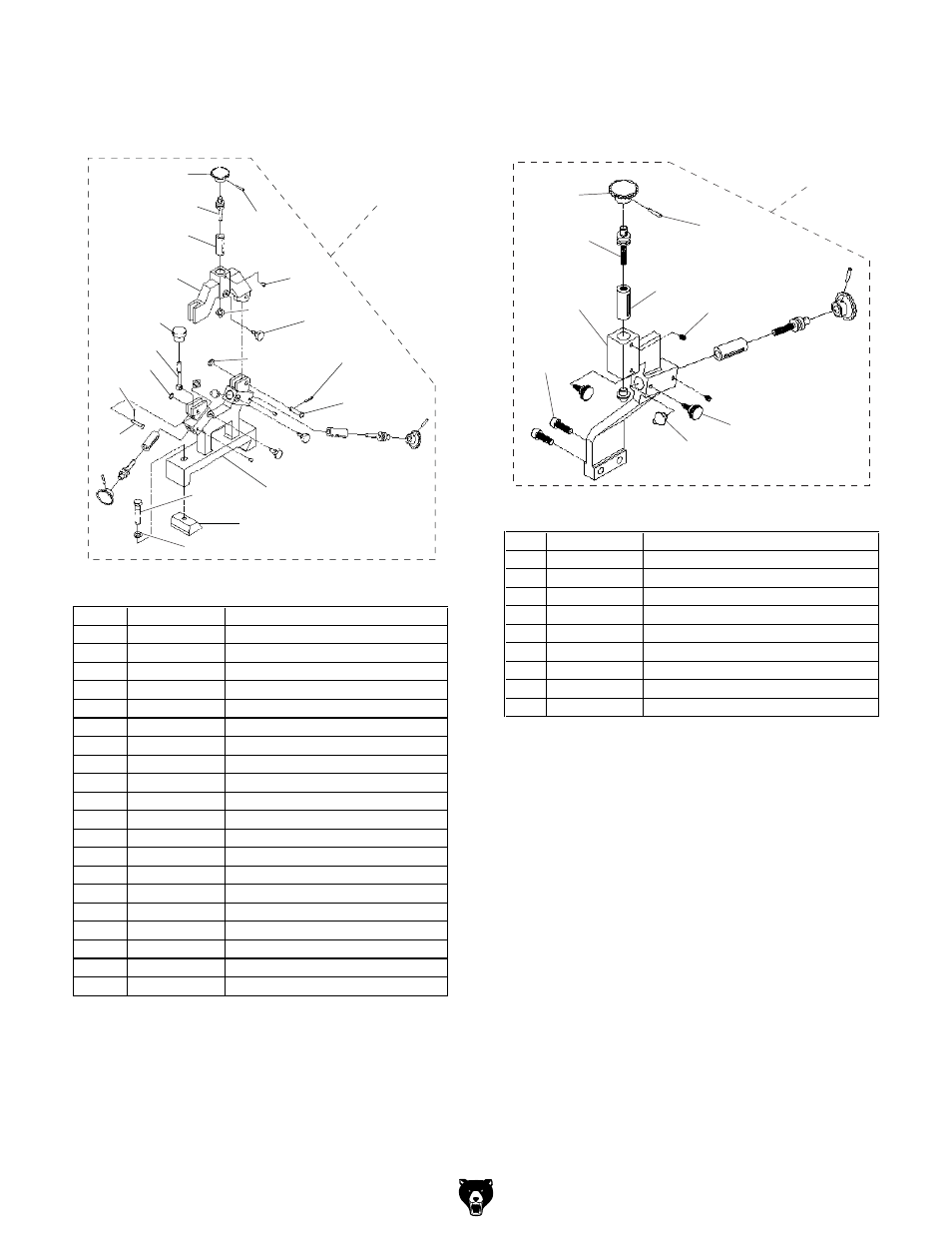

Steady Rest
Breakdown
()%
()%"&
()%"'
()%"(
()%")
()%"*
()%"+
()%",
()%"-
()%".
()%"&%
()%"&&
()%"&'
()%"&(
()%"&)
()%"&*
()%"&+
()%"&,
()%"&-
()%"&.
()%"'%
REF PART # DESCRIPTION
340 P4791340 STEADY REST ASSEMBLY
340-1 PSW03-1 KNOB
340-2 P4791340-2 TAPER PIN 3 X 22
340-3 P4791340-3 ADJUSTMENT BOLT
340-4 P4791340-4 ADJUSTMENT BOLT SLEEVE
340-5 PSS01M SET SCREW M6-1 X 10
340-6 P4791340-6 KNURLED SCREW
340-7 P4791340-7 BOTTOM FRAME
340-8 PRP61M ROLL PIN 3 X 12
340-9 P4791340-9 PIVOT PIN
340-10 P4791340-10 CLAMP SHOE
340-11 PW04M FLAT WASHER 10MM
340-12 PB116M HEX BOLT M10-1.5 X 45
340-13 P4791340-13 PIVOT PIN
340-14 PRP99M ROLL PIN 2 X 10
340-15 PW03M FLAT WASHER 6MM
340-16 P4791340-16 DOG BOLT
340-17 P4791340-17 KNOB
340-18 P4791340-18 UPPER FRAME
340-19 PW01M FLAT WASHER 8MM
340-20 P4791340-20 FINGER
Follow Rest
Breakdown
()&
()&"&
()&"'
()&"(
()&")
()&"*
()&"+
()&",
()&"-
()&".
REF PART # DESCRIPTION
341 P4791341 FOLLOW REST ASSEMBLY
341-1 PSW03-1 KNOB
341-2 P4791340-2 TAPER PIN 3 X 22
341-3 P4791340-3 ADJUSTMENT BOLT
341-4 P4791340-4 ADJUSTMENT BOLT SLEEVE
341-5 PSS01M SET SCREW M6-1 X 10
341-6 P4791340-6 KNURLED SCREW
341-7 P4791340-20 FINGER
341-8 P4791341-8 FRAME
341-9 PSB14M CAP SCREW M8-1.25 X 20
