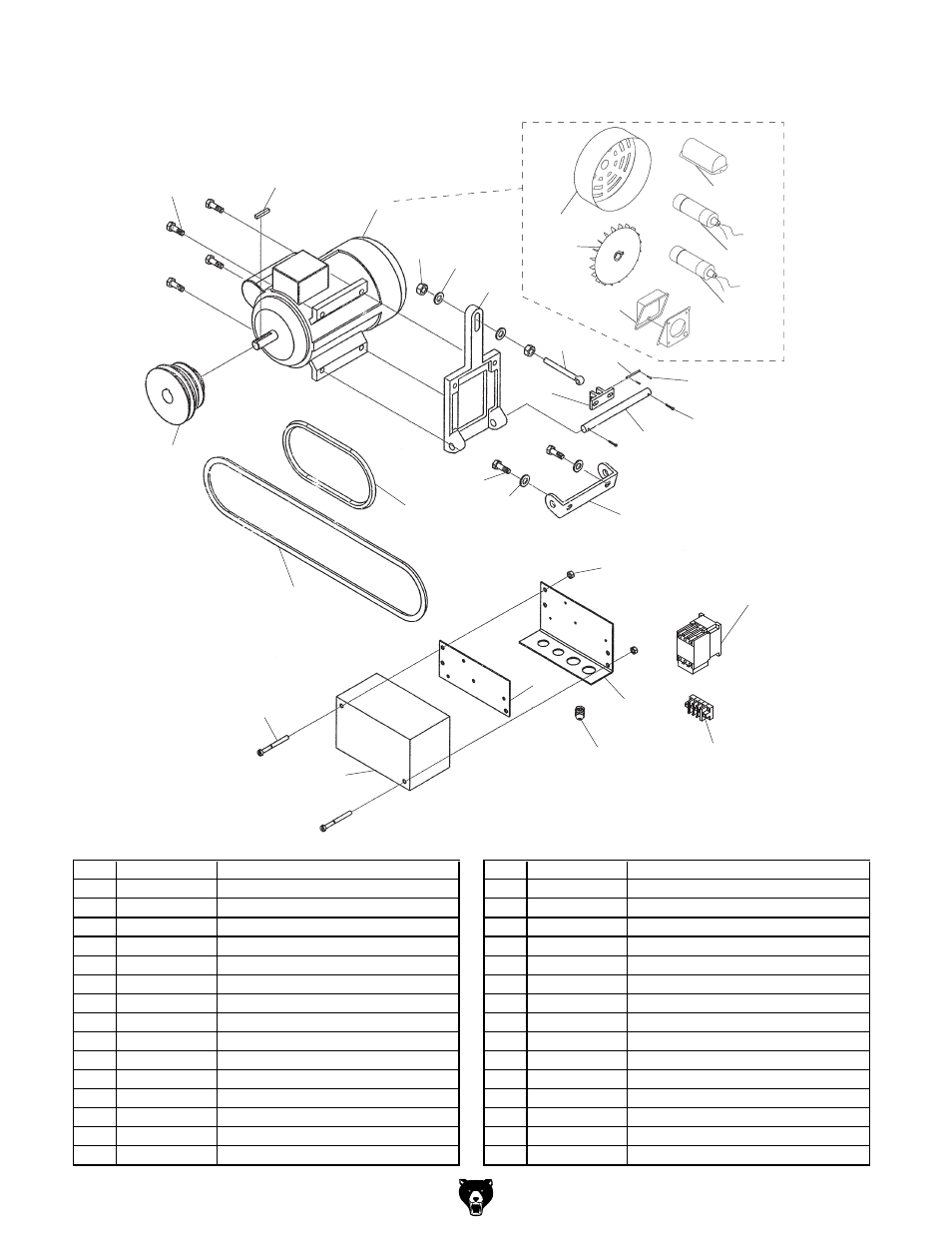

Lathe Motor Breakdown
-%&
-%'
-%(
-%("&
-%("'
-%("(
-%(")
-%("*
-%("+
-%)
-%*
-%+
-%,
-%-
-%.
-&%
-&&
-&'
-&(
-&)
-&*
-&+
-&,
-&-
-&.
-'%
-''
-'(
.(.
.)%
.)&
-'&
REF PART # DESCRIPTION REF PART # DESCRIPTION
801 PB07M HEX BOLT M8-1.25 X 25 811 PRP99M ROLL PIN 2 X 12
802 PK41M KEY 8 X 8 X 40 812 PRP42M ROLL PIN 3 X 20
803 P4791803 MOTOR 1-1/2HP 220V 1-PH 813 PB27M HEX BOLT M12-1.75 X 30
803-1 P4791803-1 CAPACITOR COVER 814 PLW05M LOCK WASHER 12MM
803-2 P4791803-2 S CAP. 150M 250V 1-1/4 X 3-1/8 815 P4791815 MOTOR MOUNT BRACKET
803-3 P4791803-3 R CAP. 20M 450V 1-/58 X 3 816 PN01M HEX NUT M6-1
803-4 P4791803-4 MOTOR FAN COVER 817 P4791817 ELECTRICAL BOX MOUNT
803-5 P4791803-5 MOTOR FAN 818 P4791818 MOUNTING PANEL
803-6 P4791803-6 MOTOR WIRING JUNCTION BOX 819 P4791819 ELECTRICAL BOX
804 PN02M HEX NUT M10-1.5 820 P4791820 SPECIAL SCREW
805 PW04M FLAT WASHER 10MM 821 PVM26 V-BELT 3L260
806 P4791806 MOTOR MOUNT 822 PVM29 V-BELT 3L290
807 P4791807 DOG BOLT M10-1.5 X 70 823 P4791823 MOTOR PULLEY
808 P4791808 BRACKET 939 P4791939 MAGNETIC CONTACTOR
809 P4791809 AXLE SHAFT 940 P4791940 TERMINAL BOARD 5P
810 PRP46M ROLL PIN 6 X 28 941 P4791941 STRAIN RELIEF
