CHAPTER 1: INTRODUCTION INTRODUCTION
MULTILINK ML2400 ETHERNET COMMUNICATIONS SWITCH – INSTRUCTION MANUAL 1–27
Refer to Saving Configuration on page 5–20 for details on the xmodem command.

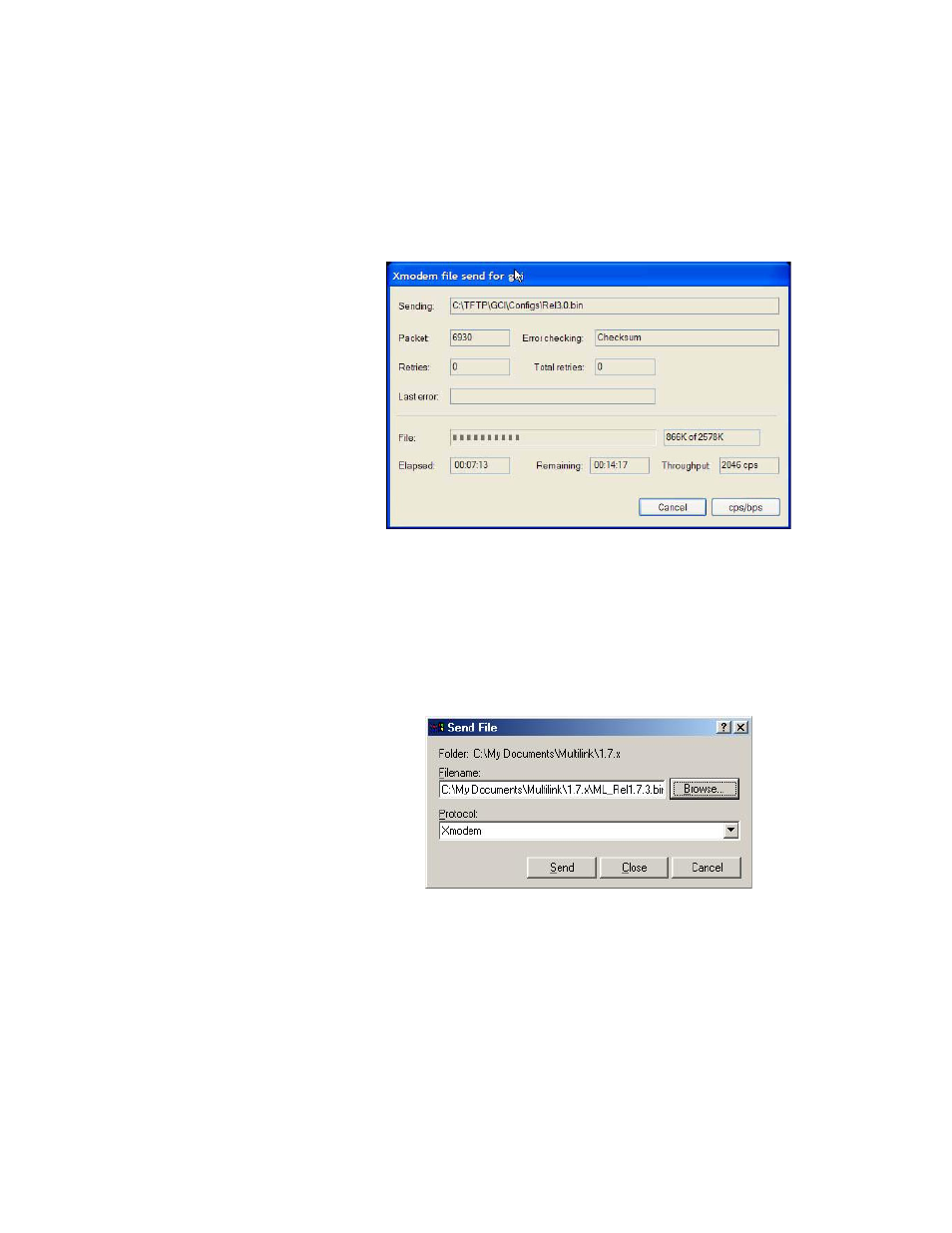

Once the upgrade is started, the terminal emulation firmware will ask for the installation
file location.
Z Indicate the file location to begin the file transfer.
Z Make sure the Xmodem protocol is also selected in this file location
dialog window.
In some operating systems it maybe necessary to select the transfer option.
In this case,
Z Return to the HyperTerminal window used in step 5.
Z Select the Transfer > Send File menu item.
Z As shown below, enter the location of the new firmware file.
Z Select the Xmodem protocol.
Z Select the Send button and to begin the file transfer.
Z Once the file transfer is completed reboot the switch with the
reboot command or by cycling power.
Z Login to the switch and use the show version command to verify
and upload the configuration file (if necessary).
