Installation Preparation
7
TOOLS AND MATERIALS REQUIRED
(NOT SUPPLIED)
• Tape measure
• Knife
• Spirit level
• Wire cutter/stripper
• Wire nuts
• Electric drill with 1/8" and 3/8" bits
• Phillips and flat blade screwdrivers
• Hammer
• Pliers • Safety glasses
• Duct tape
• Tape to mount template
• Gloves to protect against sharp edges
• 120V 60Hz. 15 or 20 Amp, 2 wire with ground.
Properly grounded branch circuit.
• Strain relief for junction cover.
• 8" round metal duct, length to suit installation.
REMOVE THE PACKAGING
The vent hood is shipped secured to a shipping board
with a shipping bracket and 4 screws.
• Remove the duct cover, parts box and other packaging.
• Lift the hood out of the box.
• Remove and properly discard the plastic wrapping.
• Locate and remove 2 screws at the top of the hood.
Remove 2 screws at the bottom behind the filter
guides on the left and right sides. Remove the
shipping bracket from behind the blower housing.
Discard the shipping bracket and board.
• Remove junction box cover.
• Install strain relief into junction box cover.

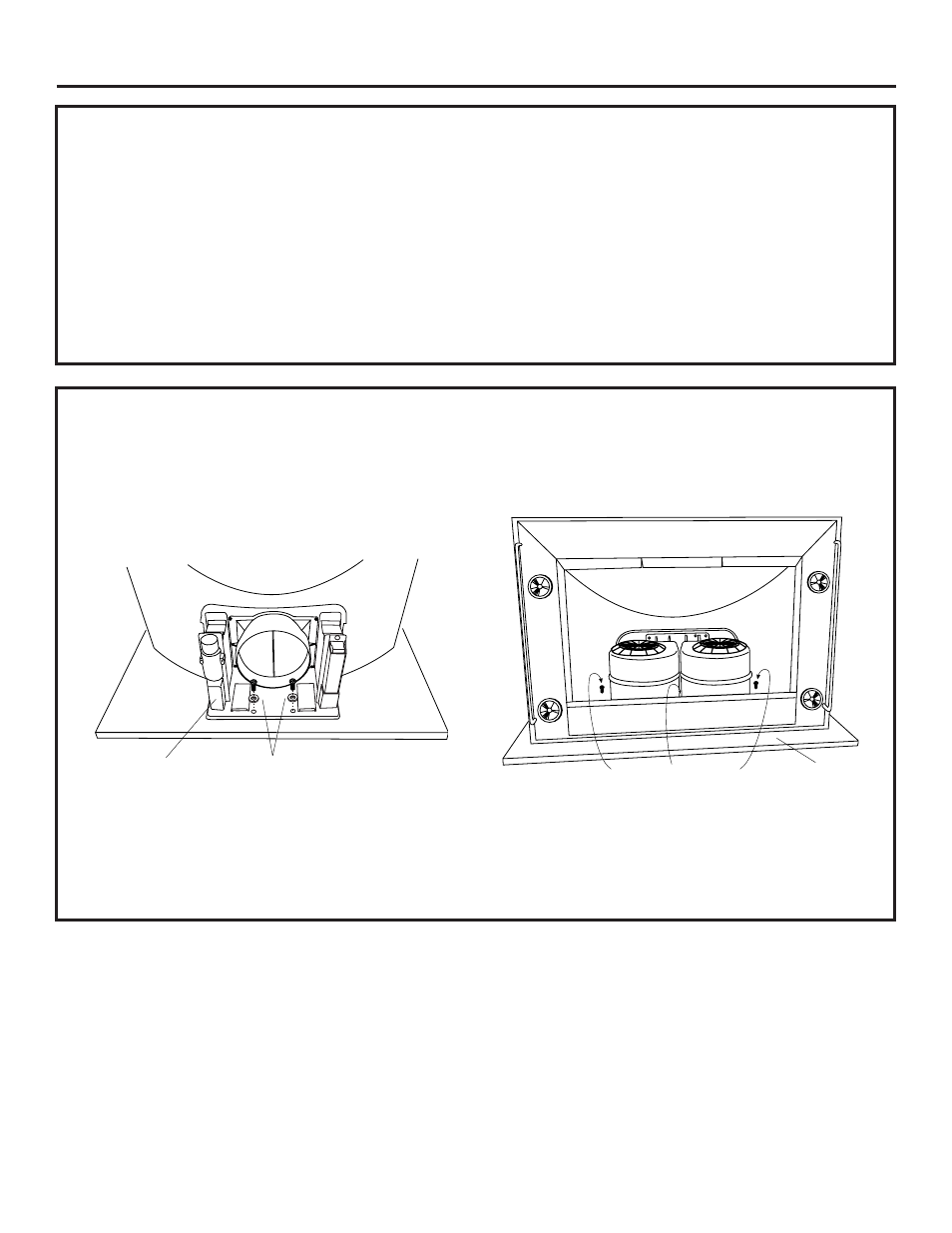

Top Of Hood
124Dia3
Top Shipping Screws Junction
Box
124Dia4
Shipping Board Remove Bottom Shipping
Screws and Shipping Bracket
