ZGU48N4GHSS

(Natural Gas)

ZGU48L4GHSS

(Liquid Propane)

– GE Monogram 48" Professional Gas Cooktop with

4 Burners, Grill and Griddle

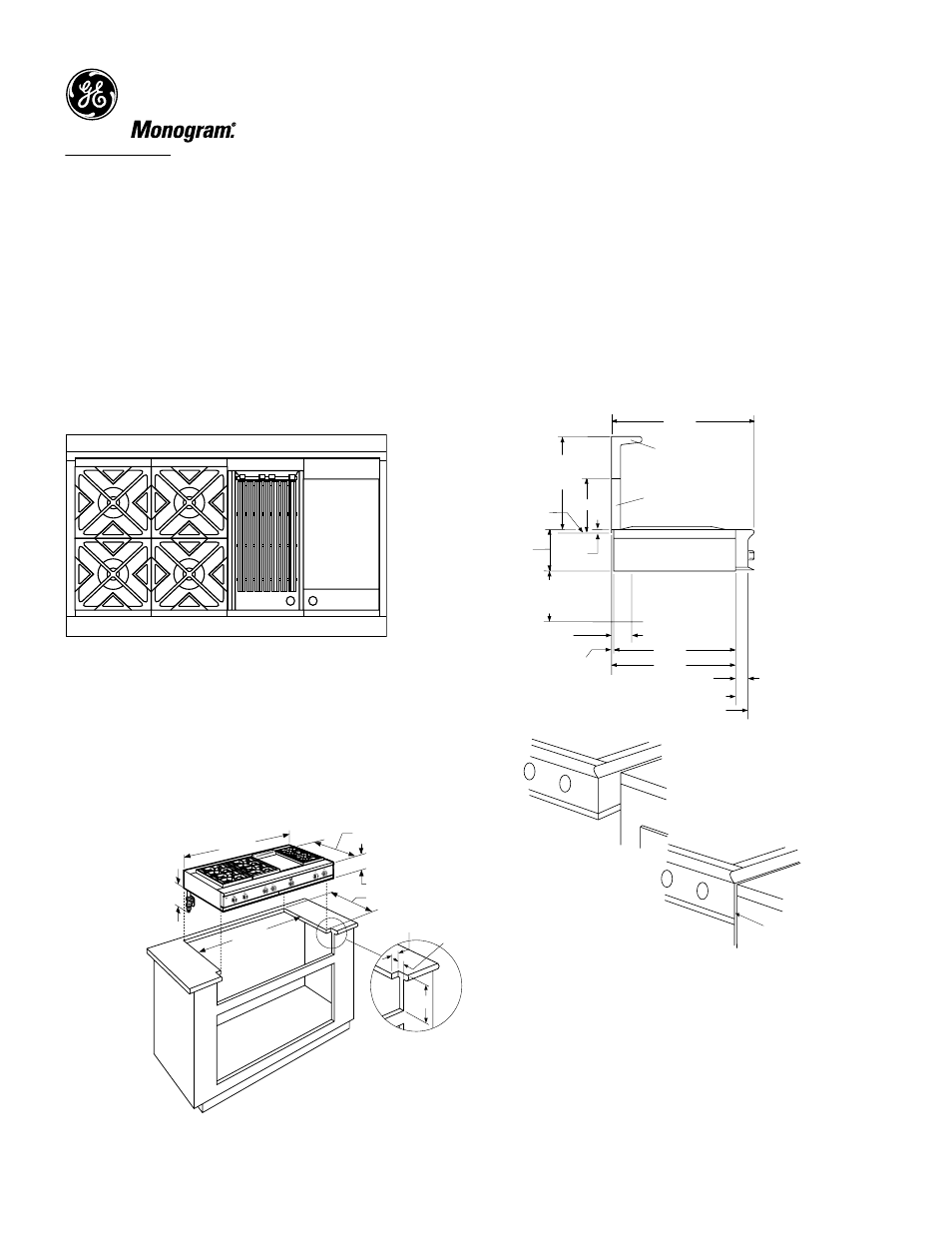

Dimensions and Specifications (in inches)

Professional cooktops offer a number of choices in size and

cooktop configurations.

For answers to your Monogram,

®

GE Profile

or

GE

®

appliance questions, visit our website at

GEAppliances.com or call GE Answer Center

®

service, 800.626.2000.

ZGU48N4GHSS

with 4 burners, grill and griddle (Order ZGU48L4GHSS for LP gas)

Product Dimensions and Clearance

A 48"- or 54"-wide professional vent hood with a minimum 1200 CFM

is recommended for installation over this cooktop.
• Install the hood 30" to 36" above the cooking surface

Install Options

• The cooktop stainless steel surface will be 1/2" higher than

adjacent countertops.

• In 24"-deep cabinets, the front of the cooktop will be

approximately 1-7/8" beyond the front of the countertop.

Specification Revised 10/05

130450

26-5/8"

12"

1/2"

8-7/16"

Countertop

Level

22-3/4"

23-1/4"

4" to Center Line

of Gas Inlet

on the Left

Allow Additional Clearance

Below the Burner Box for

Gas Connections

2-1/2"

Cabinet Face - Projecting Control Panel

Cabinet Face - Flush Control Panel

1/2"

12" High

Backsplash

22"

High

Back

22" High

Backsplash

with Shelf

1/2" Above Adjacent

Countertops.

Front Projects Outward as Shown

From Standard Depth Cabinets.

Cooktop

1/2" Above Adjacent

Countertops.

Front Flush With Cabinets - a Minimum

of 25-3/4" Cabinet Depth Required

Flush With Cabinet Front

Cooktop

8"

2-1/2"

7/8"

46-1/8"

22-3/4"

26-5/8"

8-7/16"

47-7/8"

Mono

gram

FRON

T

REAR

HEAT

ING

FRON

T

REAR

FRON

T

REAR

Allow Clearance

Below the Burner Box

for the Regulator and

Gas Connections

Clearances between cooktop and side

wall or combustible material must be

at least 12" on each side.

26-5/8"

12"

1/2"

8-7/16"

Countertop

Level

22-3/4"

23-1/4"

4" to Center Line

of Gas Inlet

on the Left

Allow Additional Clearance

Below the Burner Box for

Gas Connections

2-1/2"

Cabinet Face - Projecting Control Panel

Cabinet Face - Flush Control Panel

1/2"

12" High

Backsplash

22"

High

Back

22" High

Backsplash

with Shelf

1/2" Above Adjacent

Countertops.

Front Projects Outward as Shown

From Standard Depth Cabinets.

Cooktop

1/2" Above Adjacent

Countertops.

Front Flush With Cabinets - a Minimum

of 25-3/4" Cabinet Depth Required

Flush With Cabinet Front

Cooktop

NOTE: These cooktops require 8" free space below the countertop

to house the cooktop burner box. Allow additional clearances below

the burner box to install the regulator and make house gas supply

connections. Use a 90° elbow to route the gas connections and limit

interference with drawers or other cabinetry features.

26-5/8"

12"

1/2"

8-7/16"

Countertop

Level

22-3/4"

23-1/4"

4" to Center Line

of Gas Inlet

on the Left

Allow Additional Clearance

Below the Burner Box for

Gas Connections

2-1/2"

Cabinet Face - Projecting Control Panel

Cabinet Face - Flush Control Panel

1/2"

12" High

Backsplash

22"

High

Back

22" High

Backsplash

with Shelf

1/2" Above Adjacent

Countertops.

Front Projects Outward as Shown

From Standard Depth Cabinets.

Cooktop

1/2" Above Adjacent

Countertops.

Front Flush With Cabinets - a Minimum

of 25-3/4" Cabinet Depth Required

Flush With Cabinet Front

Cooktop
