-3-
g9298/g9299/g9300 rotary table

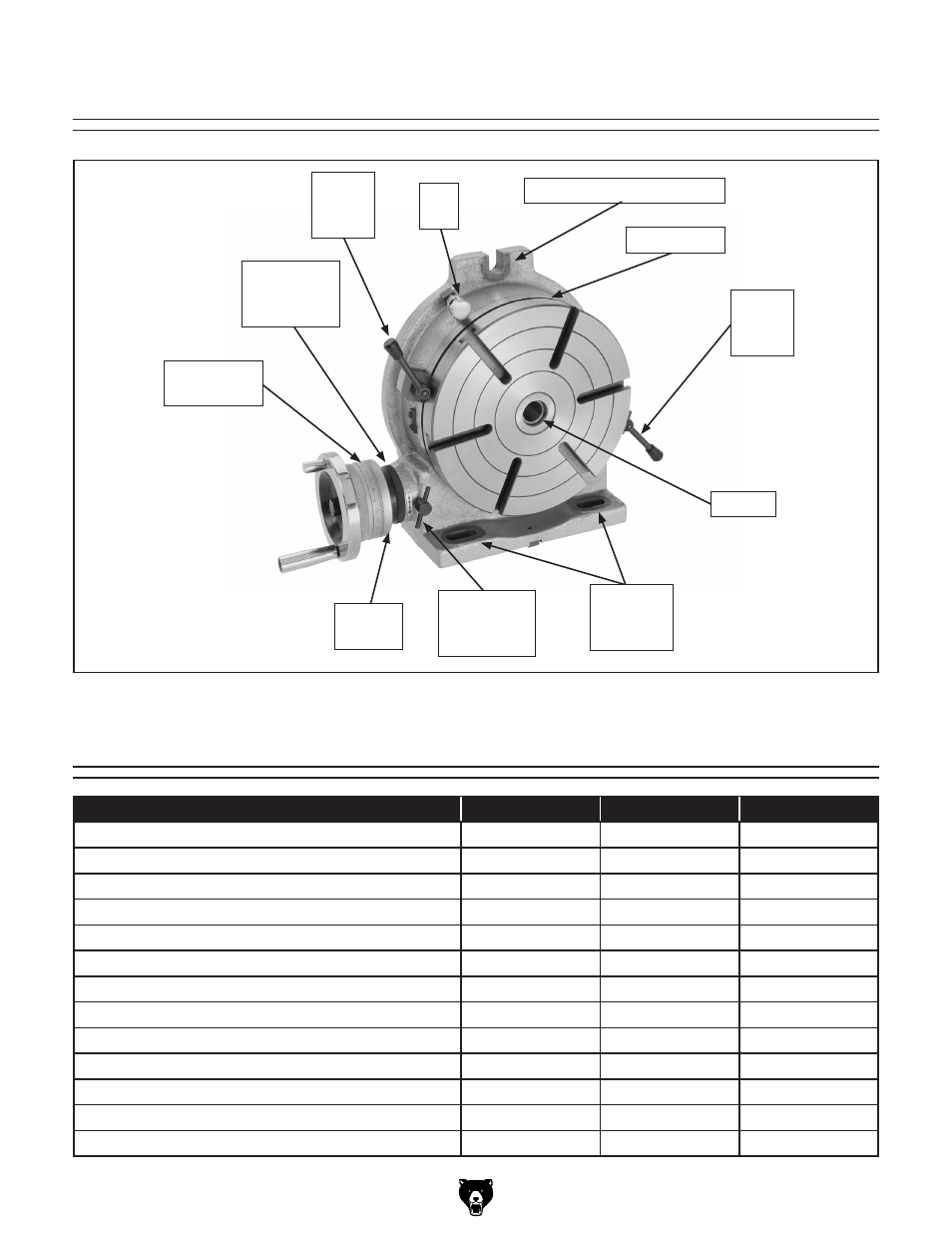

Identification
Specifications
Description G9298 G9299 G9300
Clamping surface Flatness (Concave) 0.0006" 0.0006" 0.0006"
Cylindrical Center Bore Concentricity 0.0008" 0.0008" 0.0008"
taper Center Bore Concentricity 0.0008" 0.0008" 0.0008"
surface to Base parallelism 0.0008" 0.0008" 0.0008"
surface to Angle Face squareness 0.0004" 0.0004" 0.0004"
surface to Center slot squareness 0.0008" 0.0008" 0.0008"
overall height (horizontal) 3.944" 4.330" 4.750"
height to Center hole (Vertical) 5.985" 6.750" 8.250"
Morse taper Mt#3 Mt#3 Mt#4
t-slot number 4 6 6
t-slot Width 0.465" 0.465" 0.545"
diameter 8" 10" 12"
shipping Weight 75 lbs. 117 lbs. 168 lbs.
figure 1. Model g9289/g9299/g9300 identification.
rotary
table
lock
rotary
table
lock
spindle
Backlash
Adjustment
ring
Vertical
Mounting
holes
table scale
oil
port
handwheel
scale
Backlash
Adjustment
lock
Vernier
scale
horizontal Mounting slot
