SECTION 3: OpERATIONS

Damage to your eyes and lungs could result

from using this machine without proper pro-

tective gear. Always wear safety glasses and

a respirator when operating this machine.

NOTICE

If you have never used this type of machine

or equipment before, WE STRONGLY REC-

OMMEND that you read books, review

industry trade magazines, or get formal

training before beginning any projects.

Regardless of the content in this section,

Grizzly Industrial will not be held liable for

accidents caused by lack of training.

Loose hair, clothing, or

jewelry could get caught

in machinery and cause

serious personal injury.

Keep these items away

from moving parts at all

times to reduce this risk.

To reduce the risk of

serious injury when using

this machine, read and

understand this entire

manual before beginning

any operations.

Basic Controls

use

figure 7 and the following descriptions to

become familiar with the basic controls of your
rotary table.

A. Handwheel: rotates the table when the

gears are engaged.

B. Handwheel Scale: displays the amount of

table rotation with a resolution of 1' (1 arc
minute), and also has 1° marks. one full turn
of the handwheel rotates the table 4°.

C. Backlash Adjustment Ring: Allows adjust-

ment of the backlash between the gears.
Also, disengages the gears so that the table
can be rotated by hand. loosen the back-
lash adjustment lock, then rotate the ring
clockwise until the worm gears disengage.
reverse the process to re-engage them.

D. Table Lock: When fully tightened, keeps the

table from rotating to reduce the strain on the
gears during operation. When cutting circular
slots, a slight drag can be applied with the
table locks to help reduce chatter caused by
gear backlash.

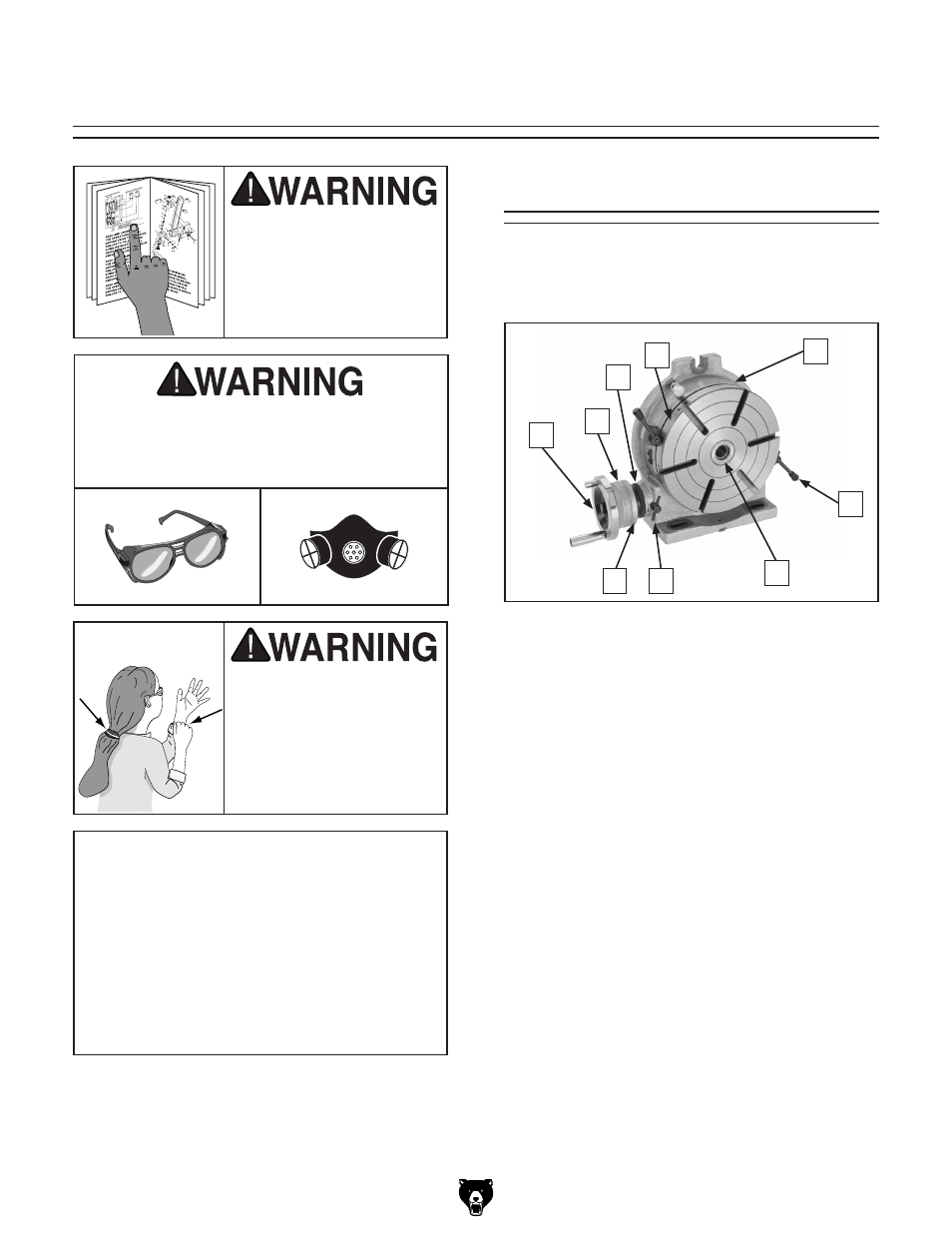

figure 7. Basic controls of the rotary table.
