Grizzly G0659 - Manual (Page 55)

g0659 9" x 14" Vertical Metal-Cutting Bandsaw
-53-
'*)
&.+
'*'
'*(
&.*
&.(
&.)
'*&
'%)
'%*
&.&
&.' &-&
&-'
&,.
&-%
&-%
&-.
&--
&-,
&-+
&-*
&.-
&..
&-)
&-(
&.,
&*)
&**
&.)
&+&
'()
&+'
&*+
&+%
&*-
&*-
&*,
&,%
&+-
&+.
'&'
'&&
&,)
&,'
&,(
&,&
'(+ '(,
'(-
&.%

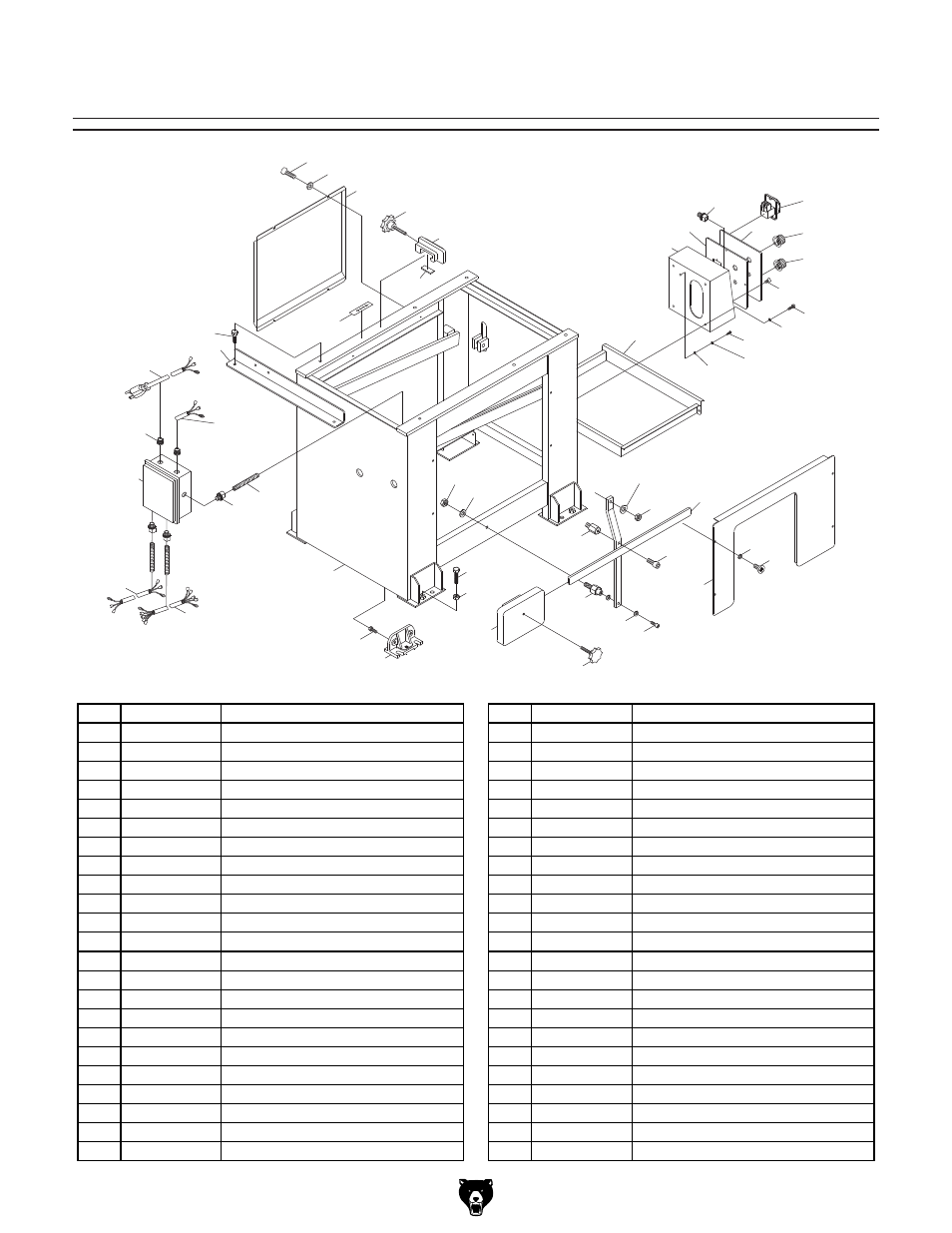

Cabinet Base Breakdown and parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
154 P0659154 CONTROL BOX 188 PSB01 CAP SCREW 1/4-20 X 5/8
155 P0659155 CONTROL BOX COVER 189 P0659189 MOUNTING COUPLER
156 P0659156 CONTROL BOX LABEL 190 P0659190 KNOB 3/8-16 X 2
157 P0659157 ON/OFF SWITCH 191 P0659191 BALANCE WEIGHT
158 P0659158 HYDRAULIC KNOB 192 P0659192 CABINET
160 PFH03 FLAT HD SCR 1/4-20 X 1/2 193 P0659193 LIQUID-TITE STRAIN RELIEF
161 PS01 PHLP HD SCR 10-24 X 1/2 194 P0659194 THREADED STRAIN RELIEF
162 P0659162 CHIP TRAY 195 P0659195 JUNCTION BOX
168 P0659168 INDICATOR PLATE 196 P0659196 LIGHT POWER CABLE
169 P0659169 STOP CLAMP 197 P0659197 LEFT SUPPORT PLATE
170 P0659170 KNOB 3/8-16 X 2 198 PW06 FLAT WASHER 1/4
171 PW06 FLAT WASHER 1/4 199 PS04 PHLP HD SCR 1/4-20 X 1/2
172 PS12 PHLP HD SCR 1/4-20 X 5/8 204 P0659204 FOOT BRACKET
173 P0659173 STAND SIDE PLATE 205 PB21 HEX BOLT 3/8-16 X 3/4
174 P0659174 SAW FRAME POSITION LABEL 211 PB07 HEX BOLT 5/16-18 X 3/4
179 PN08 HEX NUT 3/8-16 212 P0659212 FIXED PLATE
180 PW02 FLAT WASHER 3/8 234 PW03 FLAT WASHER #10
181 PB20 HEX BOLT 1/2-12 X 2-1/2 236 PW02M FLAT WASHER 5MM
182 PN41 HEX NUT 1/2""-12 237 PTLW02M EXT TOOTH WASHER 5MM
183 PW02 FLAT WASHER 3/8 238 PS19M PHLP HD SCR M5-.8 x 6
184 PN08 HEX NUT 3/8-16 251 P0659251 MAIN POWER CABLE
185 P0659185 BALANCE WEIGHT RAIL 252 P0659252 POWER CABLE
186 PSB07 CAP SCREW 5/16-18 X 3/4 253 P0659253 CONTROL WIRE
187 P0659187 PIVOT COUPLER 254 P0659254 CONDUIT
