-50-
g0659 9" x 14" Vertical Metal-Cutting Bandsaw
*+"'
*+
*-
+%
*.
**
+*
*)
*,
+,
++
++
+(
*( +)
+'
+&
**
*%
*&
*'
*+"*
*+")
*+"(
*+"&
'%,

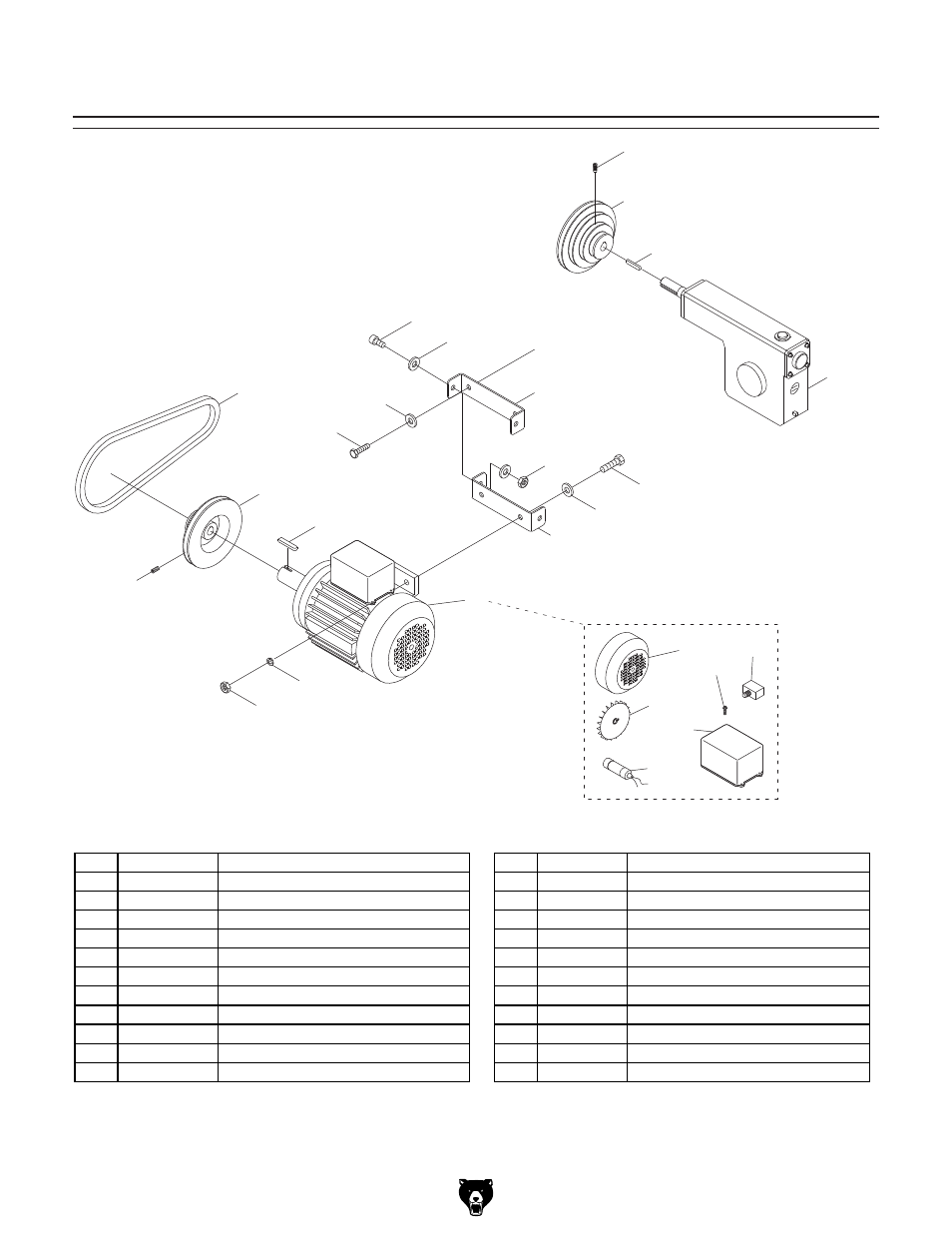

Drive Unit Breakdown and parts List
REF PART # DESCRIPTION REF PART # DESCRIPTION
50 P0659050 GEAR BOX PULLEY 57 PK02M KEY 5 X 5 X 40
51 PK02M KEY 5 X 5 X 40 58 PN08 HEX NUT 3/8-16
52 P0659052 GEAR BOX ASSEMBLY 59 PLW04 LOCK WASHER 3/8
53 PVM32 V-BELT M-32 3L320 60 P0659060 INNER MOTOR MOUNT BRACKET
54 P0659054 DRIVE PULLEY WHEEL 61 PB18 HEX BOLT 3/8-16 X 1
55 PSS01M SET SCREW M6-1 X 10 62 PN08 HEX NUT 3/8-16
56 P0659056 MOTOR 1HP 22OV 1725 RPM 63 PW02 FLAT WASHER 3/8
56-1 PC150B S CAPACITOR 150M 250V 1-1/2 X 2-3/8 64 P0659064 OUTER MOTOR MOUNT BRACKET
56-2 PS08M PHLP HD SCR M5-.8 X 12 65 PSB14 CAP SCREW 3/8-16 X 1
56-3 P0659056-3 MOTOR JUNCTION BOX 66 PW02 FLAT WASHER 3/8
56-4 P0659056-4 MOTOR FAN COVER 67 PB21 HEX BOLT 3/8-16 X 3/4
56-5 P0659056-5 MOTOR FAN 207 P0659207 OVERLOAD SWITCH 10A
