Gibs – Grizzly G0524 User Manual
Page 33
G0524 Rip Saw
-31-
The head of the saw slides up and down on gibs.
Over time, the gibs may need to be tightened to
compensate for wear. Loosen the jam nuts and
adjust the setscrews to reduce the “play” along
the gibs (
Figure 33). Always make small adjust-
ments to the setscrews, starting with
1
⁄
4
turn incre-
ments. When adjusted correctly, tighten the jam
nuts and make sure the head slides up and down
smoothly.

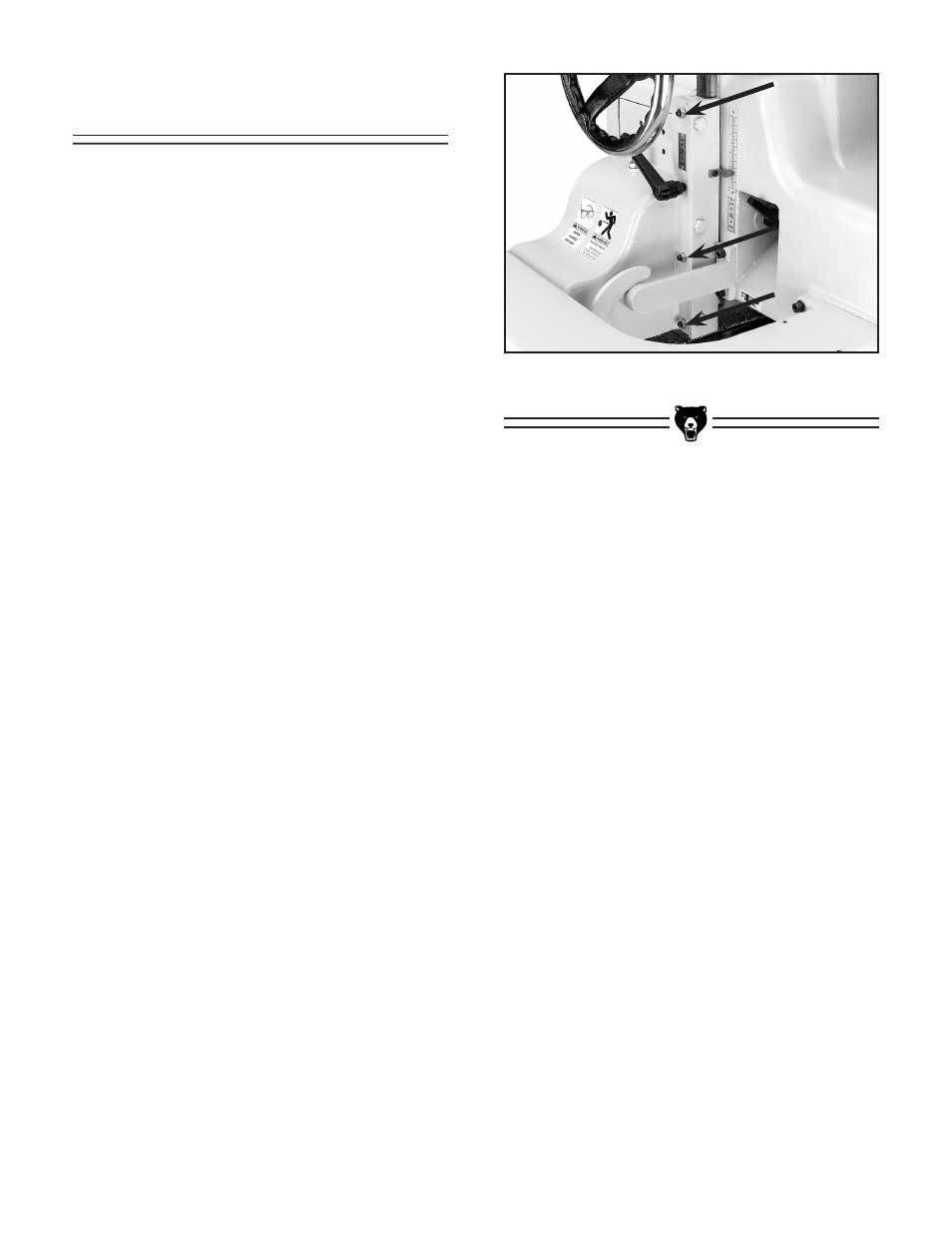

Figure 33. Gib adjustment setscrews.
Gibs
