3 – 3

3.3

Connections

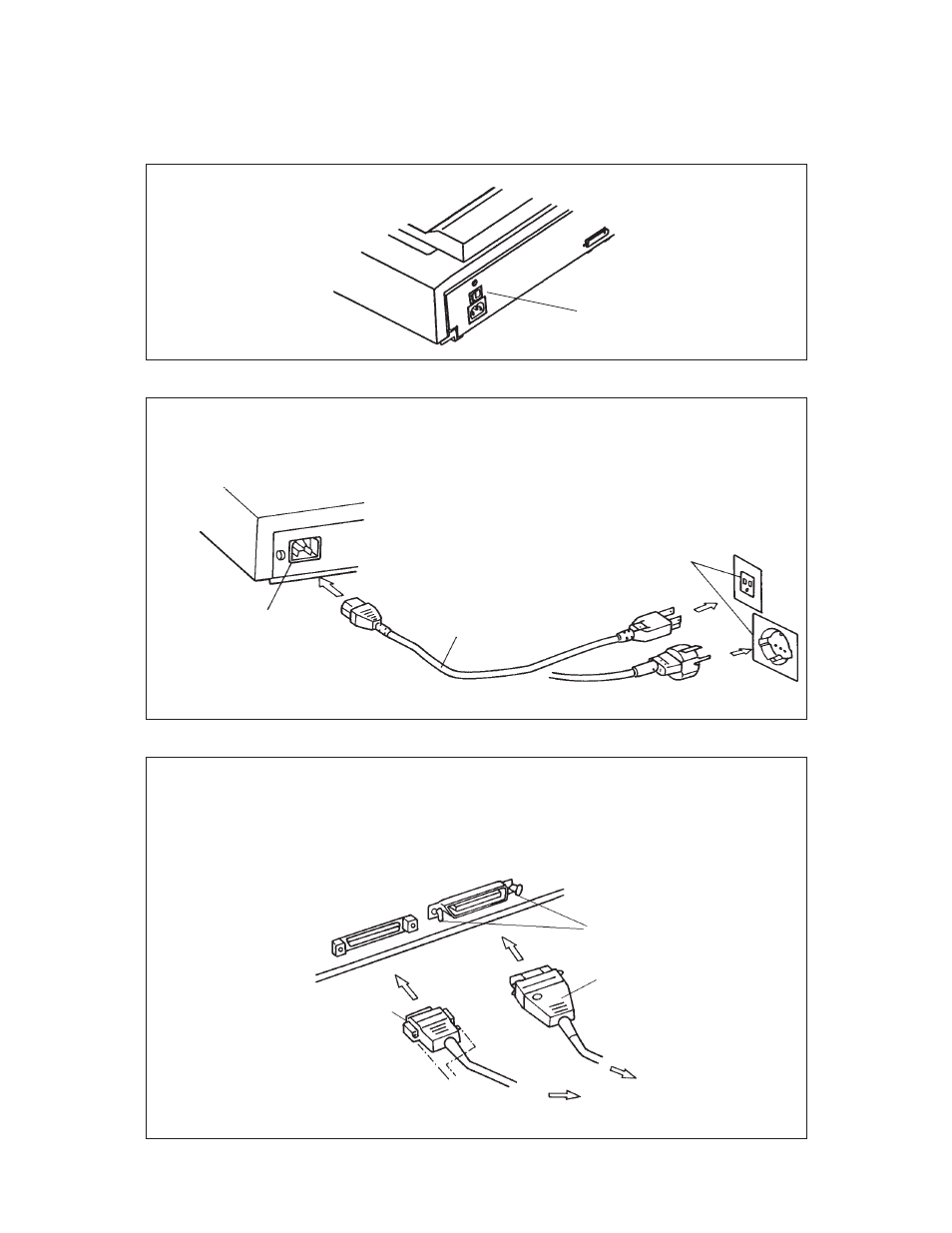

Connect the image scanner using the following procedure.

①

Set the power switch to off.

③

Connect the interface cables (for M3096EX).

Connect the interface cables to the interface connectors and fasten the cables
with catches and screws as shown below.
Connect the other end of each interface cable to the host computer.

②

Connect the power cable.

Connect the power cable to the power inlet on the back of the image scanner.
Connect the other end of the power cable to a power outlet.

Power inlet

for Europe

for North America

Back of the image scanner

Power cable

Power outlet

Power switch

Interface cable for video

Interface cable for RS232C

Catches

To the host system

Screws
