Furuno FR-8122 User Manual
Page 16
1. MOUNTING
1-8

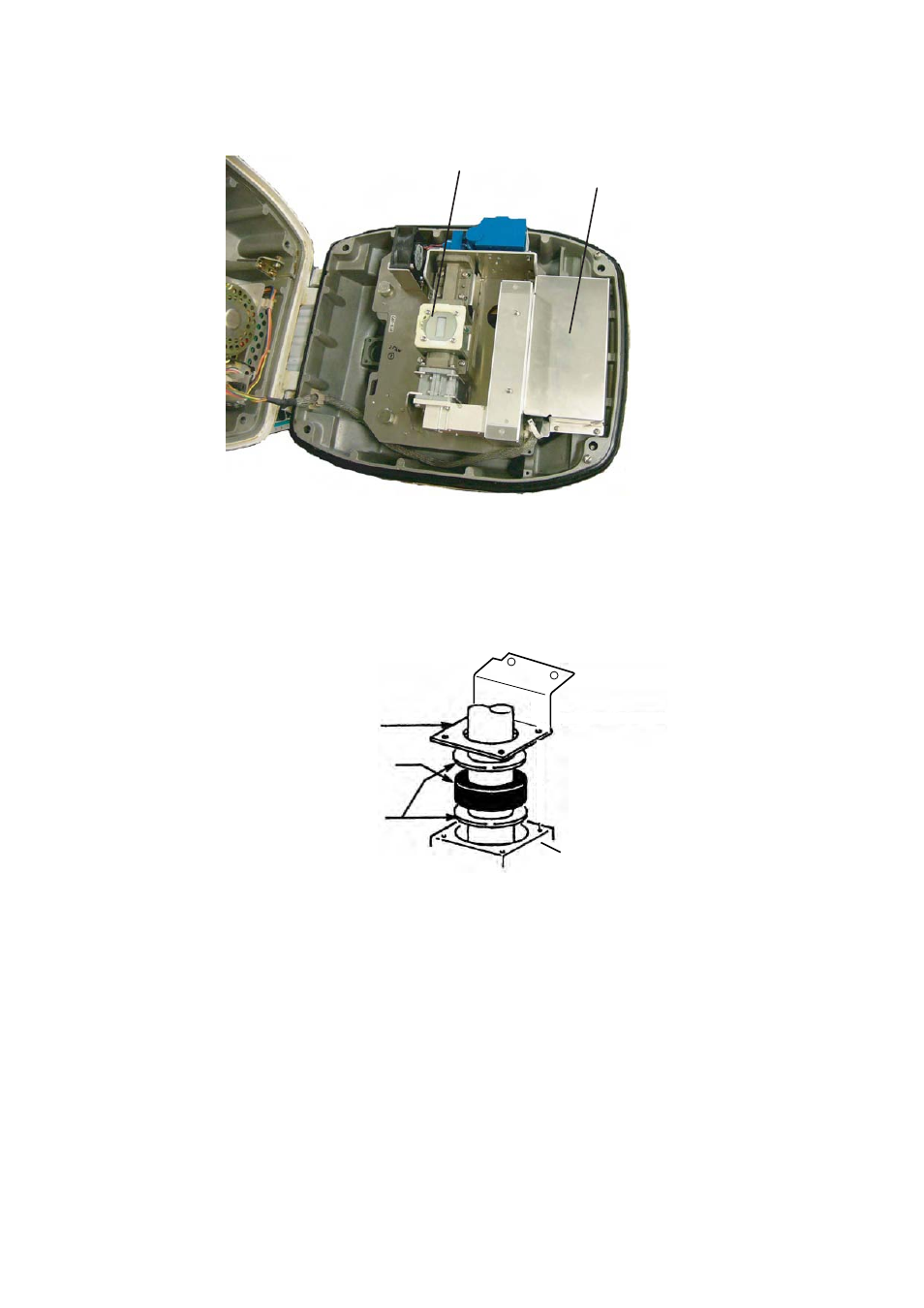

• Connecting the signal cable
1. Open the antenna cover by loosening four bolts, and then fix the stay.
Cable entry
RTB board cover
Antenna unit chassis, cover opened
2. Unfasten the cable gland assembly (plate, gasket, flat washer). The plate may be
discarded.
3. Pass the signal cable with connector through the bottom of the antenna unit chassis.
Pass the cable through the gland assembly as shown below.
Gasket support
Gasket
Flat washer
Cable entry
Passing the signal cable through the cable gland assembly
4. Fasten the gasket support with four bolts. Using one of the four bolts, fasten the
crimp-on lug to the shield wire.
