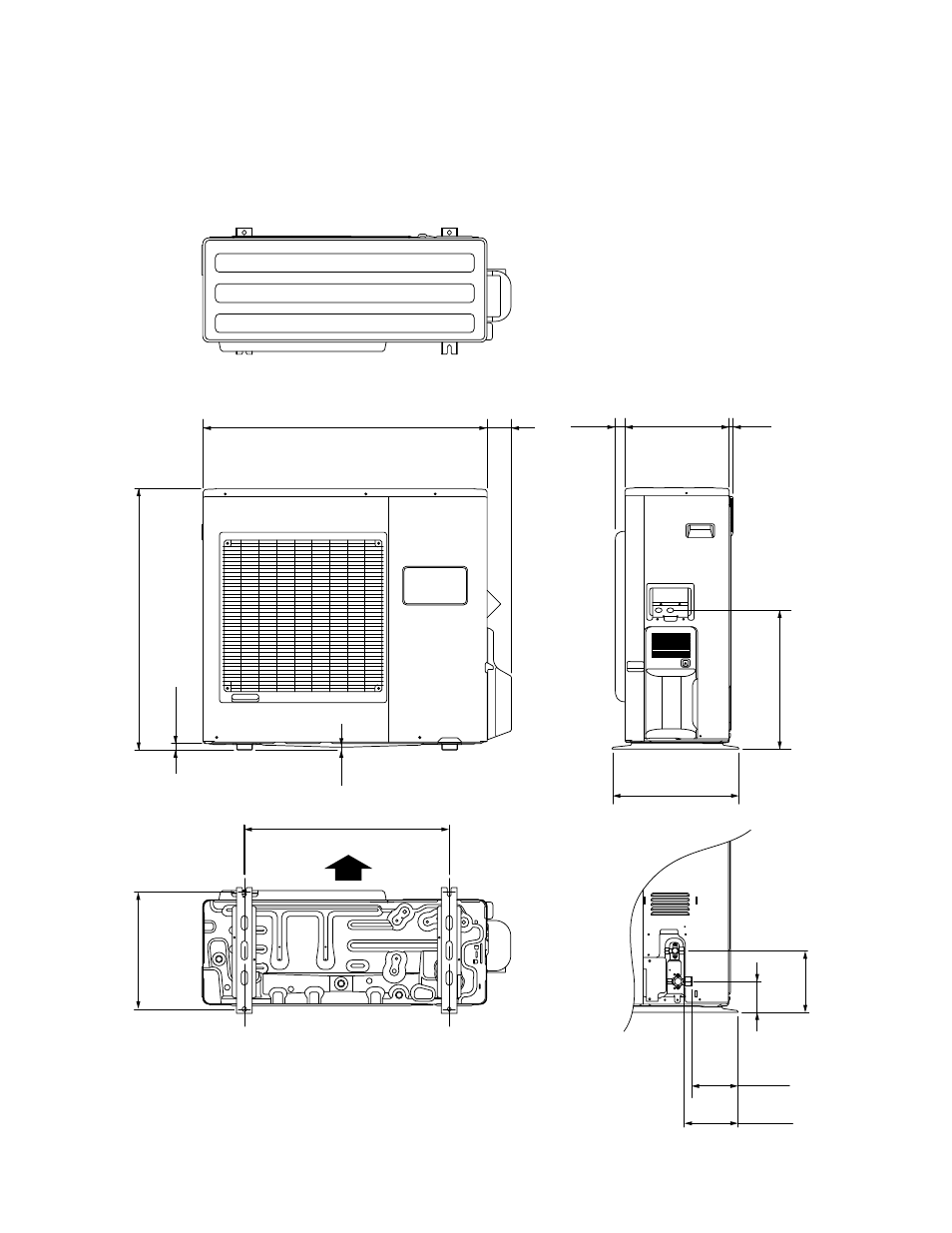

OUTDOOR UNIT

3"(77)

35-1/2" (900)

32-3/4" (830)

17-3/8" (440)

7/8" (21)

3/8"

(9)

15-3/4" (400)

13" (330)

1-1/4"
(31)

1/2" (12)

7-3/4" (196)

5-3/4" (147)

6-3/4" (170)

3-7/8"

(99)

14-5/8" (370)

25-5/8" (650)

Air Flow
