Friedrich MR30C3F User Manual
Page 18

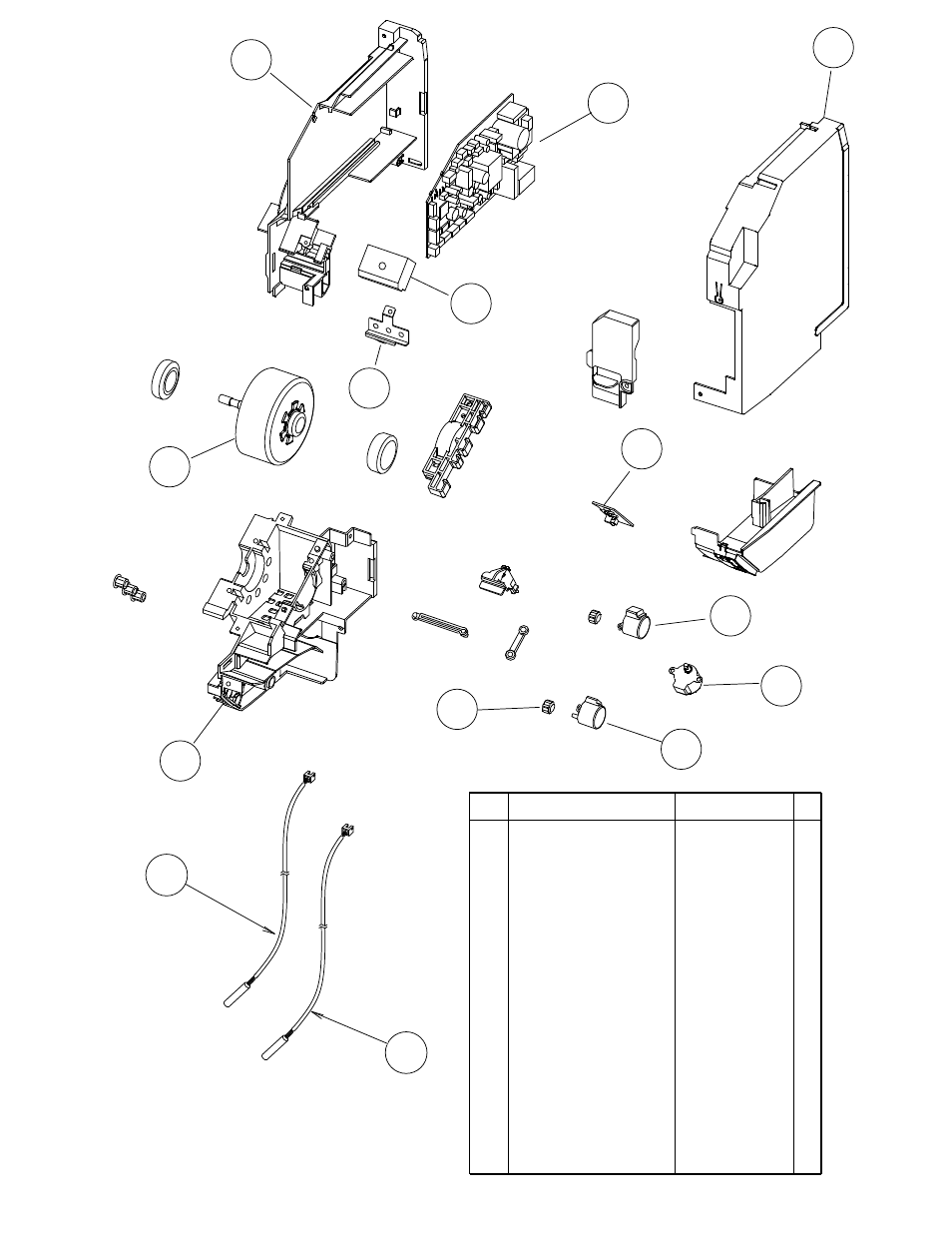

INDOOR UNIT
17
2008.01.09
46
48
52
55
40
42
41
53
39
37
38
47
57
56
Ref. Description
Part number
37
Controller PCB Assy (30)
37
Controller PCB Assy (36)
9707090093
9707090109
38
Control Box
9314996023
39
Control Cover
9314997020
40
Case (Motor)
9314998027
41
Terminal (Earth)
9315028013
42
Fan Motor (30)
42
Fan Motor (36)
9602163014
9601924029
46
Motor, Step
9900384029
47
Motor, Step
9900384036
48
Motor, Step
9900139063
52
Gear A
9309994003
53
Terminal
9900385019
55
Indicator PCB Assy
9707210019
56
Pipe Thermistor
9900389017
57
Room Thermistor
9700801108
