Friedrich MR30C3F User Manual

Page 17

background image

26

23

22

2008.01.09

16

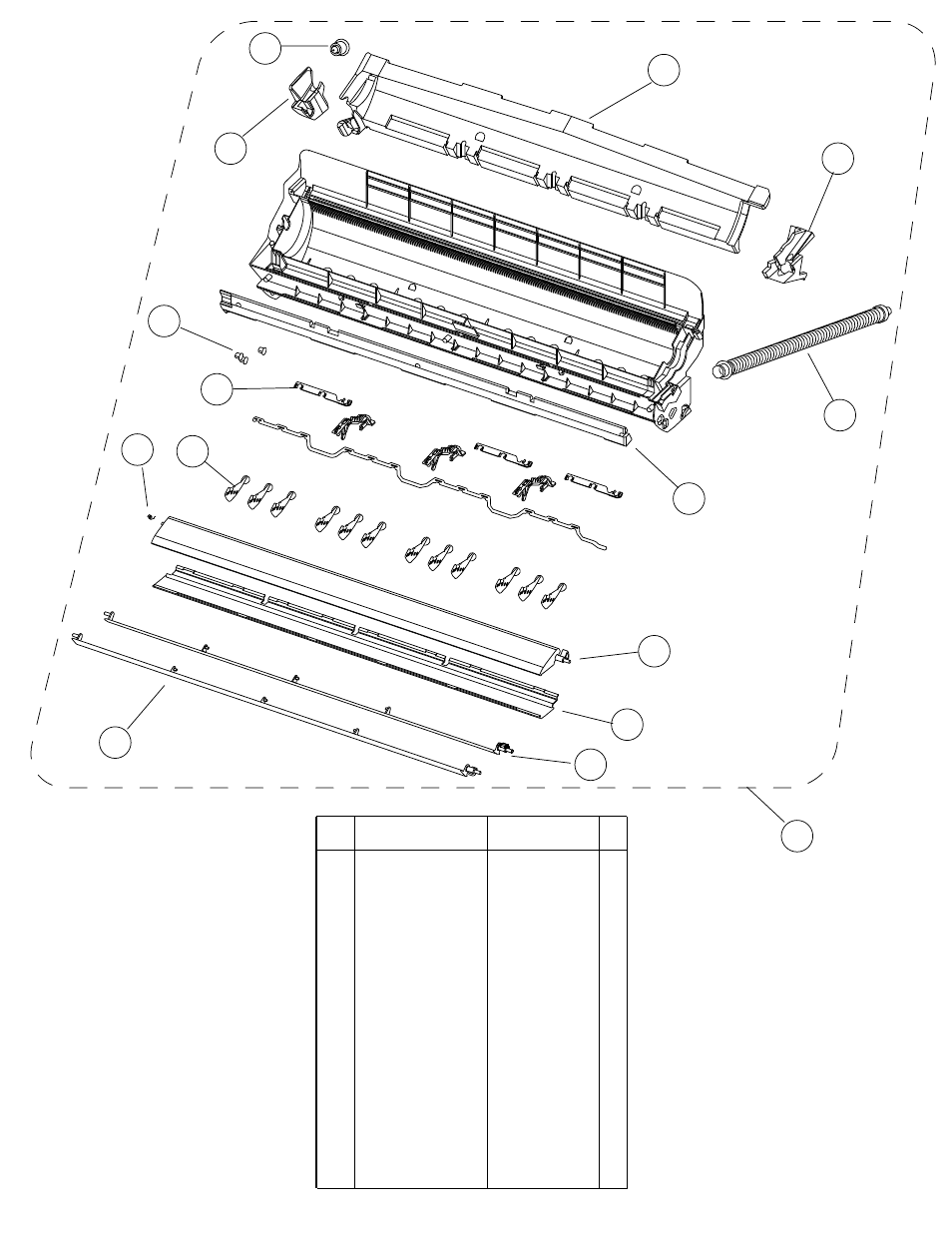

INDOOR UNIT
Casing assy

10

13

14

11

12

15

16

17

18

19

20

21

Ref.

Description

Part number

10

Casing Assy

9315331021

22

R and L Louver

9311997016

23

Spacer B

9312441013

26

Drain Cap

9367677009

11

Casing Cover B

9315016010

12

Casing Cover R

9315018014

14

Casing Cover F

9315019011

15

Drain Hose Assy

9315769015

16

Bush B

9312156016

13

Casing Cover L

9315017017

17

Diffuser U

9315002013

18

Diffuser Z

9315003010

19

Spring C

9314142017

20

Louver U

9315000019

21

Louver Z

9315001016

This manual is related to the following products:

MR36C3F
