Friedrich MR30C3F User Manual
Page 22

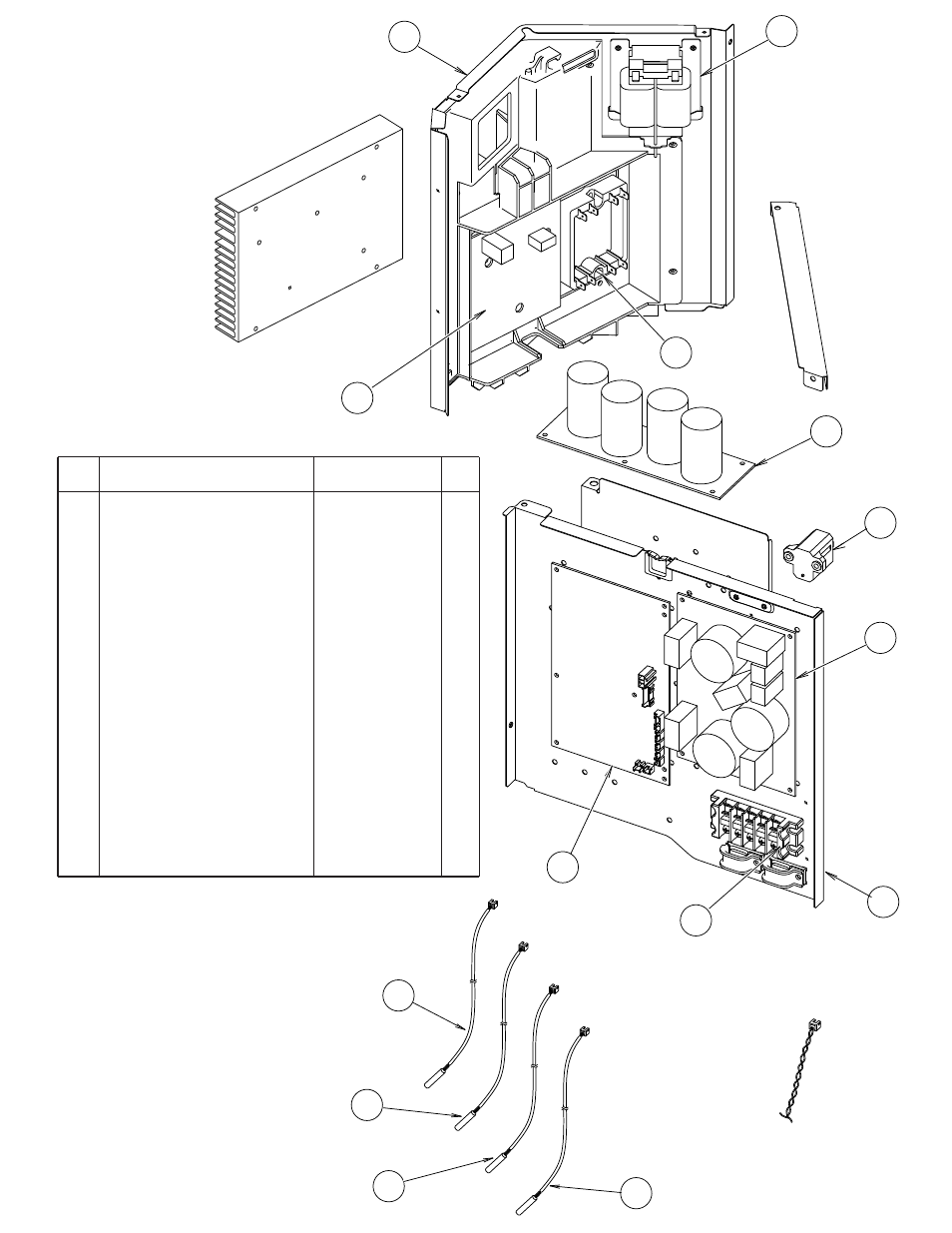

OUTDOOR UNIT
2008.01.09
21
46
47
48
41
39
36
38
42
37
45
35
33
40
31
CONNECTOR : BLUE
CONNECTOR : ORANGE
DISCHARGE TEMP THERMISTOR
OUTDOOR TEMP THERMISTOR
CONNECTOR : GREEN
COMPRESSOR TEMP THERMISTOR
CONNECTOR : RED
HEAT EXCHANGER THERMISTOR
CONNECTOR : RED
PRESSURE SWITCH WIRE
Ref.
31
Case (PCB) Assy
9375316013
33
Case (Inverter)
9375314019
35
ACTPM
9703457012
36
Thermistor
9704265012
37
Controller PCB Assy (30)
37
Controller PCB Assy (36)
9707121087
9707121094
38
Power Supply PCB Assy
(K05CW-0503HUE-FLO)
9707128086
39
Capacitor PCB Assy
(K05FB-0500HUE-P0)
9707257014
40
TR PCB Assy (IPM)
9707125085
41
Choke Coil
9900366018
42
Terminal
9900203023
45
Discharge Thermistor
9704219114
46
Thermistor (Outdoor Temp)
9900378028
47
Compressor Thermistor
9900156022
48
Heat Exchanger Thermistor
9900374013
Part number
Description
