2008.01.09

15

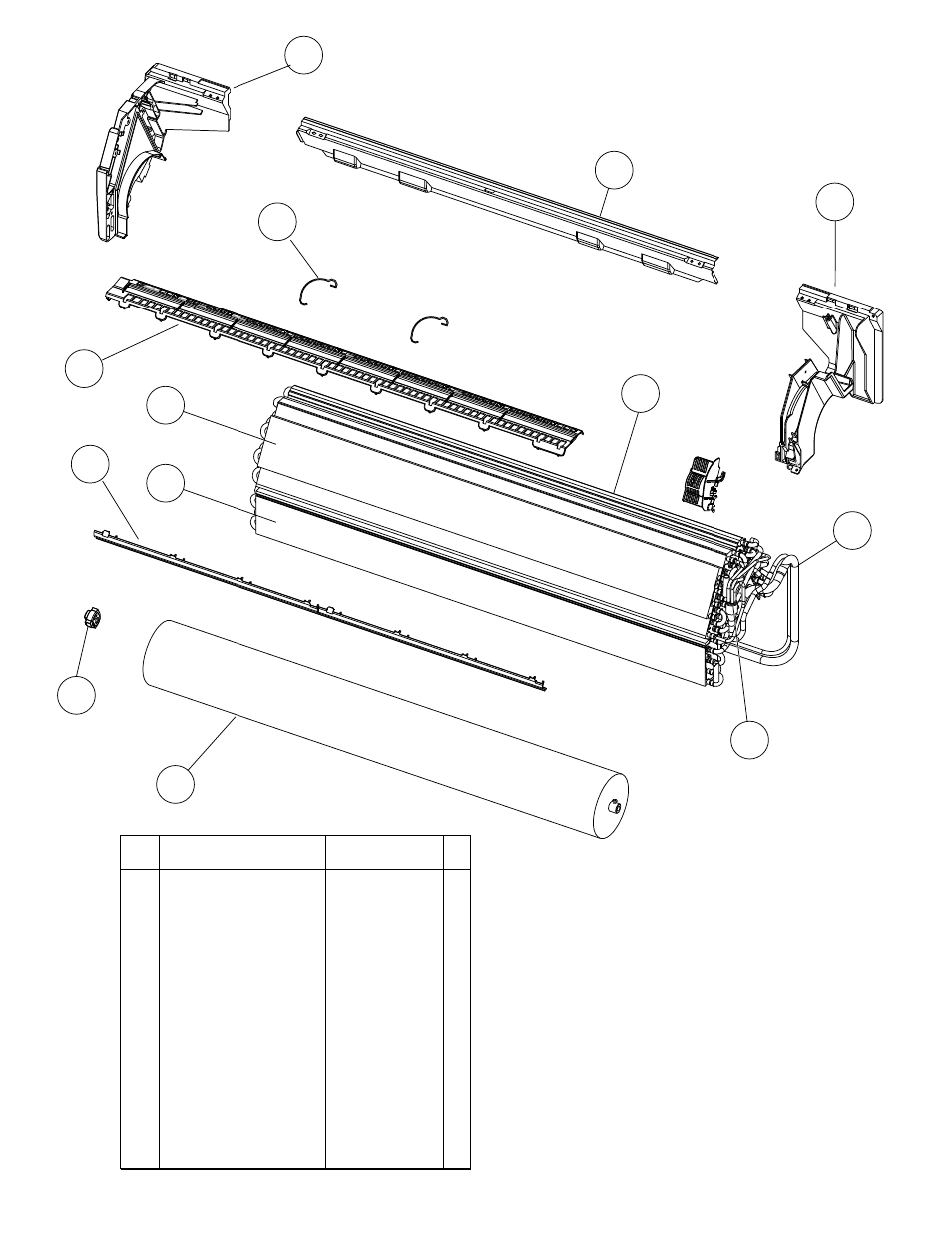

INDOOR UNIT
Evaporator

8

31

35

36

34

29

30

27

25

28

32

33

9

8

Crossflow Fan Assy

9315024015

9

Bearing C Assy

9306628017

27

Evaporator Assy A

9315348012

28

Evaporator Assy B

9315349019

25

Evaporator Assy C

9315789013

29

Connection Pipe Assy

9315355010

30

Distributor Assy

9316988002

31

Water Seal

9315251015

32

Evaporator Holder R

9314994012

33

Evaporator Holder L

9314995019

34

Rear Bracket

9315022011

35

Filter Guide

9315013019

36

Filter Guard

9315411013

Ref.

Description

Part number
