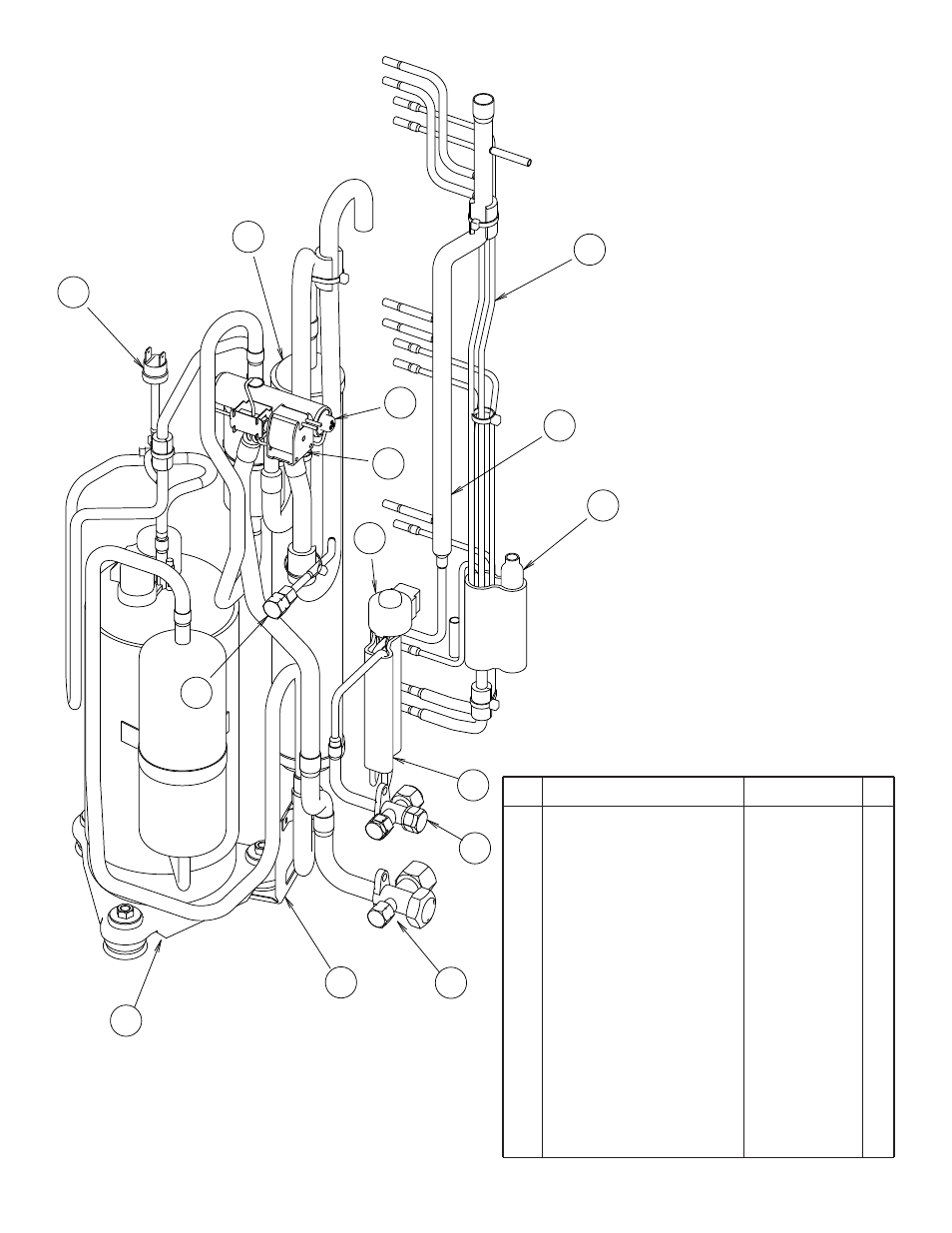

Friedrich MR30C3F User Manual

Page 21

background image

OUTDOOR UNIT

2008.01.09

20

24

21

27

25

12

28

17

18

26

20

19

29

23

22

Ref.

12

Strainer Assy

9372524015

17

3-Way Valve Assy

9372205044

18

3-Way Valve Assy

9372205075

19

Check Joint Assy

9372802038

20

Compressor Assy

9372558126

21

Accumulator

9385005006

22

4-Way Valve

9900164010

23

Solenoid

9900165079

24

Pressure Switch

9900186012

25

Inlet Pipe (Cond) A Assy

9373461067

26

Accumulator Support Assy 313986353804

27

Outlet Pipe (Cond) A Assy 9374266104

28

Expansion Valve Assy

9370947144

29

Expansion Valve Coil

9900057039

Part number

Description

This manual is related to the following products:

MR36C3F
