2.2 Display Indications and Markers
TRAIL
15S
G ( IN )
FTC1
ES
IR
0.5
Range
Range ring interval
Echo trail, AUTO tuning
Echo trail elapsed time,
echo trail time, tuning
indicator
Guard zone
FTC
(rain clutter suppressor)
Echo stretch
Interference rejector
EBL
Range rings
Cursor
Heading marker
Guard zone
area
VRM
1.5
NM
HDG 326.8˚
SP Pulsewidth
Heading (requires
heading data)
CU
OFF
CENTER
Off center
0:00
VRM
range EBL
bearing Cursor
range Cursor
bearing
}
Range and bearing to
cursor or cursor position in
latitude and longitude may
be displayed by pressing
the [HM OFF] key.
Presentation mode
VRM EBL + CURSOR
0.675
NM
232.5˚
R
0.681
NM
308.7˚
R
AUTO

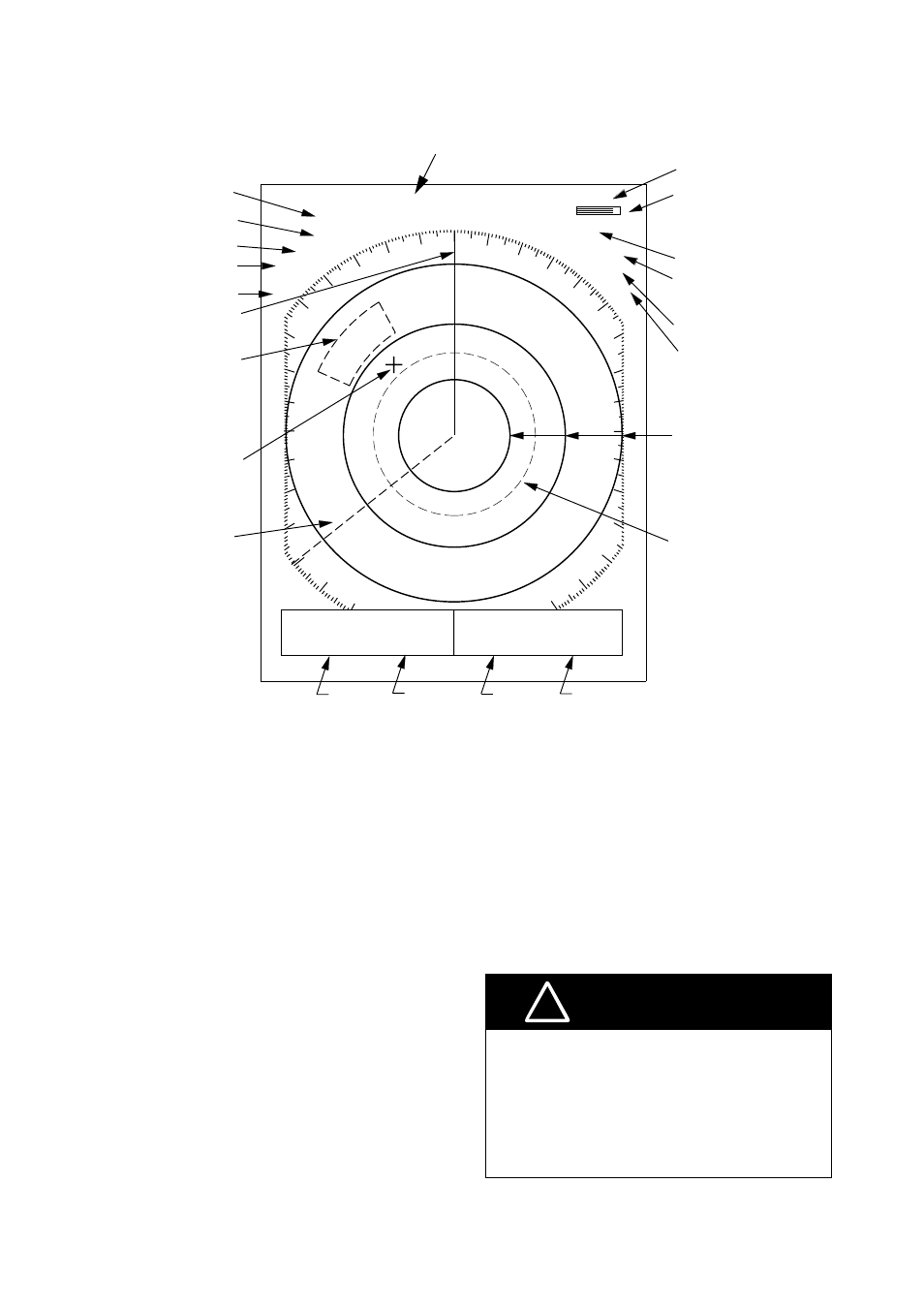

Figure 2-2 Display indications
2.3 Turning the Radar On and
Off
Press the [POWER] key to turn the radar
on or off. The control panel lights and a
timer displays the time remaining for warm
up of the magnetron (the device which
produces radar pulses), counting down
from 1:30.
Note: When the power is reapplied within a
certain amount of time and circuits
remain charged, the warmup process
is skipped—you can transmit without
one and a half minutes st-by time.
The radar antenna emits high frequency radio
radiation which can be harmful, particularly to
your eyes. Never look directly at the antenna
from a distance of less than three feet when
the radar is in operation. Always make sure
no one is near the antenna before turning on
the radar.
WARNING !
