2-1
2. OPERATION
2.1 Control Description
Omnipad
Shifts cursor, VRM
and EBL; selects
items and options
on menu.
Selects display mode;
erases heading error
indication.
Turns power on/off.
Adjusts display brilliance.
Sets radar in stand-by;
transmits radar pulse.
Selects radar range.
Plots targets' trails.
Opens/closes menus.
Turns the VRM on/off. Turns the EBL
on/off.
ENT MENU
ECHO
HM
OFF
RANGE
TONE BRILL
EBL VRM
TRAIL RINGS
GUARD
OFF
CENTER
DISP
MODE
ST-BY
TX
POWER
Erases heading marker;
selects cursor data (Lat/Long, R/B);
outputs cursor position.
Turns the range
rings on/off.
Off centers
the display. Sets guard
zone area.
Adjusts display
tone.
Adjusts GAIN,
STC, A.C RAIN
and FTC.
Registers selection
on menus.

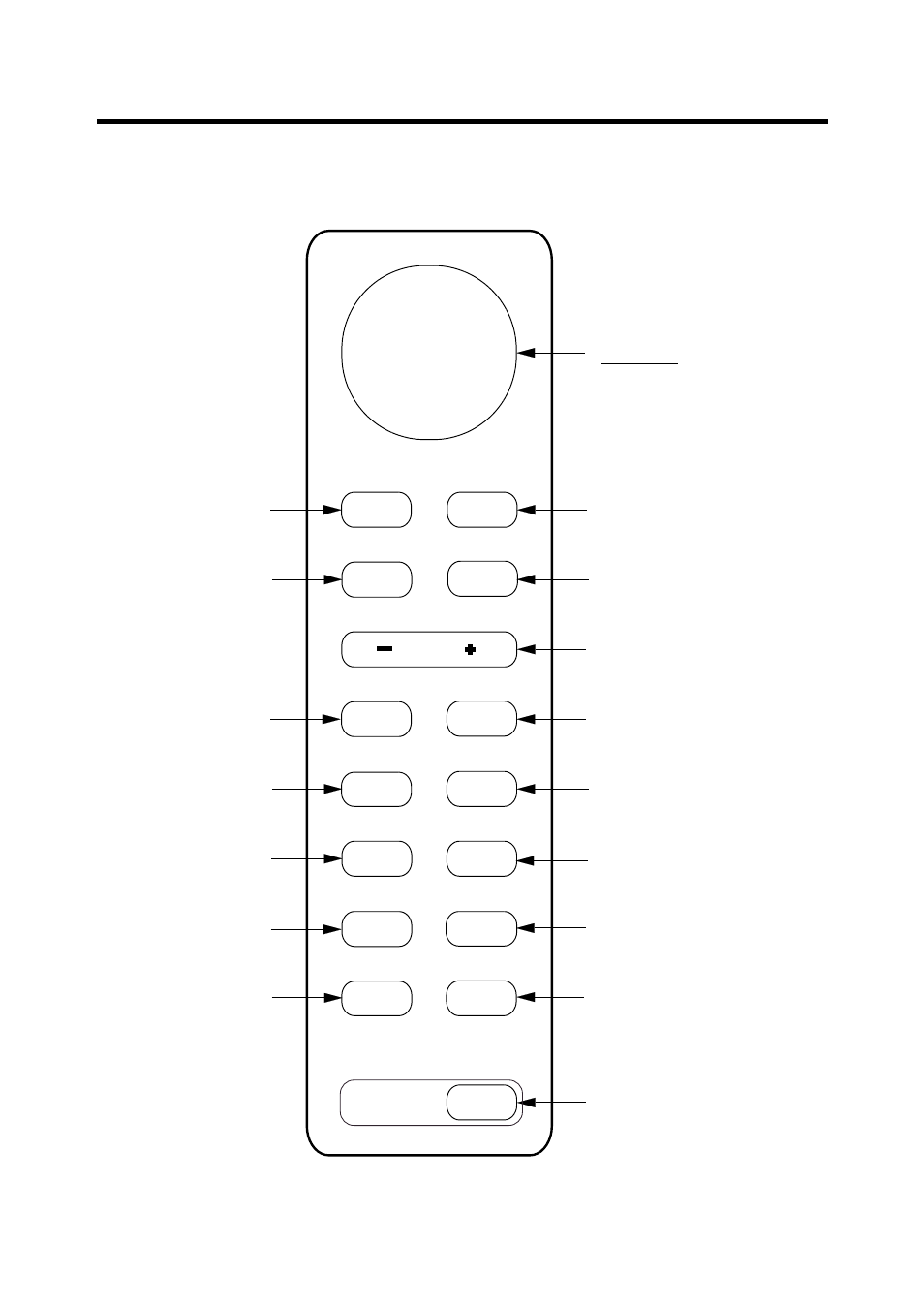

Figure 2-1 Control panel
