5 installation check list – Furuno 851 MARK-2 User Manual
Page 23
2. WIRING
2-6
1
2
3
4
5
6
Solder
Shield
FM-C6FPS001
RD_H
RD_C
SHIELD
SHIELD
TD_H
TD_C
Other Equipment
(Echosounder data not output.)
Echosounder
MODEL 851
MARK-2
OPTION connector
10mm
10mm
10mm 10mm
TD-H
TD-C
RD-H
RD-C
SHIELD

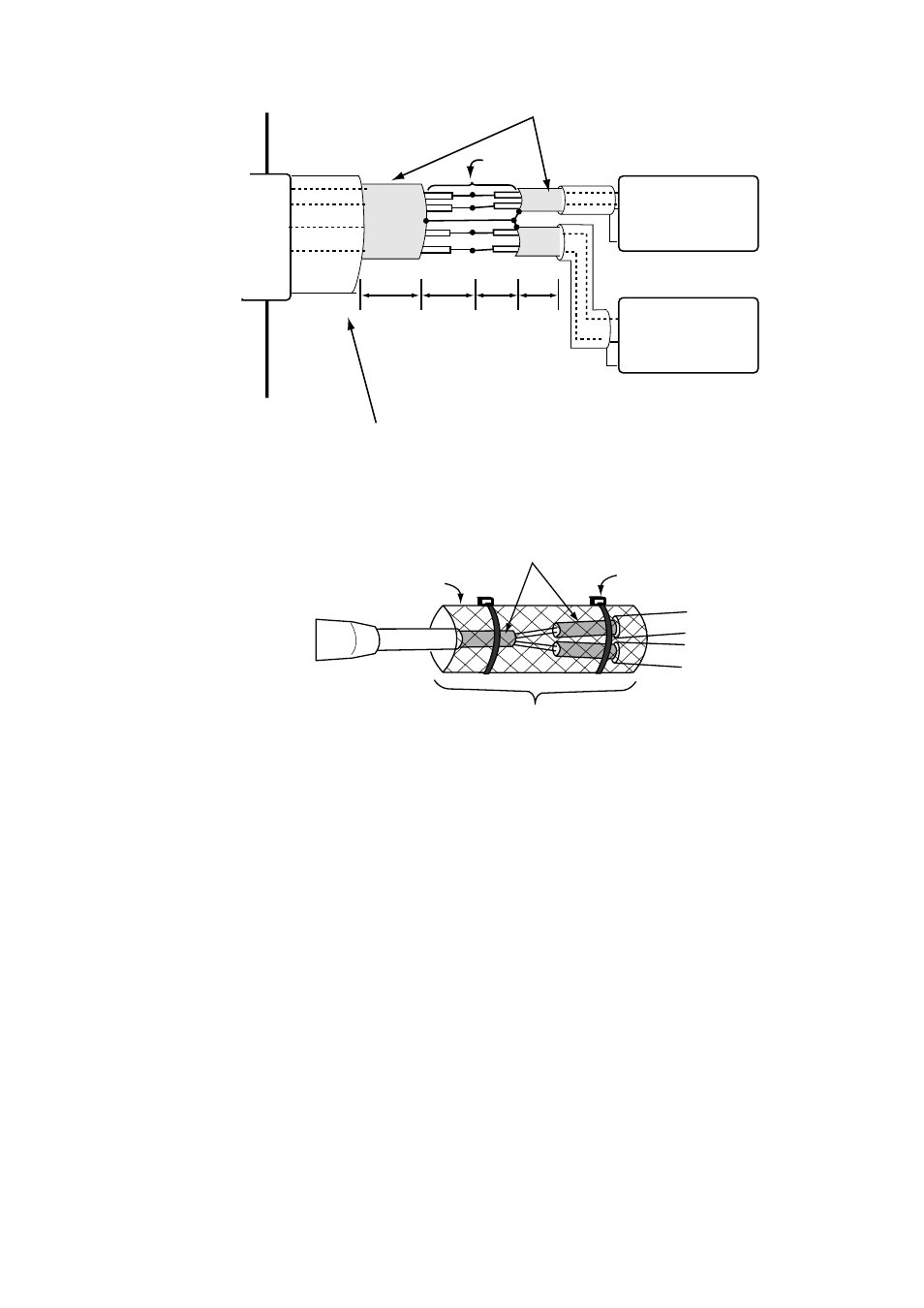

Figure 2-8
4. Cover shield with steel mesh by cable ties.
MODEL851 MARK2
OPTION connector
Cable tie
Steel mesh
Shield
Other Equipment
Echosounder
After tieing, wrap with
self-vulcanizing tape.
Figure 2-9
5. Wrap with self-vulcanizing tape.
2.5 Installation Check List
After completing the installation it is a good idea to check for proper installation.
Follow the checklist below and tick boxes to show proper completion.
!
Is the signal cable secured against a mast or bulkhead?
!
Is the cable gland or cable entry on the deck fully waterproofed?
!
Are the connections to the battery correct polarity?
!
Are all the antenna and display units grounded?
!
Are all connectors at the rear of the display unit fastened securely?
