Furuno 851 MARK-2 User Manual
Page 15
1. MOUNTING
1-9
9. Attach three EMI cores to the signal cable as shown below.
EMI core
RFC-13
Route cable along here.
Lead in
cable here.
J821 VH9P
J822 VH2P
J823 VH4P
J824 NH13P
Clamp

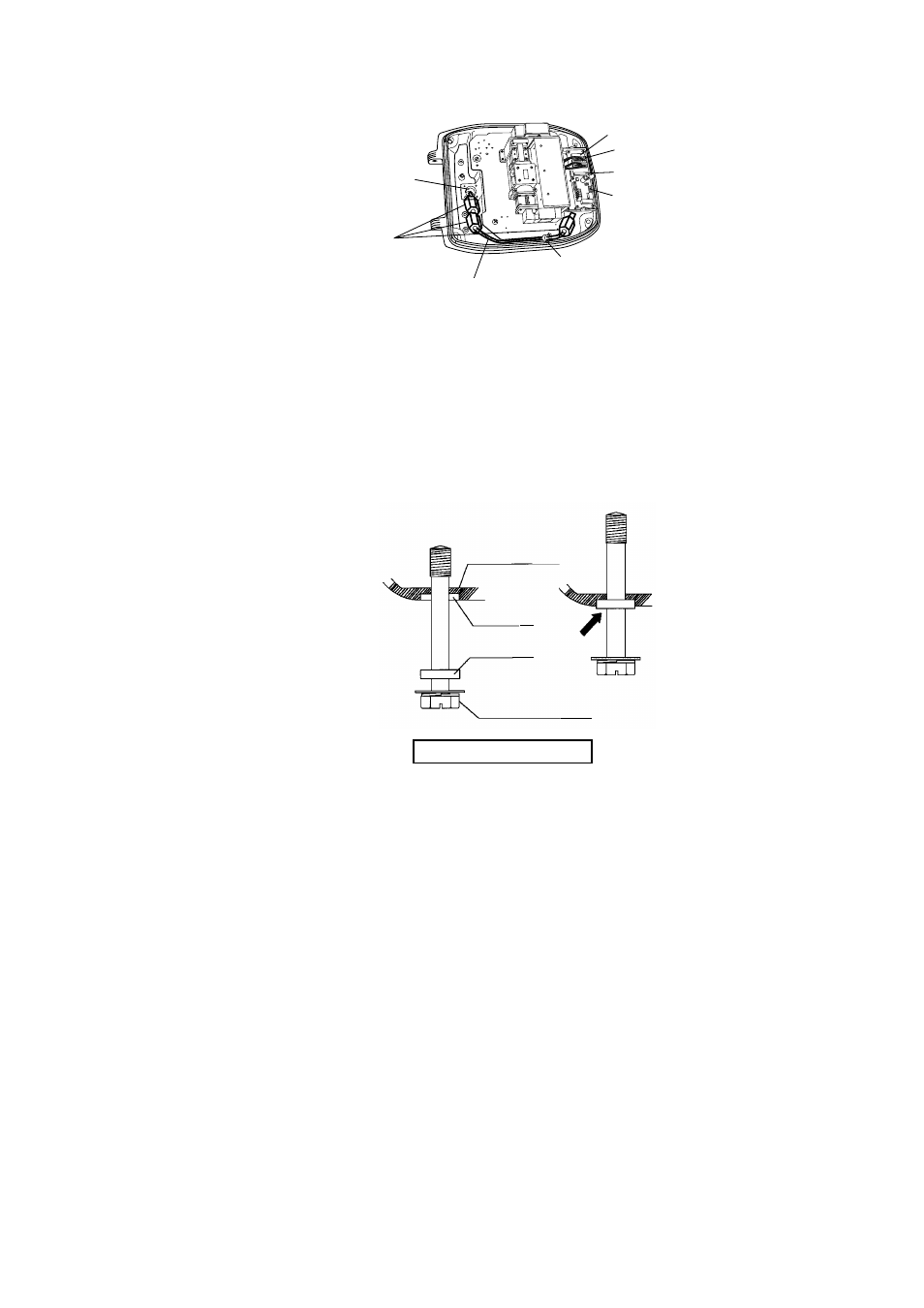

Figure 1-15 Antenna unit chassis, cover opened
10.Fix the signal cable with the cable clamp.
11. Release the stay and close the cover. Loosely fasten the cover fixing screws;
you will have to make some adjustments inside after completion of wiring.
Note: When closing the cover, set the gaskets to grooves in the bottom chassis,
then tighten bolts.
BOTTOM
CHASSIS
GASKET
GROOVE
SCANNER BOLT
Torque :9.8 ± 0.1 N • m
Figure 1-16
