C141-E099-01EN 3 - 15

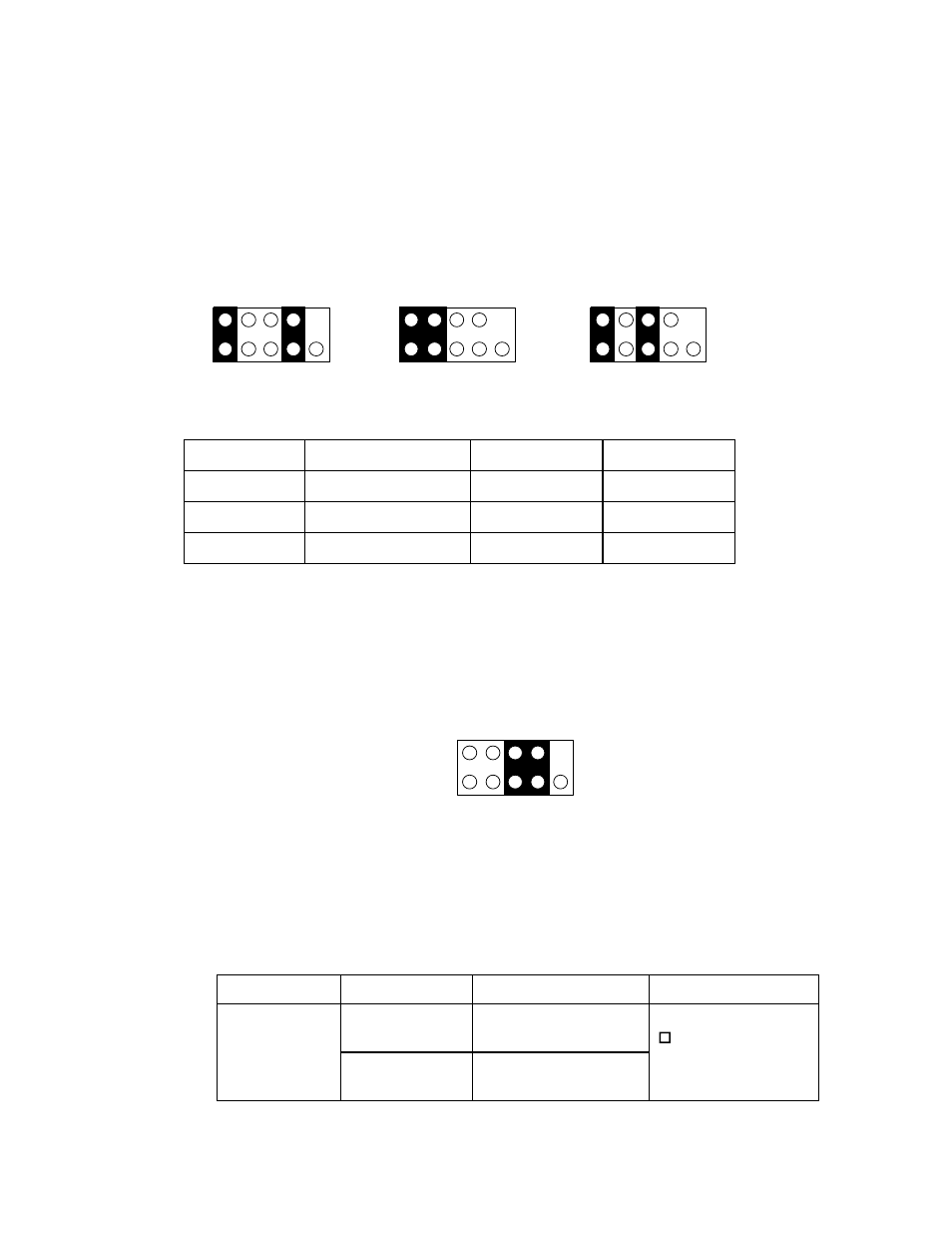

(3) Special jumper settings
(a) 2.1 GB clip (Limit capacity to 2.1 GB)
If the drive cannot be recognized by system with legacy BIOS’s which do not allow single
volume sizes greater than approximately 2.1 GB, the following jumper settings should be
applied.
Slave Device Master Device Cable Select
8 6 4 2
9 7 5 3 1
8 6 4 2
9 7 5 3 1
8 6 4 2
9 7 5 3 1
Model No. of cylinders No. of heads No. of sectors
MPF3102AT 4,092 16 63
MPF3153AT 4,092 16 63
MPF3204AT 4,092 16 63
(b) Slave present
If the slave device does not use the Device Active/Slave Present (DASP–) signal to
indicate its presence, the device is configured as a Master with slave present when the
following jumper settings is applied.
Slave present
8 6 4 2
9 7 5 3 1
Note:
The following Jumper Plug is the recommended specification for jumper settings on this
device.
Parts Name Parts Number Manufacturer Remarks
Jumper Plug IMAS-9251H-GF IRISO ELECTRONICS
CO., LTD 2.54 mm Pitch
0.64 mm
206-A-BLK OUPIIN ENTERPRISE
CO., LTD
