3 Jumper
The CD-ROM drive is configured via jumpers. These determine
how the device will be addressed by the IDE controller. If the
jumper is set to Master, the device works in Master mode, to
Slave in Slave mode. If the jumper is set to CSEL, the device
can be controlled with the help of the CSEL interface signal
(Cable SELect).
4 IDE connection
This socket is used for the connection of a data/control cable.
This 40-pin ribbon cable connects the CD-ROM drive and the
IDE controller.
5 Power supply connection
The power supply cable will be connected to this socket.
Types
There are different types of optical drives:
CD-ROM
drive
CD-RW drive
DVD drive
DVD+RW drive
DVD ± R/RW drive
DVD+R9 or DVD+R DL drive (double layer)
DVD/CD-RW drives

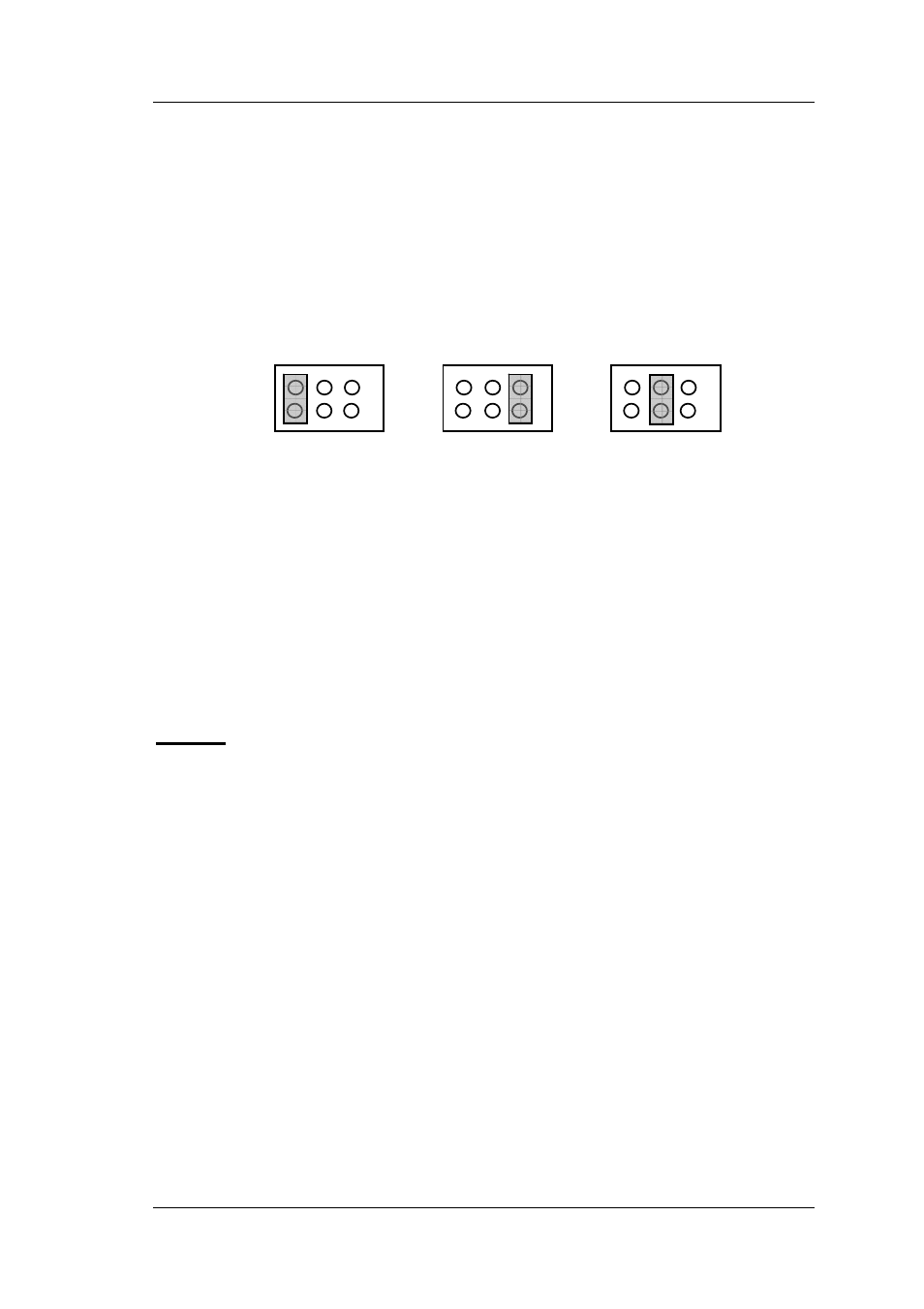

CSEL Master Slave
