Sport Bar

KC

TM

Light Rack -

Front Half

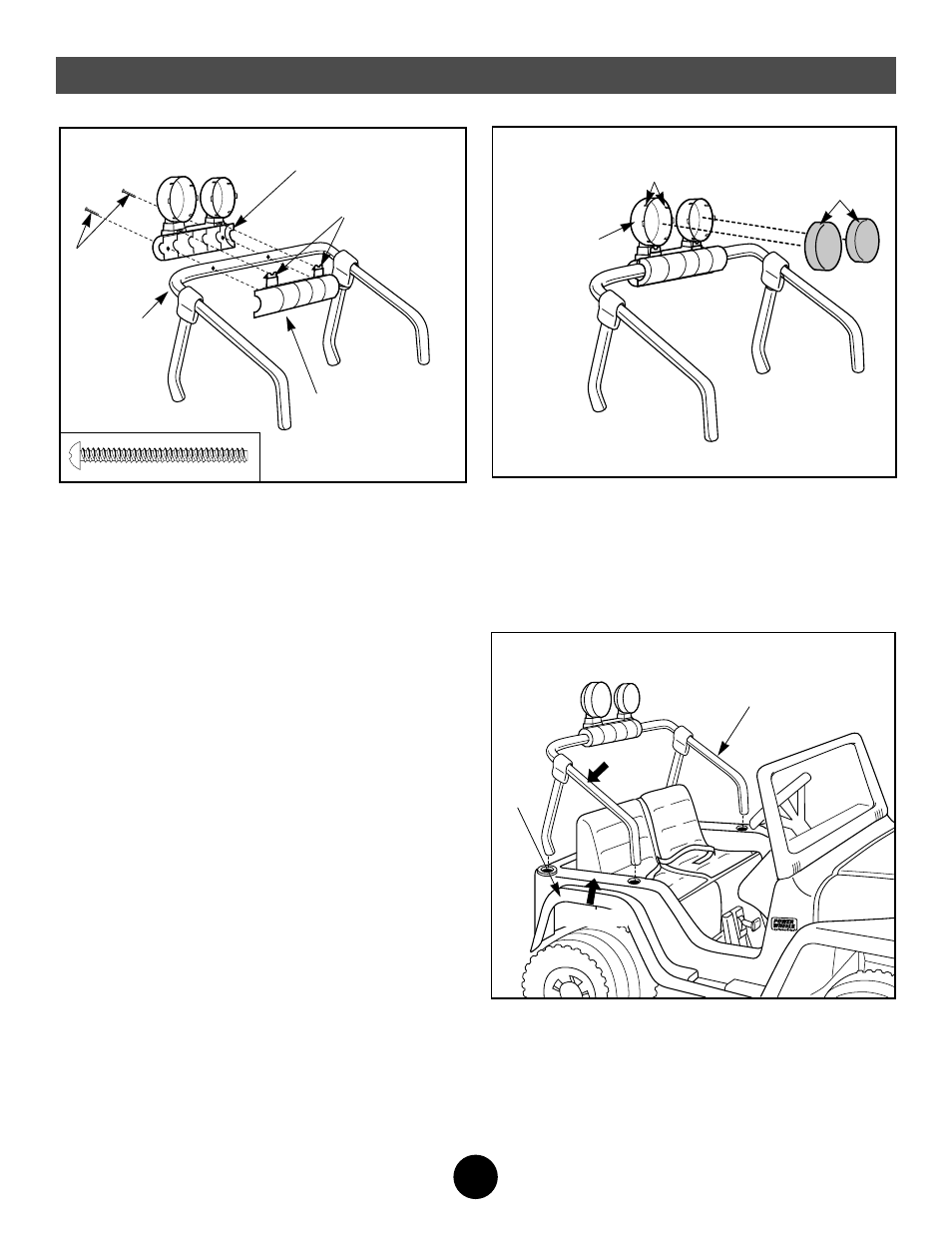

• Position the sport bar with the ends on a flat surface,

as shown.

• Fit and hold the front and back halves of the KC

TM

light

rack against the sport bar. Make sure the two KC

TM

light

rack halves are aligned, and that the screw holes in the
KC

TM

light rack are aligned with the screw holes in the

sport bar.

• Snap the tabs on the front half of the KC

TM

light rack into

the slots below the light housings on the rear half of the
KC

TM

light rack.

• Insert two #6 x1

1

/

2

" screws through the holes in the back

of the KC

TM

light rack, through the sport bar, and into the

front half of the KC

TM

light rack.

• Tighten the screws with a Phillips screwdriver.

Do not over-tighten.

KC

TM

Light Rack - Back Half

Tabs

25

Assembly

• Align the four tabs on the inside of a light cover

with the four slots in one of the light housings on the
KC

TM

light rack. (Make sure the light covers are

positioned with the wide spaced tabs at the top.)

• Push firmly on the light cover to snap it to the housing.

• Repeat this procedure on the other side of the

KC

TM

light rack to assemble the other light.

Light Covers

Housing

Slots

26

16

#6 x 1

1

/

2

"

Screws

27

• Fit the sport bar and sport bar support legs into the holes

in the vehicle body.

• Push down firmly on a sport bar side leg while pulling

up on the side fender to fit the sport bar into the
vehicle body.

• Repeat this procedure on the other side of the

vehicle body.

Sport Bar

Side
Fender

PULL HERE

PUSH
HERE
