10

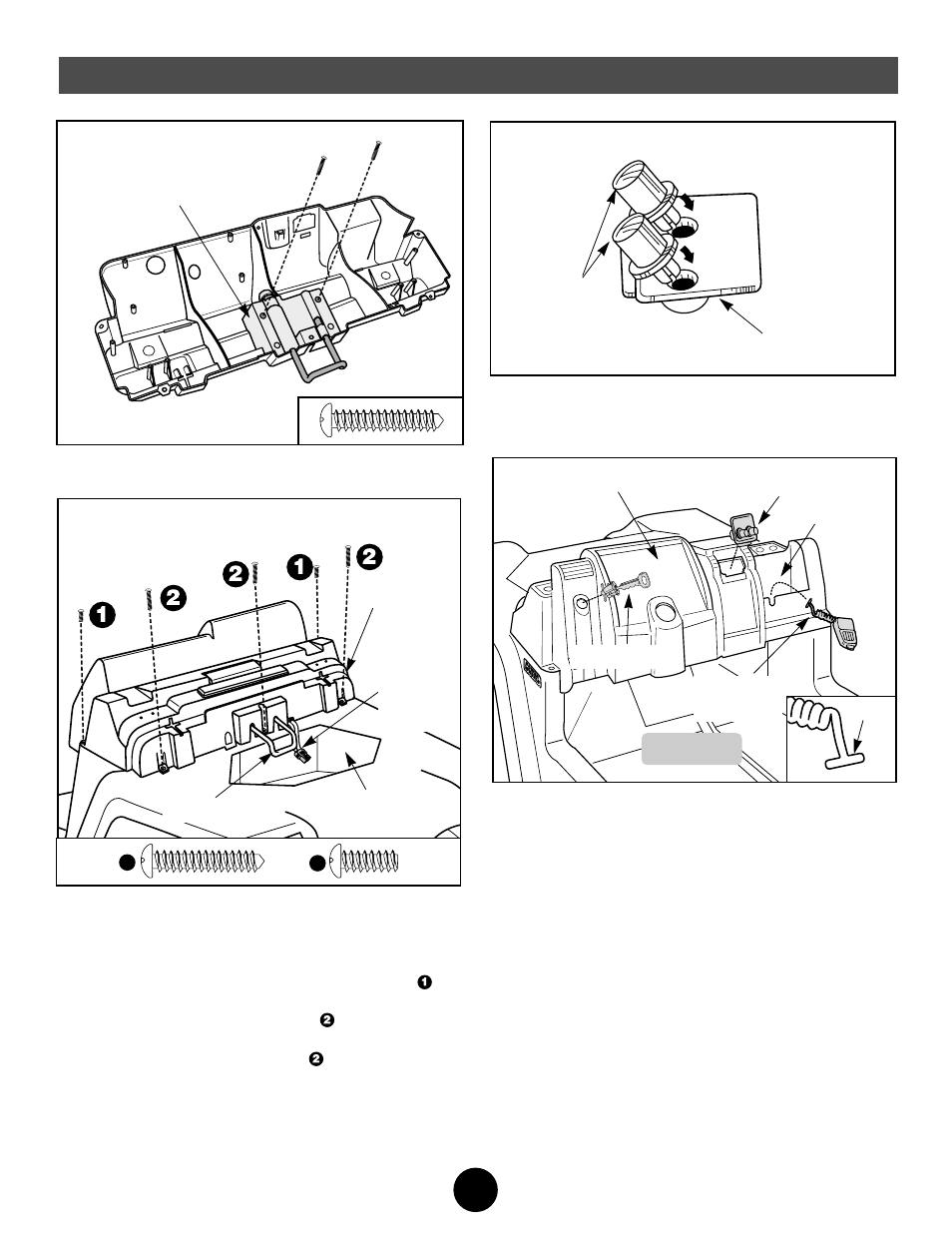

Assembly
5
• Snap the knobs into the knob plate.
Note: Gently squeeze the tabs on the knobs together
before inserting the knobs into the knob plate.
Knob Plate
Knobs
Dash Knob Plate
Pocket
Key Assembly
Microphone
Cord
• Bend the end of the microphone cord so that it forms a “T”.
• Insert the end of the microphone cord through the square
opening in the dash pocket. Pull gently on the cord to
make sure it is secure in the dash.
• Hook the microphone onto the “U” slot on the dash pocket.
• Position the bottom edge of the knob plate in the opening
in the dash.
• Snap the top of the knob plate into the dash.
• Snap the key assembly into the dash.
T-End
2 1
Battery
Compartment
Dash
• Position the dash on the vehicle body.
• Make sure the motor harness connector wire is through
the groove in the dash.
• Insert a #10 x 1 /
2
" screw through each of the two corner
dash tabs nearest to the passenger compartment .
• Insert a #10 x 1" screw through the two dash tabs
nearest to the battery compartment .
• Insert a #10 x 1" screw into the hole in the center of the
dash, near the battery retainer clip .
• Tighten the screws with a Phillips screwdriver. Do not
over-tighten.
Battery Clamp
Motor
Harness
Connector
Wire
3
4
Dash View
2
Battery
Clamp Unit
• Insert two #10 x 1" screws through the holes in the
battery clamp unit and into the pegs in the dash.
