8
9

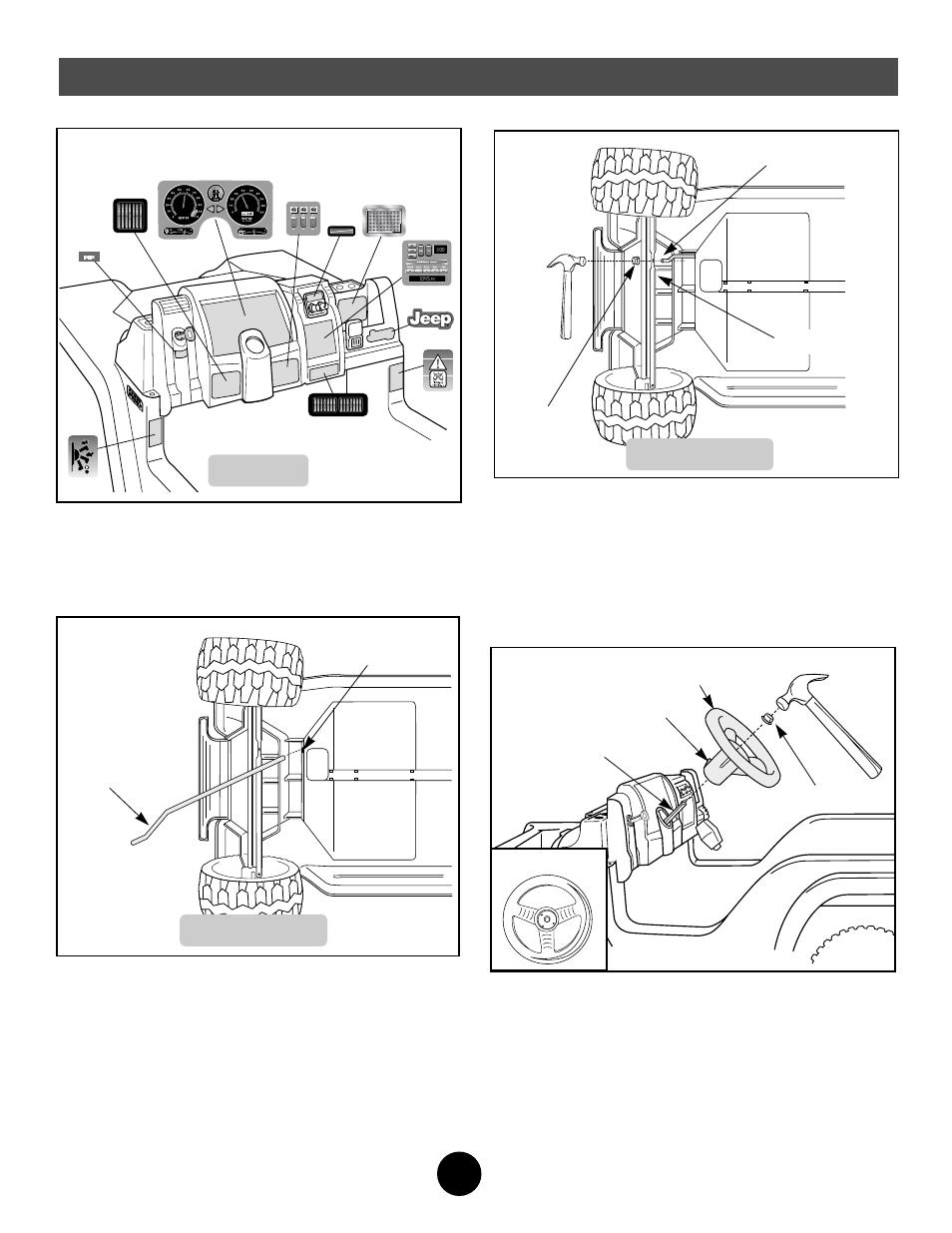

• Insert the end of the steering column through the hole in
the steering rod.
• Fit a cap nut onto the end of the steering column.
• While supporting the steering column, tap the cap nut
with a hammer to secure it on the steering column.
Helpful Hint! You may want the help of another person
to support the steering column while you tap the cap nut
with the hammer.
Steering Rod
Cap Nut
End of Steering Column
Bottom View
• Turn the vehicle body upright.
• Position the steering wheel so that the spokes form a
“Y” as shown. The tab on the steering wheel stem
should face up.
• Fit the steering wheel onto the steering column.
• Fit a cap nut onto the end of the steering column.
• Tap the cap nut with a hammer to secure it on the
steering column.
Helpful Hint! You may want the help of another person
to support the steering column while you tap the cap nut
with the hammer.
Steering Wheel
Cap Nut
Steering
Column
“UP”
Tab
7
Steering
Column
Hole
Bottom View
• Wipe the steering column with a paper towel to remove
any excess lubricant.
• Turn the vehicle body on its side.
• Insert the straight end of the steering column up through
the hole in the vehicle body wall and out through the
hole in the dash.
11
HI LO KC
COOL HEAT
Dash View
30
13
3
6
12
4
11
5
25
16
24
6
• Before applying labels to the dash, wipe the dash with a
clean, dry cloth to make sure it is free of dirt and oils.
Make sure your hands are clean and dry.
• Apply labels as shown. For best results, avoid
repositioning a label once it has been applied.
Assembly
