23

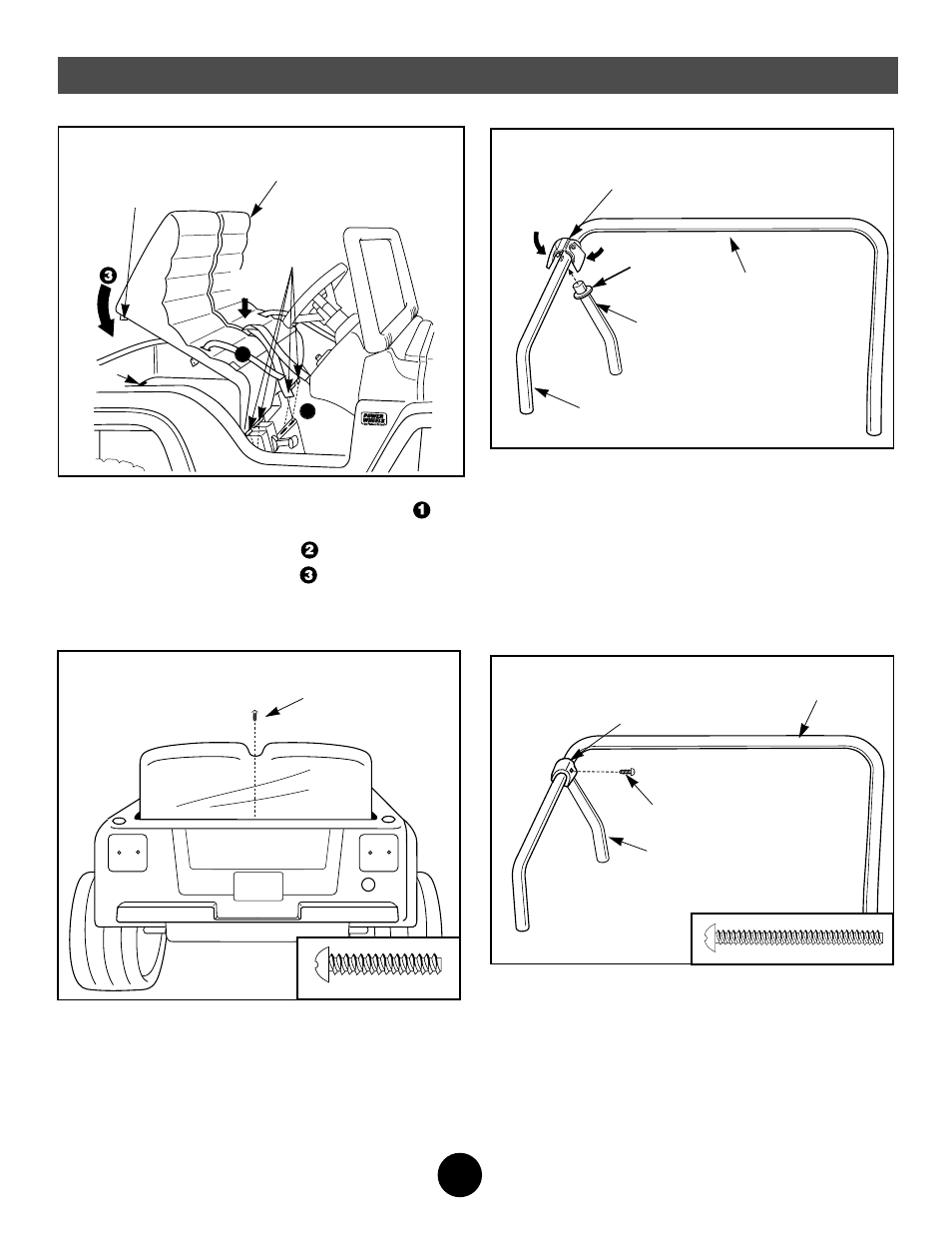

• Using safety scissors, remove the sport bar
brackets from the plastic connector. Dispose of the
plastic connector.
• Position the sport bar upright.
• Position a sport bar bracket onto one of the sport bar
side legs, as shown.
• Fit the ring on a sport bar support against the end of the
sport bar bracket.
• Fold the sport bar bracket over the sport bar to close it
around the sport bar and sport bar support.
Sport Bar
Sport Bar Bracket
Sport Bar Support
Side Leg
Ring
24
• Insert a #6 x 1 1 /
2
" screw into the sport bar bracket
as shown.
• Tighten the screw with a Phillips screwdriver.
Do not over-tighten.
• Repeat steps 23 and 24 to attach the other sport bar
support to the other sport bar side leg.
Sport Bar Bracket
Sport Bar
Sport Bar Support
#6 x 1 1 /
2
" Screw
Assembly
15
21
• With the seat at an angle, insert the tabs on the front
edge of the seat into the slots in the foot-well wall .
• Push down firmly on the edge of the seat above each
tab to snap the tabs into the slots .
• Rotate the back of the seat down to snap the seat
back tabs into the slots in the vehicle body. Push down
firmly on the seat back.
Seat
Tabs
Seat Back Tabs
Slot
1
2
PUSH
HERE
22
#8 x 1" Screw
• Insert a #8 x 1" screw into the rear of seat as shown.
• Tighten the screw with a Phillips screwdriver.
Do not over-tighten.
